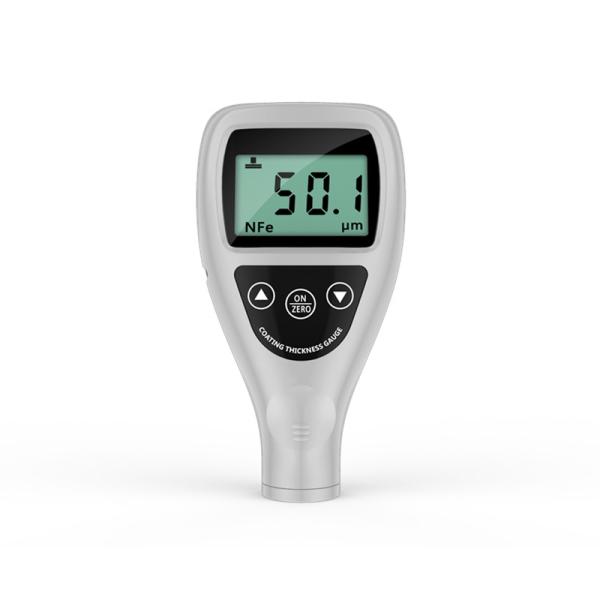

FCC Car Paint Thickness Gauge Integrated Coating Tester With AAA Battery
FCC Car Paint Thickness Gauge Integrated Coating Tester With AAA Battery
Specifications
Brand Name :
LEEB
Model Number :
Leeb252
Certification :
CE, FCC EAC & ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Based on quantity
Payment Terms :
T/T, PayPal, Western Union, L/C
Supply Ability :
500 sets per month
Delivery Time :
In 7-10 work days
Packaging Details :
Equipment Box
Name :
Paint thickness gauge
Application :
On Ferrous and Non-Ferrous metal
Principle :
Magnetic & Eddy Current
Environment :
No strong magnetic field
Power supply :
AAA battery
Net Weight :
120g
Description

FCC Car Paint Thickness Gauge Integrated Coating Tester With AAA Battery

High Accuarcy Easy And Quick Operation Integraded Coating Thickness Gauge With AAA battery

Functions & Features

● High accuarcy with new system.
● Integraded with Fe and NFe in one probe.
● Easy operation.
● One specimen Calibration.
● Automatic back-light.
● Switch off automatically or manually.
Measuring Principle
1) Magnetic method (F Probe)
Measuring Non-magnetic coatings on magnetic substrates (such as aluminum, copper, rubber coatings on steel, iron, alloy and hard magnetic steel substrates).
When the probe contact with cover,measuring probe and magnetic metal matrix form a closed magnetic circuit, as a result of the existence of a
nonmagnetic layer, make the magnetic circuit magnetic resistance change, can be derived by measuring the change the thickness of coating.
2) Eddy current method (N Probe)
Measuring Non-conductive coatings on Non-magnetic basis metals (such as enamel, plastic, rubber, paint coatings on copper, aluminum, zinc, tinsubstrates).
By using high frequency alternating current in the coil produces an electromagnetic field,when the probe contact with cover,Metal substrate eddy current is produced,and feedback to a coil in a probe,Derived by measuring the size of the feedback effect of the coating thickness.


Technical Parameters

Technical Parameters
Model No. Leeb252
Measuring principle Fe & NFe
Measuring range (µm) 0~1250μm or 0～50mil
Accuracy ±(3%H+1) μm; H refers to the thickness of testing piece
Minimum resolution (µm) 0.1μm ( 0-99.9μm); 1μm ( 100-1250μm)
Min curvature of the min area (mm) Fe: Convex1.5 Concave25 / NFe: Convex3 Concave50
Temperature 0~40℃
Min thickness of substrate (mm) 0.5
Environment No strong magnetic field
Dimensions 130*70*39 mm
Power supply AAA battery
Standard Configuration
Main Machine, Calibration specimens*5, FE/NFE Substrate, Users’ Manual, Qualified Certificate, Packing list, Warranty card

Test
Power on the gauge. Press the probe steadily on a coating layer to be measured. The reading on the display is the thickness of the coating layer.
To take the next measurement, please lift the probe to more than 3 centimeter and then repeat the step above .
Note: Based on the testing principle of Magnetic / Eddy current ( Fe / NFe) , the speed of pressing the probe on the coating layer should be appropriate. If too slow, it will cause man-made testing errors.
Unit conversion
Switch between μm / mil : Long-press the power key (about 6 seconds) till "UNIT " showed on the display.
Test mode conversion
Switch between Single / Continuous: Long-press the power key (about 8 seconds) till SC showed on the display.
Note: Under Single test mode, the symbol FCC Car Paint Thickness Gauge Integrated Coating Tester With AAA Batteryappears only during measurement.
Under Continuous test mode, the symbol FCC Car Paint Thickness Gauge Integrated Coating Tester With AAA Batteryappears all the time.
Power off
1, 2x1.5V AAA alkaline battery.
2, Long-press the power key for 2 seconds to turn off.
The gauge automatically turns off if no operation within 60 seconds.
3, Battery replacement
When the battery voltage less than approx. 2.3V , the battery symbol FCC Car Paint Thickness Gauge Integrated Coating Tester With AAA Batterywill appear on the display.
Then, slide the Battery Cover away from the gauge and remove the batteries. Install new batteries correctly into the case.
Note: If the gauge is not to be used for any extended period, remove batteries off.

Paint on automobile
FCC Car Paint Thickness Gauge Integrated Coating Tester With AAA Battery

Anodic oxidation on NFE

FCC Car Paint Thickness Gauge Integrated Coating Tester With AAA Battery
