JJG112 Universal Hardness Tester Vickers Brinell Rockwell Testing Machine
JJG112 Universal Hardness Tester Vickers Brinell Rockwell Testing Machine
Specifications
Brand Name :
LEEB
Model Number :
LHUS-187.5
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Based on quantity
Payment Terms :
T/T, PayPal, L/C, Western Union
Supply Ability :
400 sets per month
Delivery Time :
15 work days
Packaging Details :
Plywood Box
Name :
Universal Durometer
Carried Standard :
ISO 6507-2、ISO 6508-2 、ISO 6506-2 、JJG112、JJG150
Max Height of Specimen :
Rockwell:175mm, Brinell:115mm, Vickers:115mm
Magnification :
37.5X, 75X
Duration time :
2-60s
Overall Dimension (mm) :
520*240*700
Description

JJG112 Universal Hardness Tester Vickers Brinell Rockwell Testing Machine


Rockwell Brinell Vickers Durometer Multi-Function Electric Universal Hardness Tester


Functions & Features

● 3 types including Brinell, Rockwell, Vickers three kinds of test methods
● 7 level of force, multi-function, can satisfy user's multi-purpose requirements
● Rockwell reading in dial pointer, Brinell/Vickers lookup in table
● Automatic loading and unloading of test force
● Wide utilization, convenient operation
Application
● Widely used in the Rockwell, Brinell, and Vickers hardness test of Ferrous and nonferrous metals
● Castings, annealed steel, normalized steel, non-ferrous metals and soft alloys ( Brinell )
● Heat-treated materials ( Rockwell )
● Nitriding layer, ceramic, sheet, foil, plated layer, and minute parts ( Vickers )


Technical Parameters

Technical Parameters
Model LHUS-187.5
Carried Standard ISO 6507-2,ISO 6508-2 ,ISO 6506-2 ,JJG112,JJG150
Testing force Rockwell: 60kgf(588N), 100kgf(980.7N), 150kgf(1471N)
Brinell: 31.25kgf (306.5N), 62.5kgf (612.9N), 187.5kgf (1839N)
Vickers: 30kgf (294.2N), 100kgf (980.7N)
Test Scale Rockwell: HRA, HRB, HRC, HRD,HRE, HRF,HRG,HRH,HRK
Brinell: HBW2.5/31.25, HBW2.5/62.5,HBW5/62.5, HBW2.5/187.5
Vickers: HV30, HV100
Max Height of Specimen Rockwell:175mm, Brinell:115mm, Vickers:115mm
Magnification 37.5X,,75X
Duration time 2-60s
Power supply AC220V+5%,50-60Hz
Overall Dimension (mm) 520*240*700
Net weight About 80Kg


Standard Accessories

Standard Accessories
Name Quantity Name Quantity
Diamond Rockwell Indenter 1 1.5875mm Ball Indenter 1
Diamond Vickers Indenter 1 Brinell φ2.5,φ5 mm Ball Indenter 2
Hardness block 5 Large, Medium, “V” shaped Testing Table 3
Measurement microscope 1 Sliding Testing Bench 1
Obejective 2 Floodlight
Power Cable 1 Fuse 2A 1
Operation Manual 1 Product Certificate & Warranty 2


Pictures

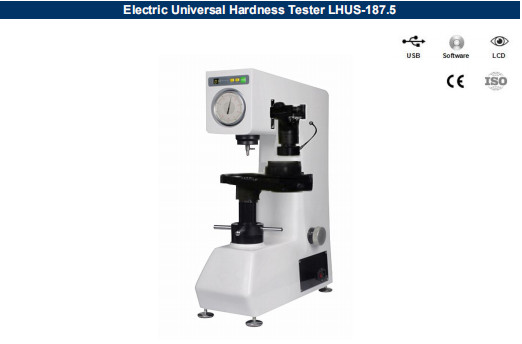

JJG112 Universal Hardness Tester Vickers Brinell Rockwell Testing Machine
