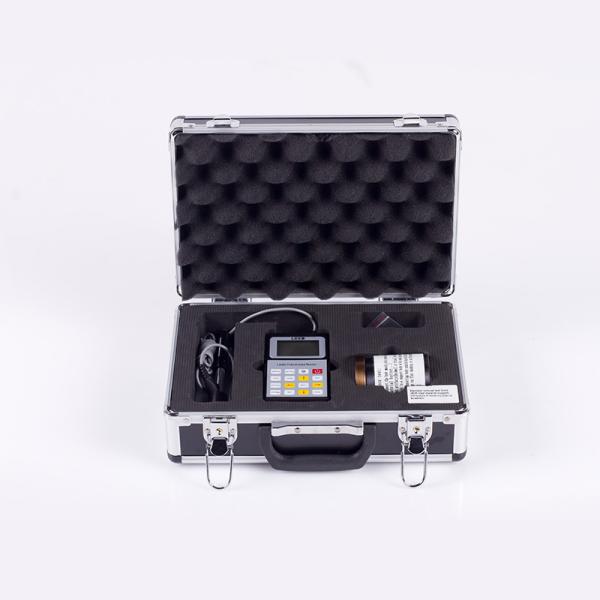

Dynamic Portable Leeb Hardness Tester Direct Calibration On HL HRC HB
Dynamic Portable Leeb Hardness Tester Direct Calibration On HL HRC HB
Specifications
Brand Name :
LEEB
Model Number :
Leeb110
Certification :
CE, FCC, EAC, ISO
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Based on quantity
Payment Terms :
T/T, L/C, Western Union, paypal
Supply Ability :
1000pcs per month
Delivery Time :
7 work days
Packaging Details :
Equipment box
Name :
Hardness tester,
Hardness scales :
HL, HRC, HRB, HV, HB, HS
Standard :
ISO, ASTM, GB/T
Accuracy :
Within ±6HLD/ ±1.5HRC
Memory :
350 groups
Display :
Digital, LED Screen
Dimensions :
129×68×25mm
Theory :
Leeb, Dynamic Test
Application :
Metal
Calibration :
On HL, HB, HRC Blocks
Shell :
Light Plastic
Warranty :
1 Year
Description

Dynamic Portable Leeb Hardness Tester Direct Calibration On HL HRC HB

Digital Portable Leeb Hardness Tester Leeb110

Features:

  • Freely switch to hardness scales HRB, HRC, HV, HB, HS,HL
  • Automatically identify 7 types of Impact devices for special application
  • Direct calibration on HL,HRC,HB.
  • Large LCD screen with back-light, showing all functions and parameters
  • Upper and lower limit and sound alarm
  • Conversion to tensile strength (U.T.S)
  • Test at any angle, even upside down

Measuring Materials:

  • Steel and cast steel, gray cast iron, nodular cast iron, cast aluminum alloy, alloy tool steel, stainless steel, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.

Application Fields

  • Mechanical or permanent assembly components have been installed, the test space is very narrow, requires the original record regular test results
  • Large work-piece within a wide range of more rapid test measurement site
  • The bearings and other parts, heavy work-pieces, metal material, pressure vessel, failure analysis of turbine generator unit and equipment

Technical Specification

Model Leeb110
Measuring Range

(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,

(30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness parameter HL, HRC,HRB, HS,HB,HV
Accuracy ±6HLD/ ±1.5HRC
Memory 350 groups
PC Connection No
Battery 2 AAA
Operating Temperature -20℃~+60℃
Dimensions 129×68×25mm
Impact Devices Fixed D
Weight 230g
Standard Delivery

Main unit,Impact Device type D,Operation manual,

Small supporting ring,Cleaning brush,

Calibration block,Certificate.
Optional Accessories Shaped support ring
Direct calibration on HL, HRC, HB
Dynamic Portable Leeb Hardness Tester Direct Calibration On HL HRC HB
Dynamic Portable Leeb Hardness Tester Direct Calibration On HL HRC HB
