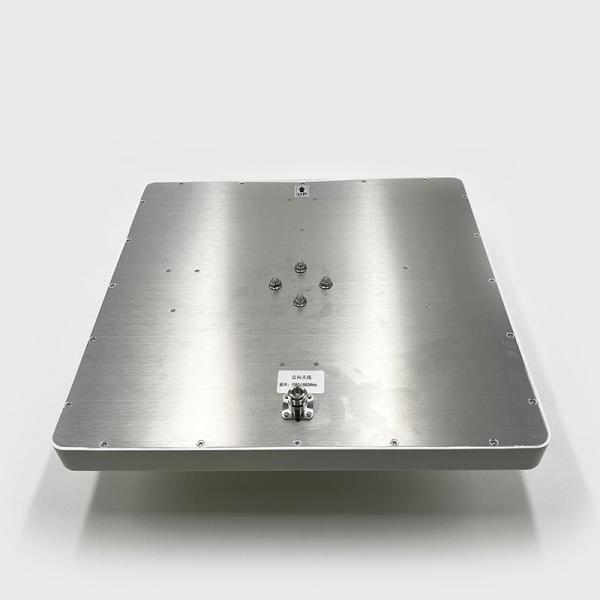

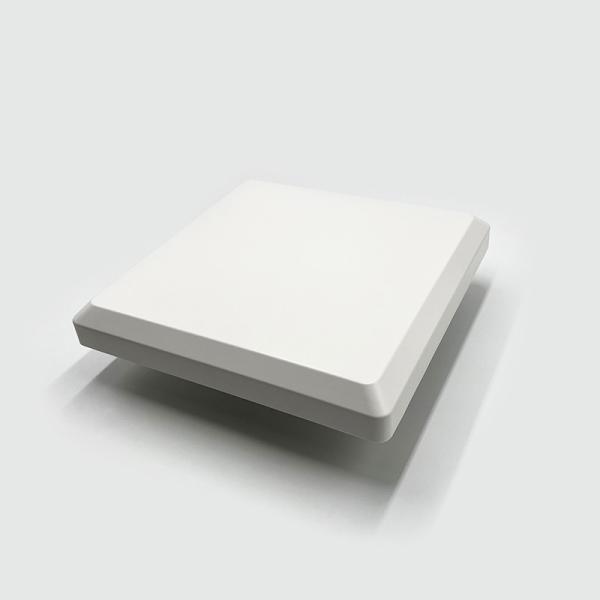

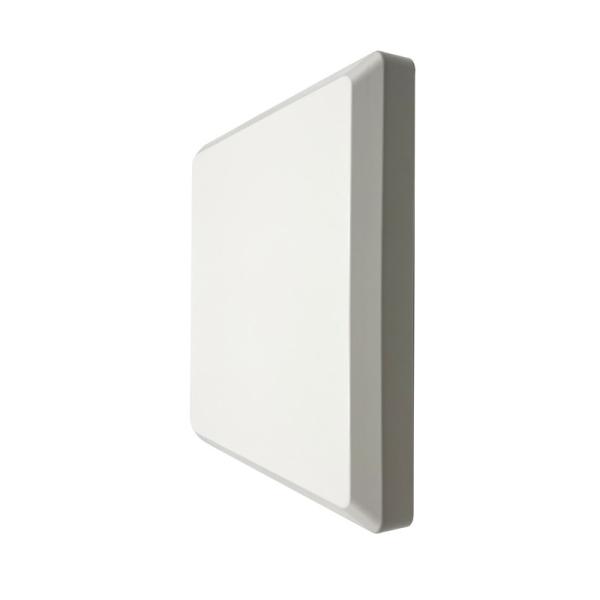

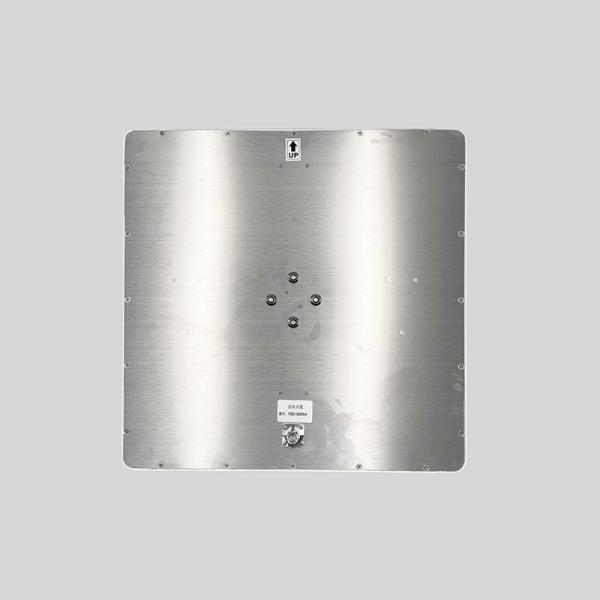

1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11007-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
1350-1550MHz
VSWR :
<2.0
Peak Gain :
15dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 1350-1550MHz
S.W.R. <= 2.0
Antenna Gain 15dBi
Polarization V
Horizontal Beamwidth 35±5°
Vertical Beamwidth 30±5°
F/B >20dB
Impedance 50Ohm
Max. Power 100W
B. Material & Mechanical Characteristics
Connector Type N Female connector
Dimension 390*390*50mm
Radome material ABS
Weight 2.6Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
1350 15.7
1375 15.8
1400 15.8
1425 15.5
1450 15.5
1475 15.3
1500 15.5
1525 15.2
1550 15.5
2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
1350MHz 1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV 1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV 1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
1450MHz 1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV 1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV 1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
1550MHz 1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV 1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV 1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
