5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted
5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted
5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted
5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted
5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted
5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted
5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted
5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted
5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted
5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10923-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
2400-2500/5150-5850MHz
VSWR :
<2.0
Peak Gain :
12/15dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 2400-2500/5150-5850MHz
S.W.R. <= 2.0
Antenna Gain 12/15dBi
Polarization Vertical
Horizontal Beamwidth 45±5°/20±5°
Vertical Beamwidth 45±5°/20±5°
F/B >29dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type

N Female connector
Dimension 223*194*46mm
Radome material ABS
Weight 0.9Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

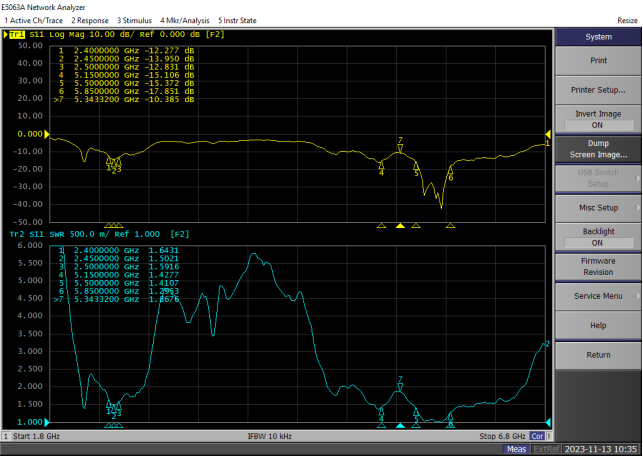

2.1 VSWR
5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
2400 11.0
2410 11.0
2420 11.1
2430 11.2
2440 11.1
2450 11.3
2460 11.4
2470 11.4
2480 11.5
2490 11.4
2500 11.5
5150 15.7
5200 15.8
5250 15.6
5300 15.4
5350 15.5
5400 14.8
5450 14.5
5500 14.5
5550 14.3
5600 14.5
5650 14.8
5700 14.9
5750 15.1
5800 14.6
5850 15.2

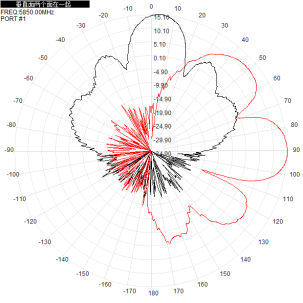

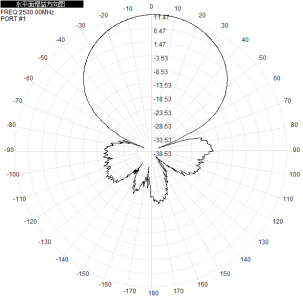

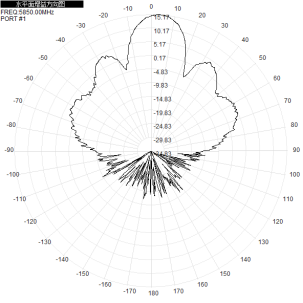

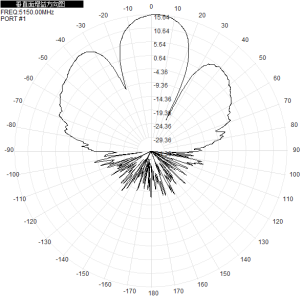

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

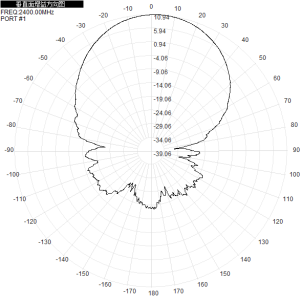

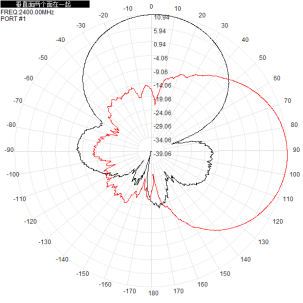

2400MHz 5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted 5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted 5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted

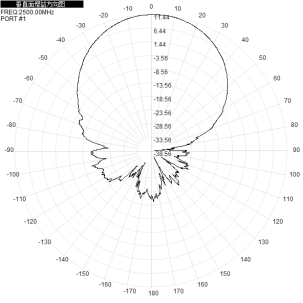

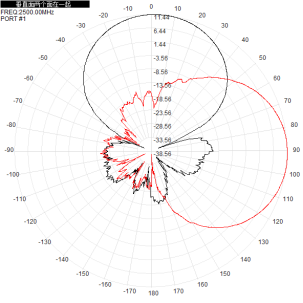

2500MHz 5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted 5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted 5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted
5150MHz 5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted 5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted 5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted
5850MHz 5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted 5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted 5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted
