Specifications
Brand Name :
Leenz
Model Number :
LZANT-10310-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
758-830MHz
VSWR :
<2.0
Peak Gain :
8dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 758-830MHz
S.W.R. <= 2.0
Antenna Gain 14dBi
Polarization Vertical
Horizontal Beamwidth 70°
Vertical Beamwidth 65°
F/B >14dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N Female connector
Dimension 256*256*40mm
Radome material ABS
Weight 1.0Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

758-830M Single Polarized 8dbi High Gain Directional Antenna 256x256x40mm



2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
758 7.1
759 7.1
760 7.1
770 7.5
780 7.9
790 8.0
800 8.2
810 8.1
820 8.3
830 8.1

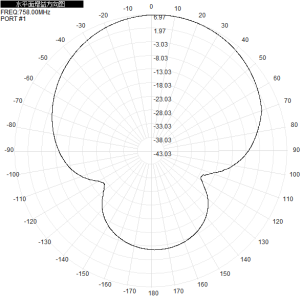

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
758MHz 758-830M Single Polarized 8dbi High Gain Directional Antenna 256x256x40mm 758-830M Single Polarized 8dbi High Gain Directional Antenna 256x256x40mm 758-830M Single Polarized 8dbi High Gain Directional Antenna 256x256x40mm
780MHz 758-830M Single Polarized 8dbi High Gain Directional Antenna 256x256x40mm 758-830M Single Polarized 8dbi High Gain Directional Antenna 256x256x40mm 758-830M Single Polarized 8dbi High Gain Directional Antenna 256x256x40mm
830MHz 758-830M Single Polarized 8dbi High Gain Directional Antenna 256x256x40mm 758-830M Single Polarized 8dbi High Gain Directional Antenna 256x256x40mm 758-830M Single Polarized 8dbi High Gain Directional Antenna 256x256x40mm
