Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90
Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90
Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90
Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10562-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
902-928MHz
VSWR :
<1.5
Peak Gain :
10dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 902-928MHz
S.W.R. <1.5
Antenna Gain 10dBi
Polarization Vertical
Horizontal Beamwidth 120°
Vertical Beamwidth 30°
F/B >15dB
Impedance 50Ohm
Max. Power 100W
B. Material & Mechanical Characteristics
Connector Type N connector
Cable Type LMR400 Cable
Dimension 750*150*90mm
Radome material Fiberglass
Weight 4.5Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

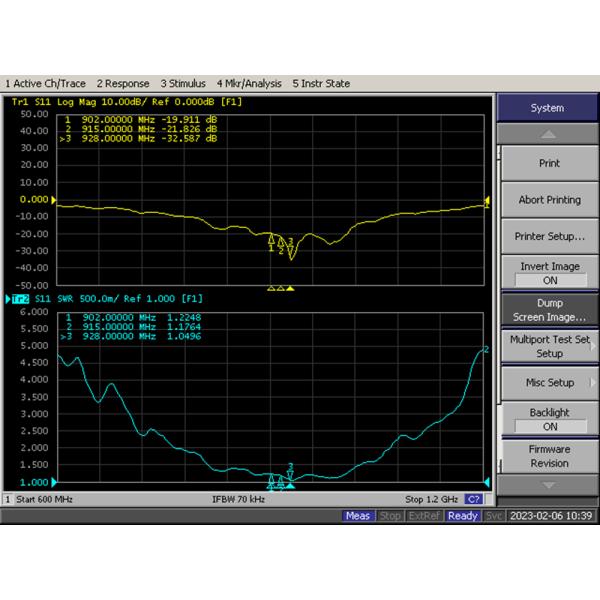

2.1 VSWR

Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90



2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
902 10.1
904 10.1
906 10.2
908 10.2
910 10.3
912 10.3
914 10.3
916 10.4
918 10.4
920 10.5
922 10.4
924 10.4
926 10.4
928 10.4

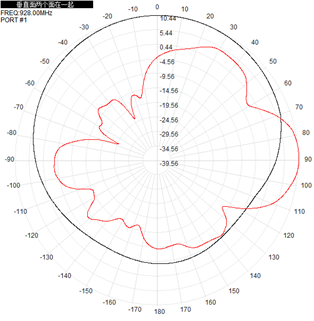

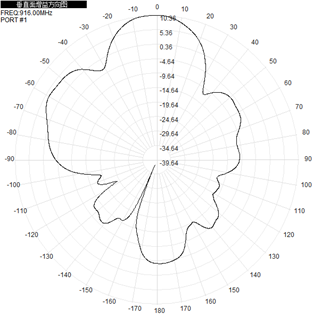

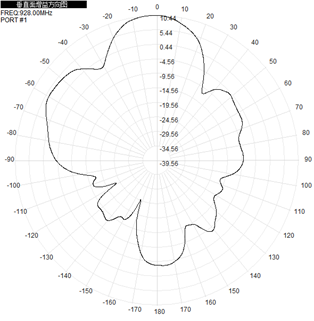

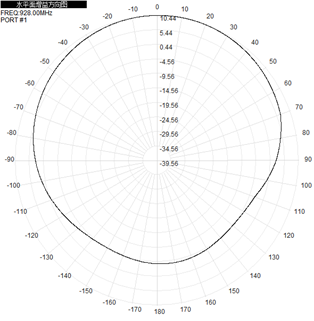

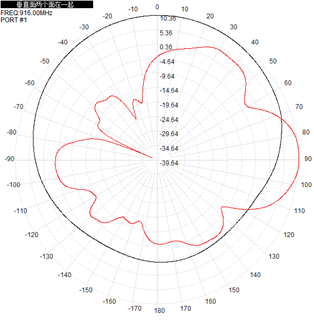

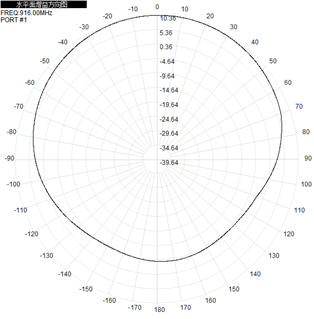

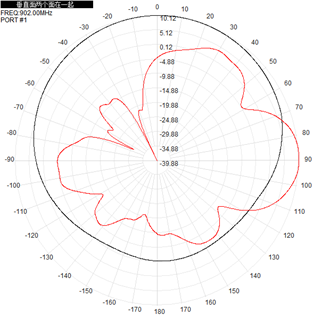

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
902MHz Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90 Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90 Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90
916MHz Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90 Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90 Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90
928MHz Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90 Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90 Flat Outdoor Panel Antenna RFID 902-928 MHz 10dBi 700x150x90
