White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28
White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28
White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28
White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28
White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28
White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10795-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
902-928MHz
VSWR :
<1.5
Peak Gain :
9dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 902-928MHz
S.W.R. <1.5
Antenna Gain 9dBi
Polarization DHCP
Horizontal Beamwidth 76-78°
Vertical Beamwidth 69-73°
F/B >15dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension 186*186*28mm
Radome material ABS
Weight 0.65Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

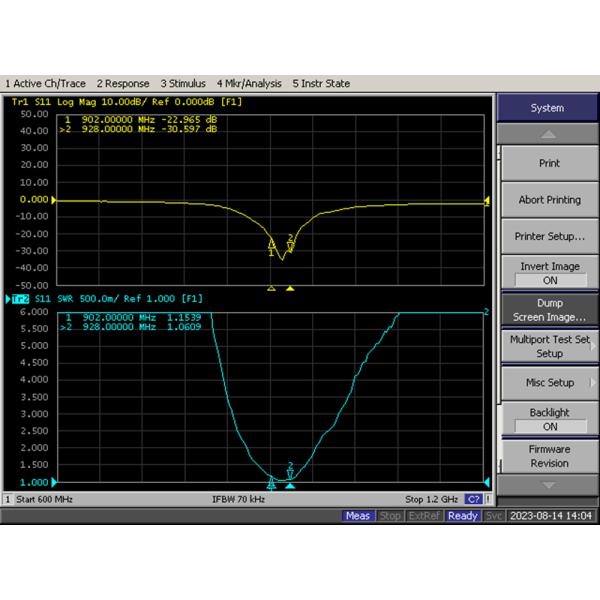

2.1 VSWR

White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28



2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
900 9.2
905 9.3
910 9.2
915 8.9
920 8.9
925 8.5
930 8.7

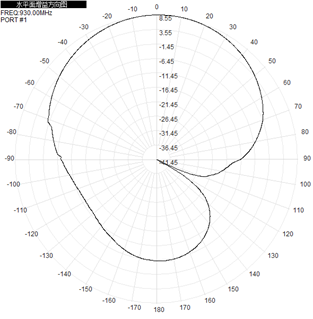

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

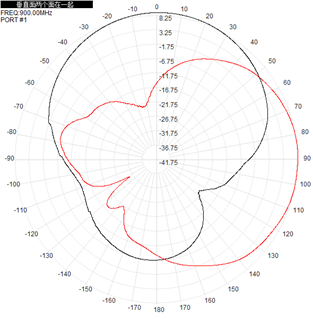

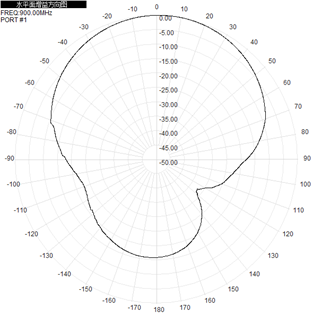

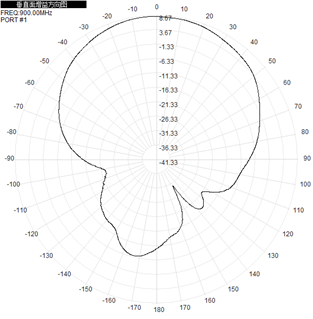

902MHz White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28 White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28 White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28

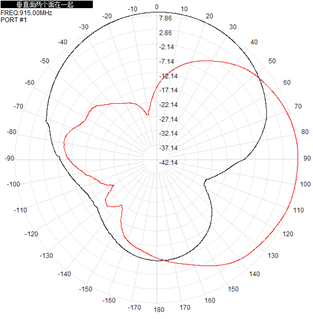

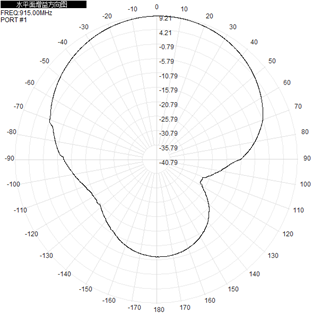

915MHz White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28 White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28 White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28

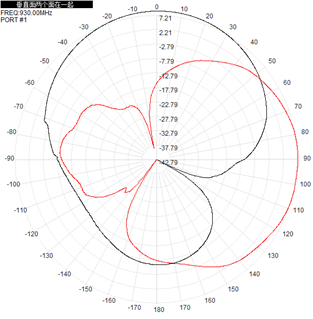

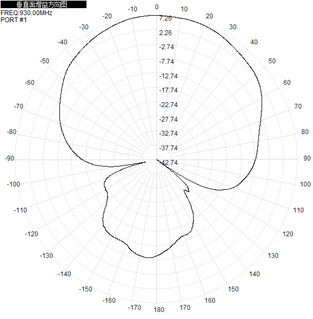

930MHz White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28 White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28 White Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 9dBi 186x186x28
