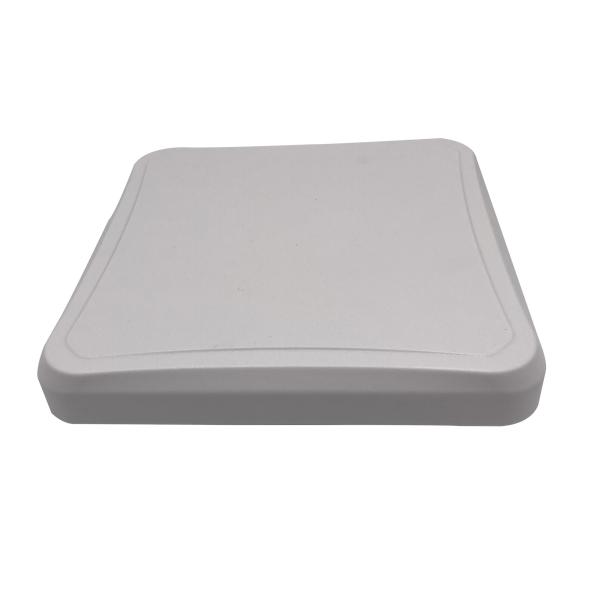

Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35
Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35
Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35
Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35
Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35
Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10546-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
902-928MHz
VSWR :
<1.5
Peak Gain :
9dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 902-928MHz
S.W.R. <1.5
Antenna Gain 9dBi
Polarization DHCP
Horizontal Beamwidth 66-68°
Vertical Beamwidth 63-65°
F/B >17dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension 260*260*35mm
Radome material ABS
Weight 1.235Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

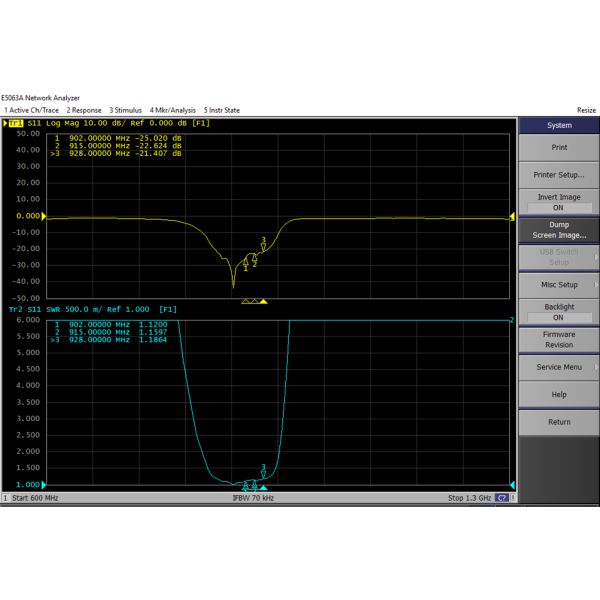

2.1 VSWR

Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35



2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
900 9.3
905 9.2
910 9.1
915 9.0
920 9.1
925 8.9
930 9.2

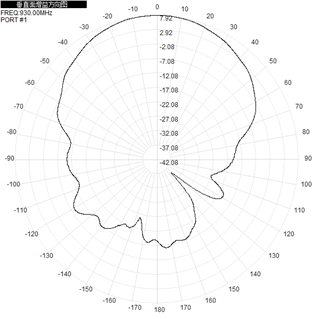

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

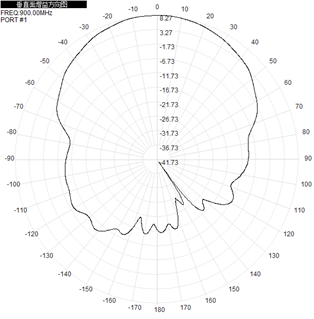

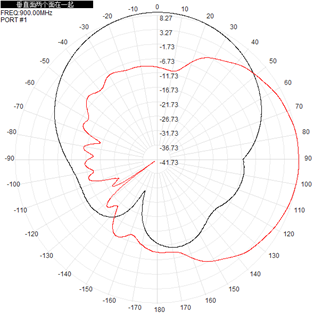

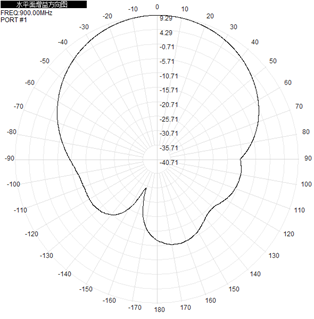

900MHz Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35 Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35 Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35

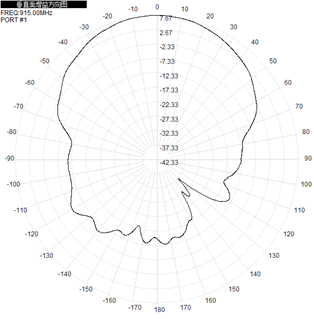

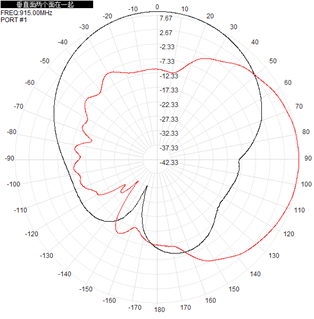

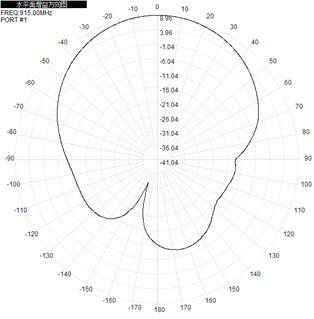

915MHz Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35 Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35 Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35
930MHz Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35 Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35 Flat Panel Outdoor Directional Antenna RFID 902-928 MHz 9.5dBi 260x260x35
