Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
Specifications
Brand Name :
Leenz
Model Number :
TZA2514U13-3PNF-MA
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz; 3700-4200MHz; 5100-5900MHz
VSWR :
<2.2
Peak Gain :
10-14Bi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Port Port1 Port2 Port3
Frequency 2400-2500MHz 3700-4200MHz 5150-5850MHz
S.W.R. <2.0 <2.0 <2.0
Antenna Gain 10dBi 13dBi 14dBi
Polarization Vertical Vertical Vertical
Horizontal Beamwidth 105±6° 37±3° 46±4°
Vertical Beamwidth 25±2° 35±5° 34±2°
F/B >20dB >25dB >23dB
Impedance 50Ohm 50Ohm 50Ohm
Max. Power 50W 50W 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension 290*205*40mm
Radome material ASA
Mount Pole ∅30-∅75
Weight 1.6Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

2.1 VSWR

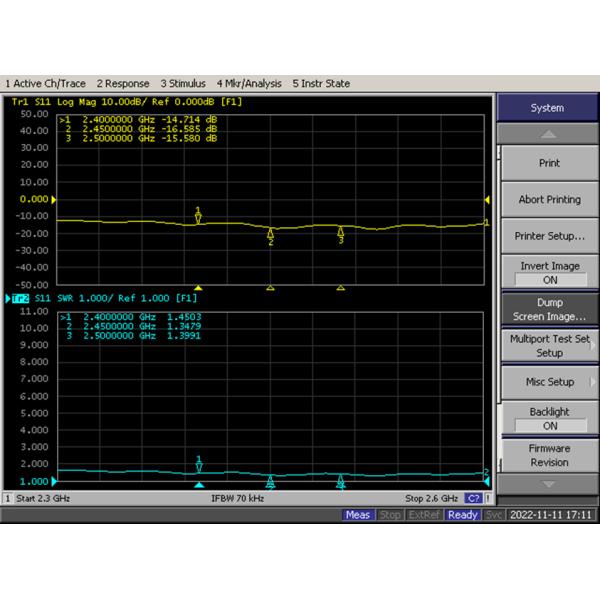

Port1

Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40

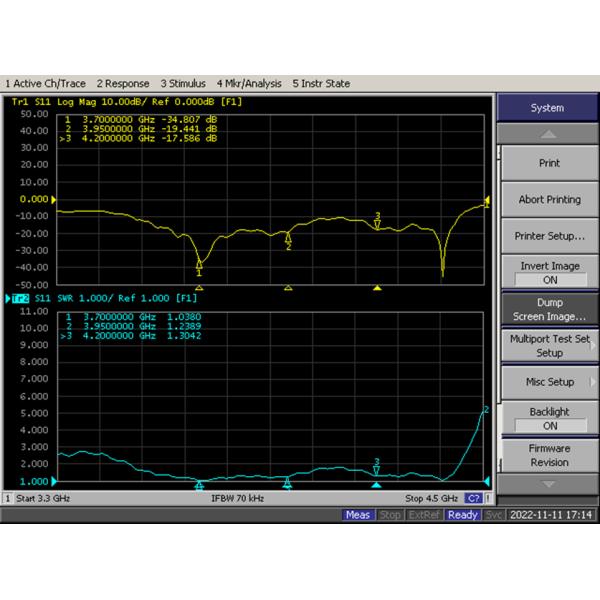

Port2

Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40

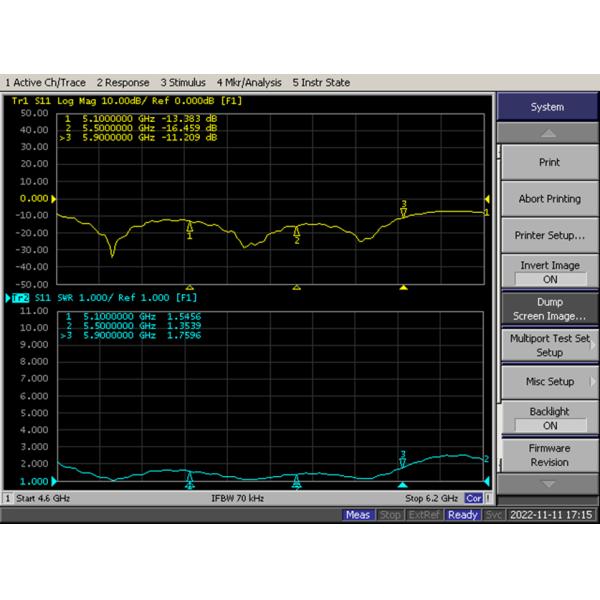

Port3

Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40

2.2 Total Efficiency & Gain:

Port 1 Port 2 Port 3
Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi)
2400 10.496 3700 13.032 5100 13.878
2410 10.589 3750 13.128 5150 14.082
2420 10.522 3800 13.178 5200 13.333
2430 10.455 3850 13.013 5250 13.544
2440 10.506 3900 13.056 5300 13.656
2450 10.475 3950 13.436 5350 13.758
2460 10.549 4000 13.135 5400 13.591
2470 10.623 4050 13.467 5450 13.419
2480 10.492 4100 13.566 5500 13.516
2490 10.345 4150 13.492 5550 13.322
2500 10.488 4200 13.534 5600 13.188
5650 13.185
5700 13.153
5750 13.243
5800 13.117
5850 13.175
5900 13.275
2.3 Radiation Pattern

Port 1 2D-Horizontal 2D-Vertical Horizontal & Vertical
2400MHz Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
2450MHz Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
2500MHz Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40

Port 2 2D-Horizontal 2D-Vertical Horizontal & Vertical
3700MHz Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
3900MHz Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
4200MHz Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
Port 3 2D-Horizontal 2D-Vertical Horizontal & Vertical
5150MHz Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
5550MHz Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
5900MHz Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40 Flat Panel Outdoor Directional Antenna 2.4 & 5 .8GHz 3.7-4.2GHz 10-14dBi 290x205x40
