Specifications
Brand Name :
Leenz
Model Number :
LZANT-10177-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
806-960/1710-2700M
VSWR :
<2
Peak Gain :
3/6dBi
Impedance :
50
Description

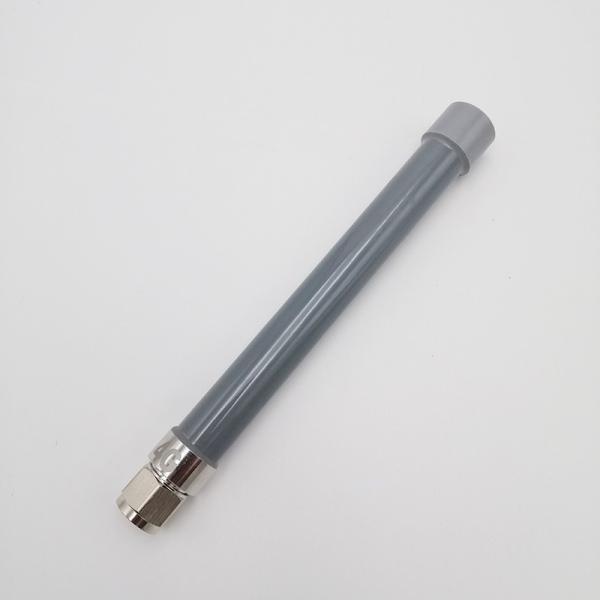

2G3G4G LTE GSM NB-Iot omnidirectional outdoor AP base station gateway with external waterproof fiberglass antenna
1. Specification

A. Electrical Characteristics
Frequency806-960MHz1710-2700MHz
Impedance50 Ohm50 Ohm
S.W.R.<2<2
Gain2.5dBi6dBi
Efficiency≈56%≈64%
PolarizationLinearLinear
Horizontal Beamwidth360°360°
Vertical Beamwidth80°37°
Max Power50W
B. Material & Mechanical Characteristics

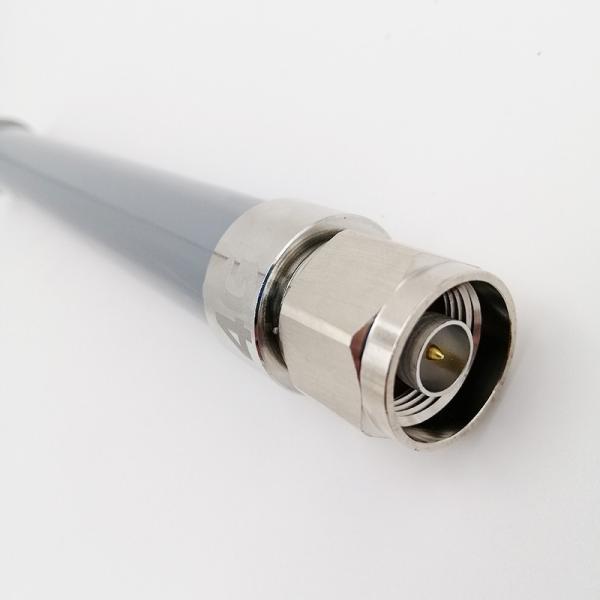

Connector TypeN Male
DimensionΦ20*200mm
Weight0.11Kg
Radome materialFiberglass
C. Environmental
Operation Temperature- 40 ˚C ~ + 85˚C
Storage Temperature- 40 ˚C ~ + 85˚C


2. Antenna - S Parameter Test Data
2.1 VSWR
2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna

2.2 Total Efficiency & Gain:2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna

Frequency(MHz)800.0820.0840.0860.0880.0900.0920.0940.0960.0
Gain (dBi)0.911.471.411.642.151.992.372.632.37
Efficiency (%)72.4085.1681.0777.6986.0672.2173.5070.4860.48
Frequency(MHz)1710.01800.01890.01980.02070.02160.02250.02340.02430.02520.02610.02700.0
Gain (dBi)6.045.884.742.773.223.242.671.872.122.653.023.05
Efficiency (%)64.5268.0670.7665.6771.2778.4185.1880.0782.6684.1989.9788.56
2.3 Radiation Pattern
3D2D-Horizontal2D-Vertical
800MHz2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna
880MHz2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna
960MHz2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna

3D2D-Horizontal2D-Vertical
1710MHz2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna
2250MHz2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna
2700MHz2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna2G 3G 4G LTE Omni Directional Gsm Antenna NB-Iot AP Base Station Gateway Fiberglass Omni Antenna
