Specifications
Brand Name :
Leenz
Model Number :
LZANT-10091-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
698-960/1710-2700M
VSWR :
<2
Peak Gain :
3dBi
Impedance :
50
Description

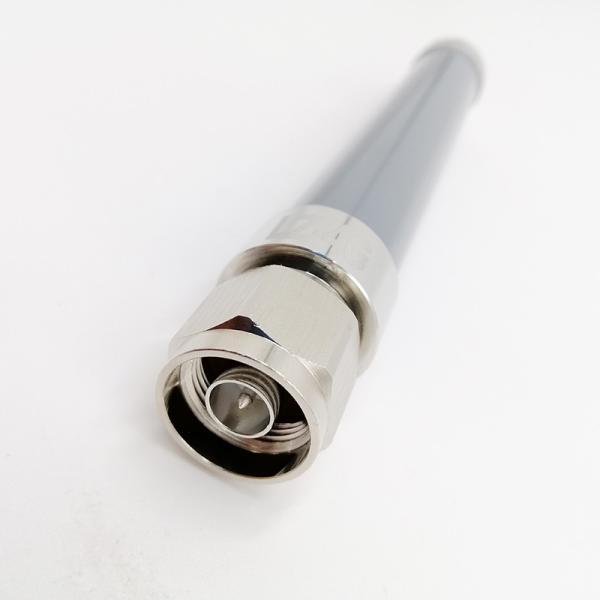

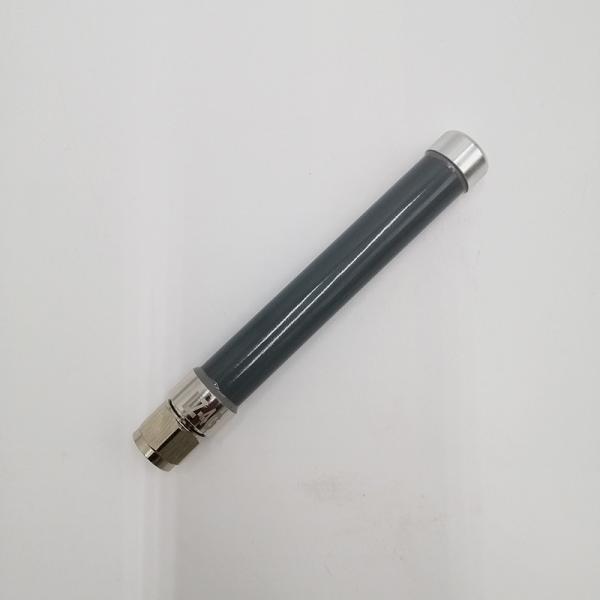

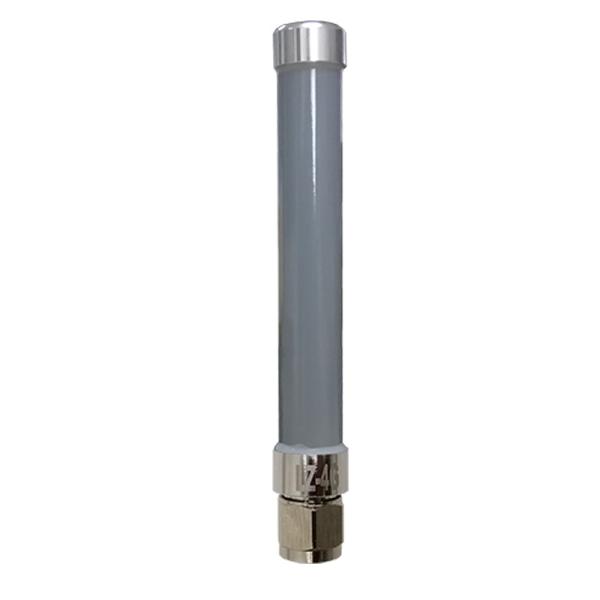

2G3G4G LTE GSM NB-Iot omnidirectional outdoor AP base station gateway with external waterproof fiberglass antenna
1. Specification

A. Electrical Characteristics
Frequency698-960MHz1710-2700MHz
Impedance50 Ohm50 Ohm
S.W.R.<2<2
Gain2.5dBi5dBi
Efficiency≈56%≈64%
PolarizationLinearLinear
Horizontal Beamwidth360°360°
Vertical Beamwidth40±7°22±6°
Max Power50W
B. Material & Mechanical Characteristics

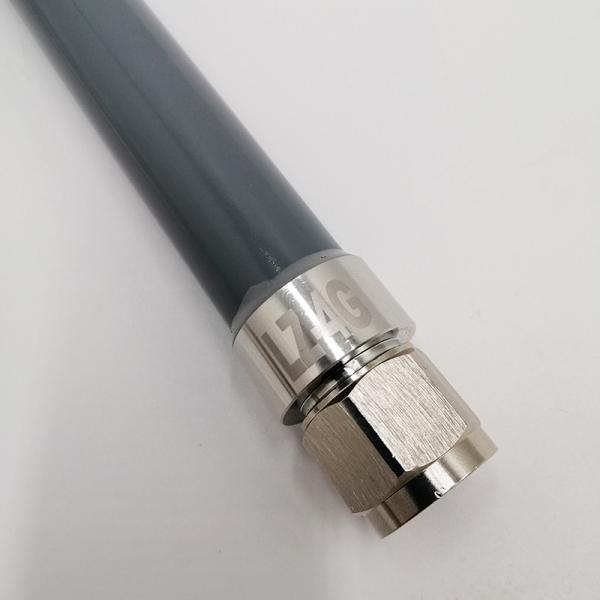

Connector TypeN Male
DimensionΦ20*150mm
Weight0.1Kg

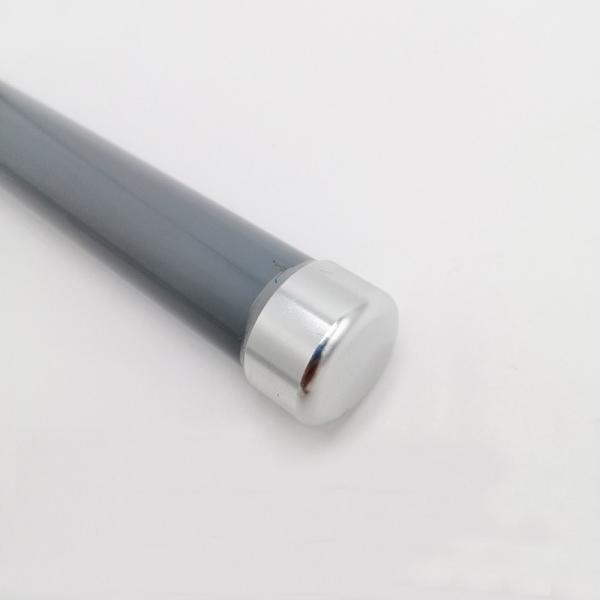

Radome materialFiberglass
C. Environmental
Operation Temperature- 40 ˚C ~ + 85˚C
Storage Temperature- 40 ˚C ~ + 85˚C


2. Antenna - S Parameter Test Data
2.1 VSWR
2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna

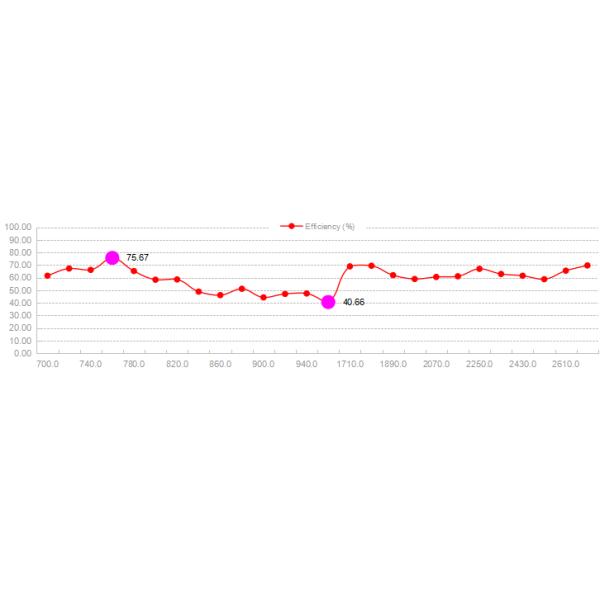

2.2 Total Efficiency & Gain:
2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna

Frequency(MHz)700.0720.0740.0760.0780.0800.0820.0840.0860.0880.0900.0920.0940.0960.0
Gain (dBi)1.171.641.792.231.811.621.490.971.131.881.752.302.461.90
Efficiency (%)61.5467.2666.1875.6765.2658.3858.5948.9246.1051.1944.3447.1047.4640.66
Frequency(MHz)1710.01800.01890.01980.02070.02160.02250.02340.02430.02520.02610.02700.0
Gain (dBi)5.355.455.285.135.096.245.614.593.843.793.903.66
Efficiency (%)68.9669.4562.0058.9560.5561.0966.9962.9461.5358.7865.5569.68
2.3 Radiation Pattern
3D2D-Horizontal2D-Vertical
700MHz2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna
880MHz2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna
960MHz2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna

3D2D-Horizontal2D-Vertical
1710MHz2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna
2250MHz2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna
2700MHz2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna
