400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10859-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
390-420MHz
VSWR :
<2.0
Peak Gain :
5dBi
Impedance :
50
Description

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna 390-420MHz 5dBi

1. Specification

A. Electrical Characteristics
Frequency 390-420MHz
S.W.R. <= 2
Antenna Gain 5dBi
Efficiency ≈83%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 26-30°
Impedance 50 Ohm
Max Power 100W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ32*1800mm
Weight 1.55Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground


2. Antenna - S Parameter Test Data
2.1 VSWR
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi

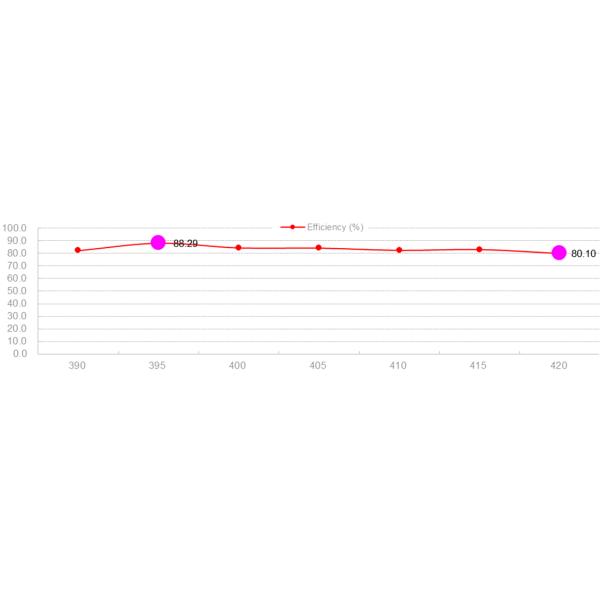

2.2 Total Efficiency & Gain:

Frequency(MHz) 390 395 400 405 410 415 420
Gain (dBi) 5.3 5.5 4.9 4.8 5.0 5.0 4.8
Efficiency (%) 82.4 88.3 84.6 84.4 82.6 83.2 80.1
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi

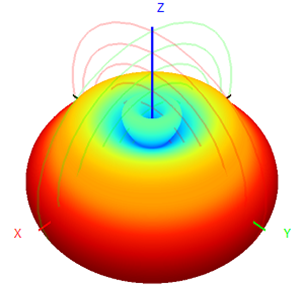

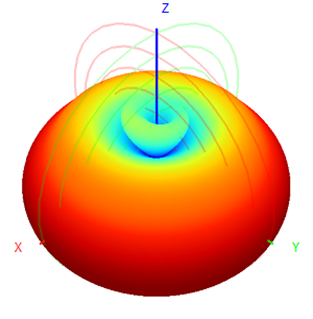

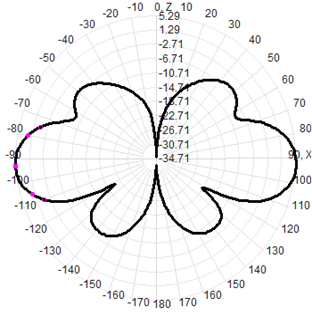

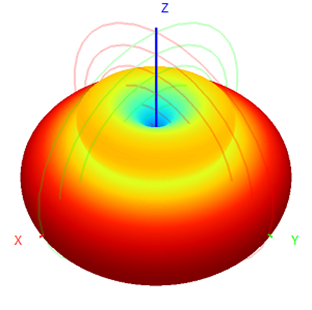

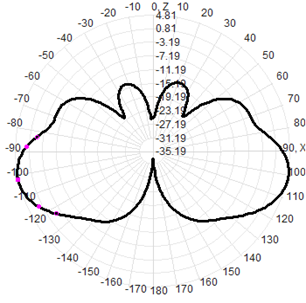

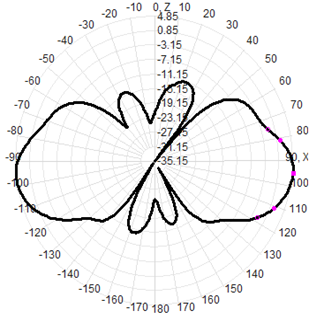

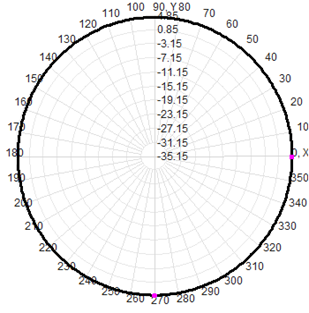

2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
390MHz 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
405MHz 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
420MHz 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
