900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB
900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB
900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB
900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB
900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB
900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10301-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
900-930MHz
VSWR :
<2
Peak Gain :
7.5dBi
Impedance :
50
Description

Outdoor Waterproof Omnidirectional Antenna IP67 RFID Antenna 915MHz Antenna Fiberglass Antenna 900-930MHz 7.5dB

1. Specification

A. Electrical Characteristics
Frequency 900-930MHz
S.W.R. <= 2
Antenna Gain 7.5dBi
Efficiency ≈93%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 18°
Impedance 50 Ohm
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ20*1070±5mm
Weight 0.37Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

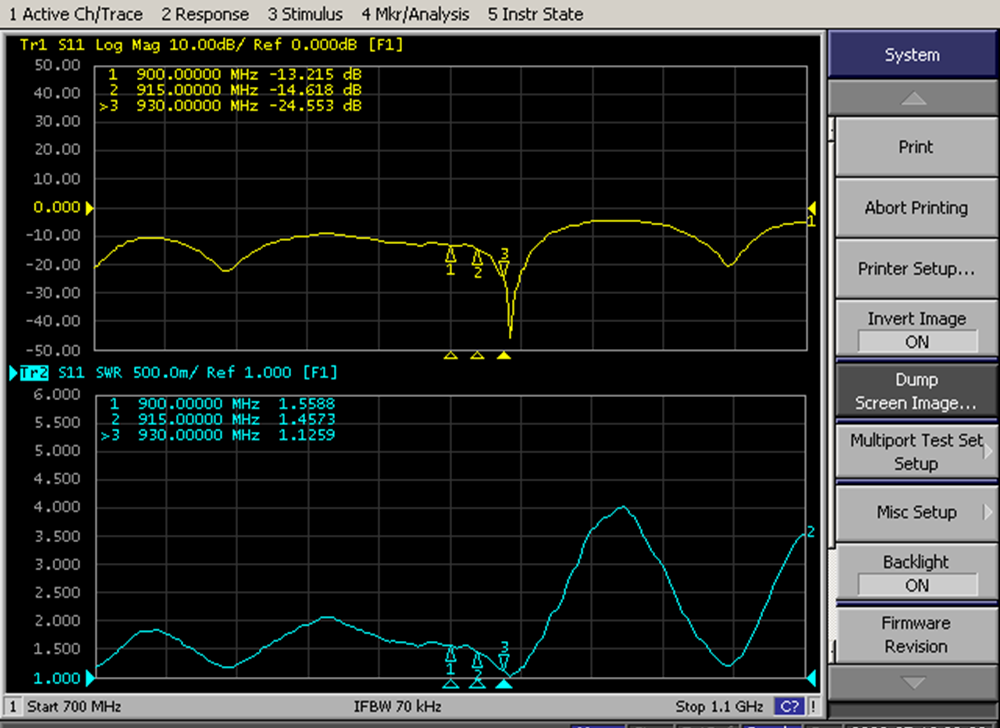

2.1 VSWR

900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB

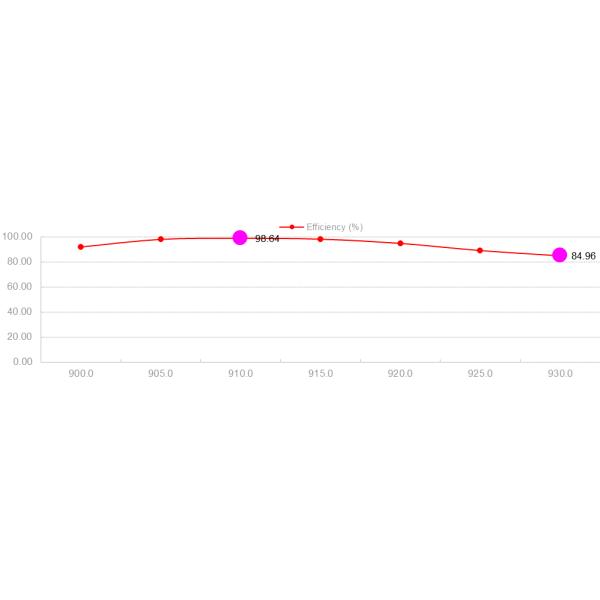

2.2 Total Efficiency & Gain:

Frequency(MHz) 900.0 905.0 910.0 915.0 920.0 925.0 930.0
Gain (dBi) 7.30 7.59 7.66 7.67 7.55 7.24 6.91
Efficiency (%) 91.87 97.79 98.64 97.95 94.69 89.09 84.96
900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB

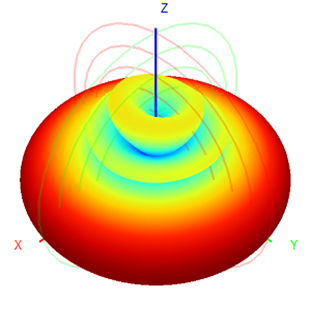

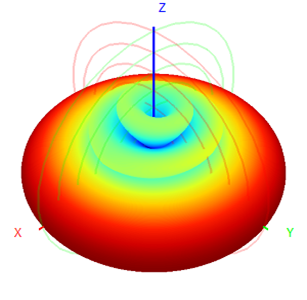

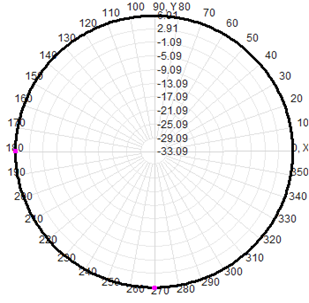

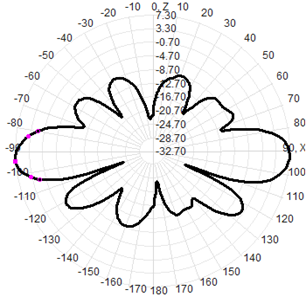

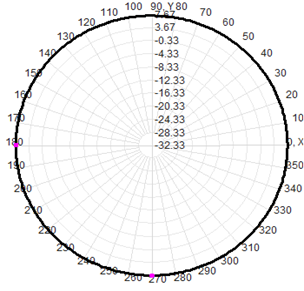

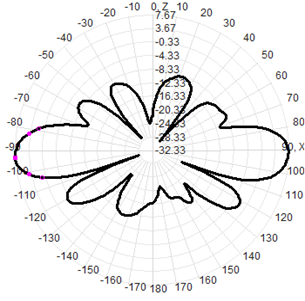

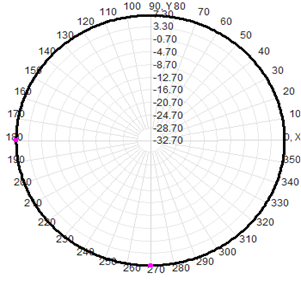

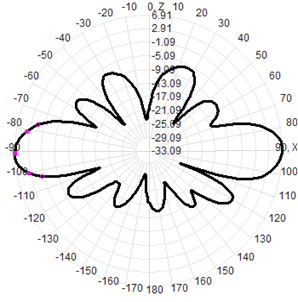

2.3 Radiation Pattern

3D 2D-Horizontal 2D-Vertical
900MHz 900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB 900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB 900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB
915MHz 900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB 900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB 900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB
930MHz 900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB 900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB 900 Mhz Antenna Omnidirectional Omni Directional Rfid Antenna 915MHz Fiberglass Antenna 900-930MHz 7.5dB
