Specifications
Brand Name :
Leenz
Model Number :
LZANT-10149-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz
VSWR :
<2.0
Peak Gain :
2.5dBi
Impedance :
50
Description

N Male 2.4G 2400-2500M omni 2dBi outdoor AP base station Gateway Bluetooth WIFI external Fiberglass waterproof antenna

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 2.5dBi
Efficiency ≈84%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 70±5°
Max Power 50W
B. Material & Mechanical Characteristics

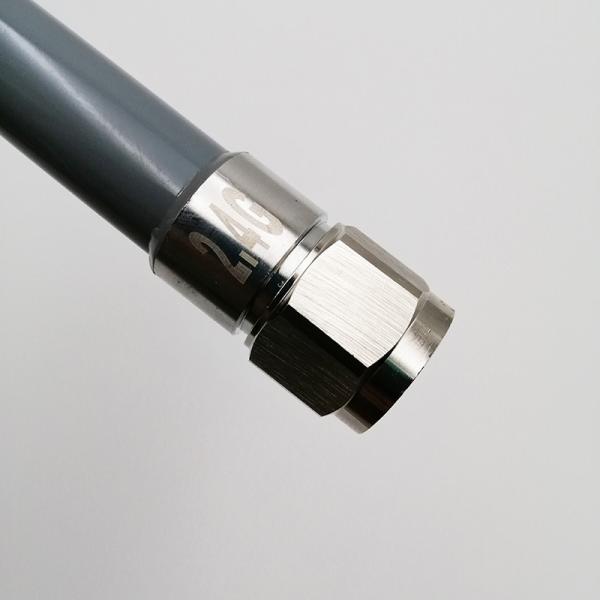

Connector Type N Male
Dimension Φ16*100mm
Weight 0.065Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

2.1 VSWR

Bluetooth Outdoor Omni Directional Wifi Antenna N Male 2.4G 2400-2500M 2dBi AP Base Station Gateway

2.2 Total Efficiency & Gain:

Frequency (MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) 2.45 2.33 2.18 2.17 2.11 2.35 2.39 2.37 2.25 2.37 2.30
Efficiency (%) 91.41 89.10 84.26 82.37 81.00 84.73 85.50 85.31 81.83 83.29 84.37
Bluetooth Outdoor Omni Directional Wifi Antenna N Male 2.4G 2400-2500M 2dBi AP Base Station Gateway
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz

Bluetooth Outdoor Omni Directional Wifi Antenna N Male 2.4G 2400-2500M 2dBi AP Base Station Gateway

 Bluetooth Outdoor Omni Directional Wifi Antenna N Male 2.4G 2400-2500M 2dBi AP Base Station Gateway Bluetooth Outdoor Omni Directional Wifi Antenna N Male 2.4G 2400-2500M 2dBi AP Base Station Gateway
2450MHz Bluetooth Outdoor Omni Directional Wifi Antenna N Male 2.4G 2400-2500M 2dBi AP Base Station Gateway Bluetooth Outdoor Omni Directional Wifi Antenna N Male 2.4G 2400-2500M 2dBi AP Base Station Gateway Bluetooth Outdoor Omni Directional Wifi Antenna N Male 2.4G 2400-2500M 2dBi AP Base Station Gateway
2500MHz Bluetooth Outdoor Omni Directional Wifi Antenna N Male 2.4G 2400-2500M 2dBi AP Base Station Gateway Bluetooth Outdoor Omni Directional Wifi Antenna N Male 2.4G 2400-2500M 2dBi AP Base Station Gateway Bluetooth Outdoor Omni Directional Wifi Antenna N Male 2.4G 2400-2500M 2dBi AP Base Station Gateway
