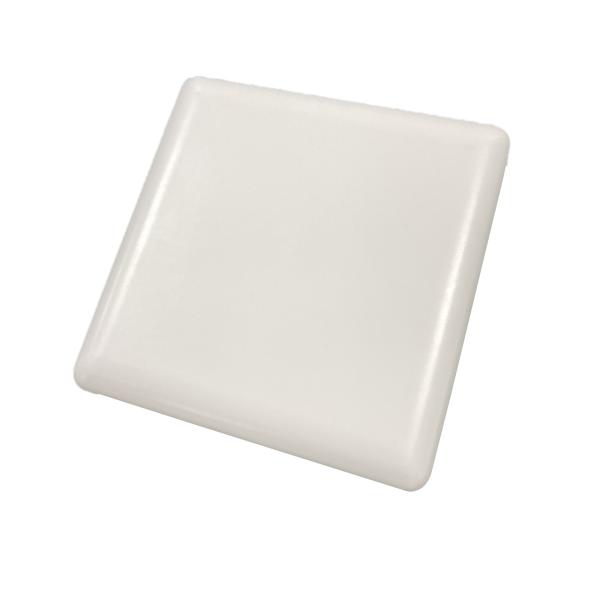

Outdoor Waterproof Directional Antenna Flat Panel Antenna UWB Antenna 3700-4200MHz 9 DBi 97x97x23

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <1.6
Antenna Gain 10dBi
Polarization Vertical
Horizontal Beamwidth 73±3°
Vertical Beamwidth 68±13°
F/B >16dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics

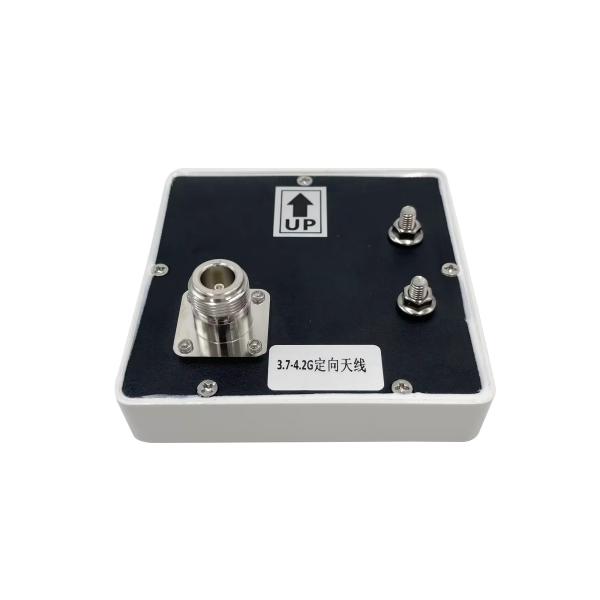

Connector Type N connector
Dimension 97*97*23mm
Radome material ABS
Weight 0.11Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

2.1 VSWR

Directional Uwb Chip Antenna 3700-4200MHz 9DBi 97x97x23mm Flat Panel Antenna

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
3700 9.8
3750 9.7
3800 9.8
3850 9.9
3900 9.9
3950 9.9
4000 9.6
4050 9.8
4100 9.6
4150 9.3
4200 9.0
2.3 Radiation Pattern
2D-Horizontal 2D-Vertical Horizontal & Vertical
3700MHz Directional Uwb Chip Antenna 3700-4200MHz 9DBi 97x97x23mm Flat Panel Antenna Directional Uwb Chip Antenna 3700-4200MHz 9DBi 97x97x23mm Flat Panel Antenna Directional Uwb Chip Antenna 3700-4200MHz 9DBi 97x97x23mm Flat Panel Antenna
3900MHz Directional Uwb Chip Antenna 3700-4200MHz 9DBi 97x97x23mm Flat Panel Antenna Directional Uwb Chip Antenna 3700-4200MHz 9DBi 97x97x23mm Flat Panel Antenna Directional Uwb Chip Antenna 3700-4200MHz 9DBi 97x97x23mm Flat Panel Antenna
4200MHz Directional Uwb Chip Antenna 3700-4200MHz 9DBi 97x97x23mm Flat Panel Antenna Directional Uwb Chip Antenna 3700-4200MHz 9DBi 97x97x23mm Flat Panel Antenna Directional Uwb Chip Antenna 3700-4200MHz 9DBi 97x97x23mm Flat Panel Antenna
