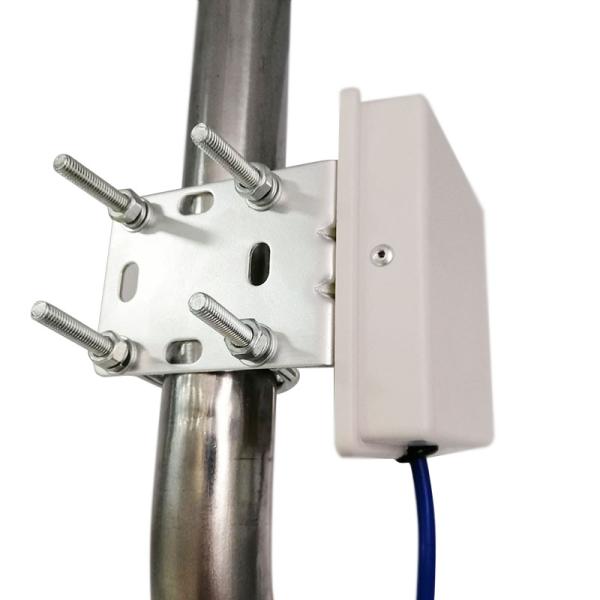

UWB Antenna Outdoor Panel antenna 3700-4200MHz 9 dBi 100x100x23

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <2.0
Antenna Gain 9dBi
Polarization Vertical
Horizontal Beamwidth 55-75°
Vertical Beamwidth 28-44°
F/B >14dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics

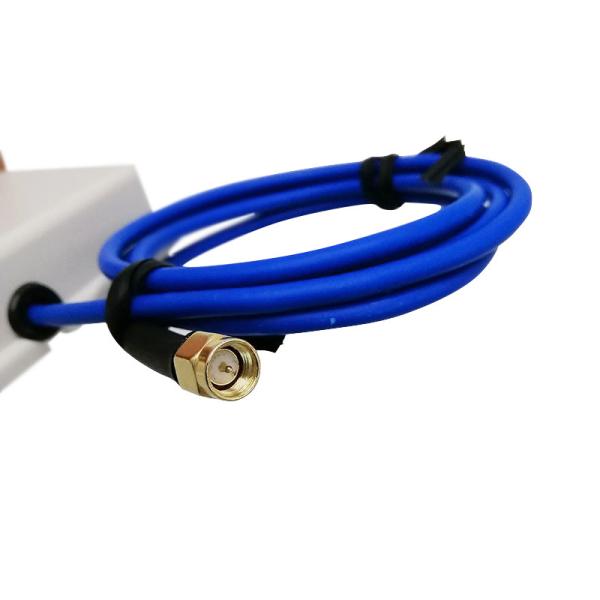

Cable Type Mine Cable, length 1 meter
Connector Type SMA connector
Dimension 100*100*23mm
Radome material ABS
Weight 0.3Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

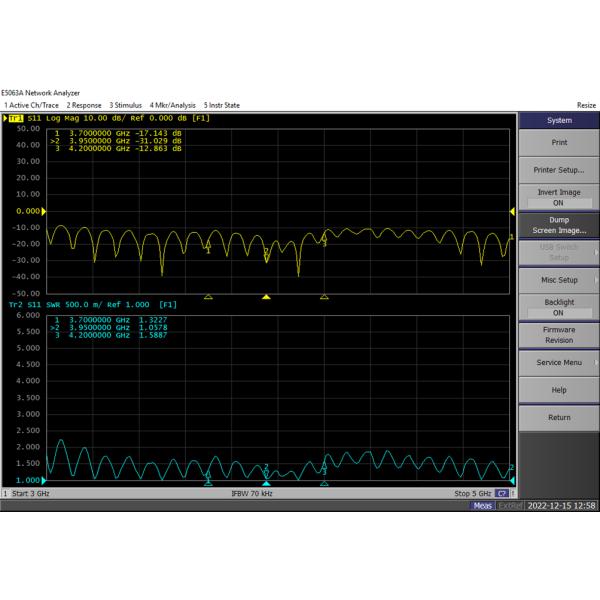

2.1 VSWR

Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm



2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
3700 8.6978
3750 8.2188
3800 8.5625
3850 8.1175
3900 8.8527
3950 8.6745
4000 8.6764
4050 8.6473
4100 8.2032
4150 7.8865
4200 8.6568

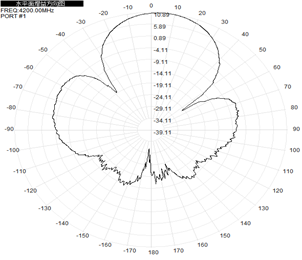

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
3700MHz Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm
3950MHz Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm
4200MHz Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm
