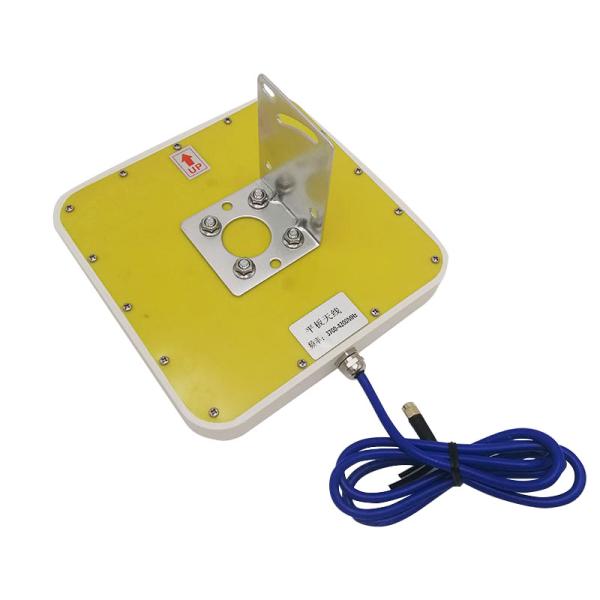

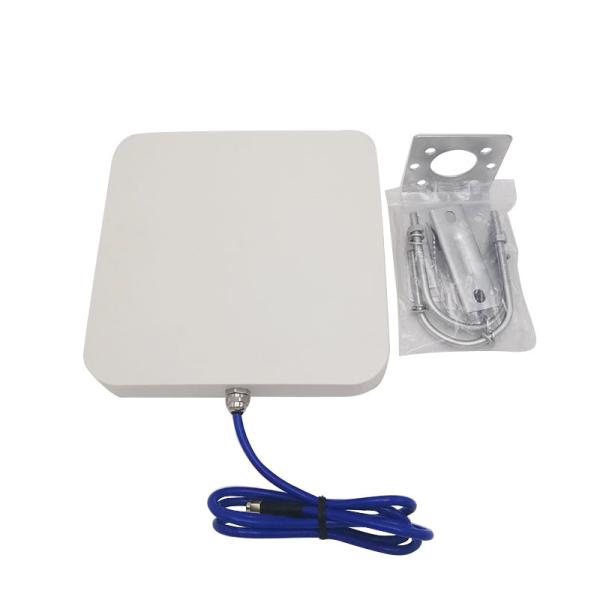

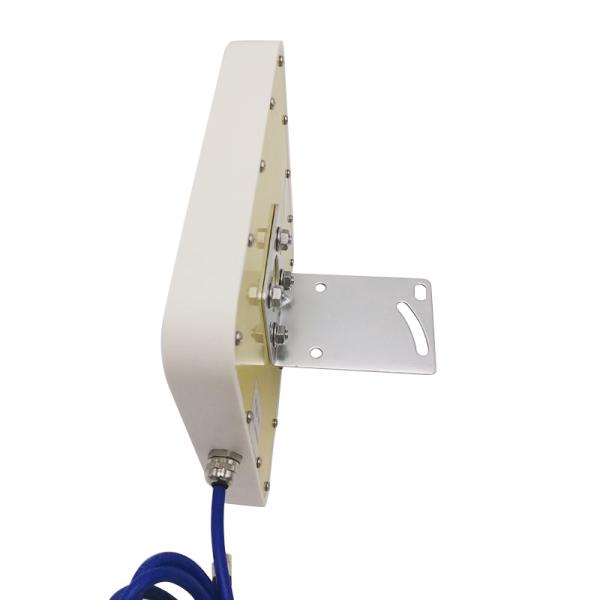

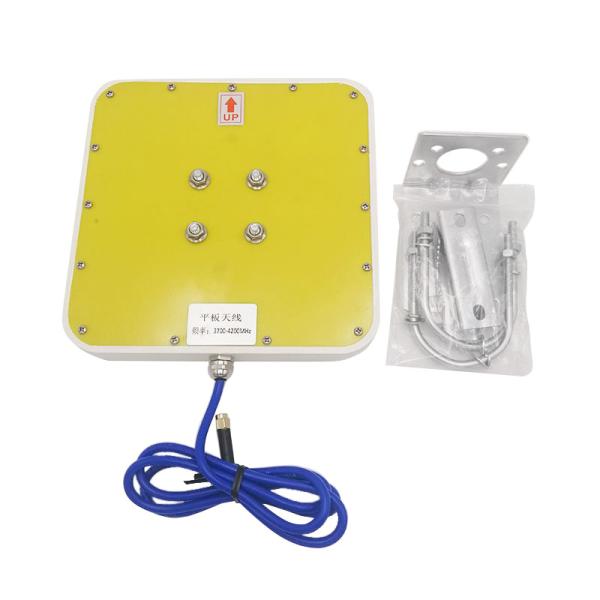

UWB Antenna Outdoor Panel antenna 3700-4200MHz 14 dBi SMA connector with cable186x186x28

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <= 1.8
Antenna Gain 14dBi
Polarization Vertical
Horizontal Beamwidth 35-40°
Vertical Beamwidth 34-36°
F/B >23dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Cable Type Mine Cable, length 1 meter
Connector Type SMA connector
Dimension 186*186*28mm
Radome material ABS
Weight 0.905Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

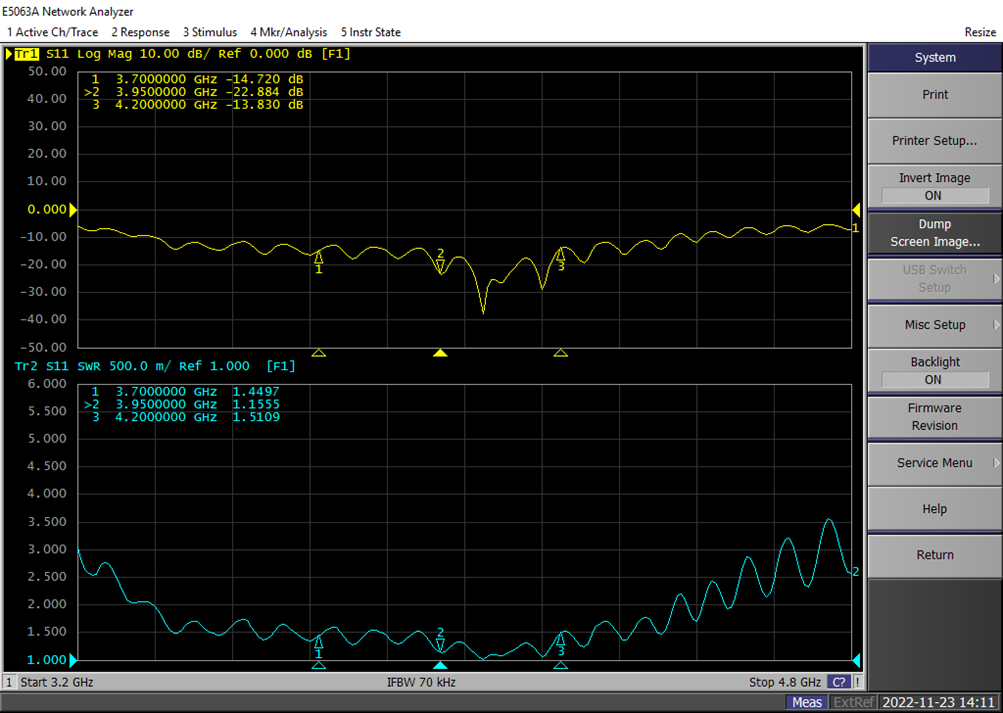

2.1 VSWR

Pcb Chip Ultra Wideband Antenna 3700-4200MHz 14 DBi SMA Connector With Cable186x186x28



2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
3700 13.021
3750 13.315
3800 13.716
3850 13.794
3900 13.817
3950 13.834
4000 13.858
4050 13.974
4100 13.88
4150 13.813
4200 13.802

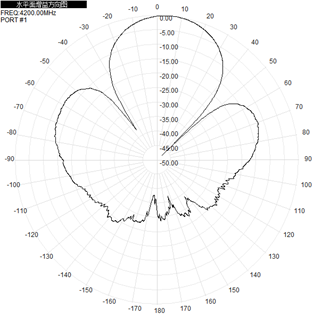

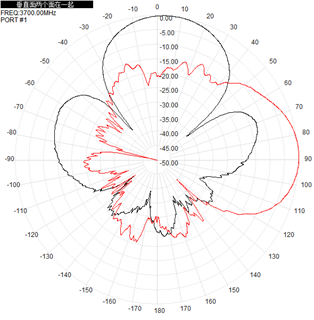

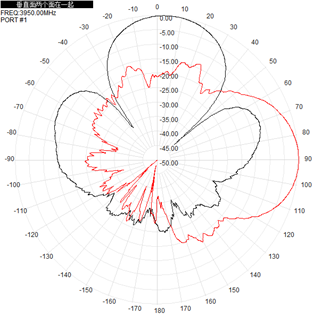

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

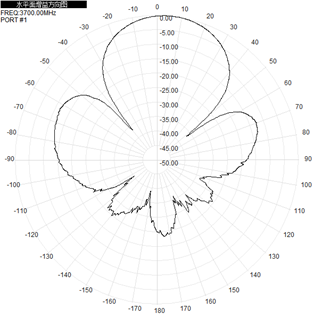

3700MHz Pcb Chip Ultra Wideband Antenna 3700-4200MHz 14 DBi SMA Connector With Cable186x186x28 Pcb Chip Ultra Wideband Antenna 3700-4200MHz 14 DBi SMA Connector With Cable186x186x28 Pcb Chip Ultra Wideband Antenna 3700-4200MHz 14 DBi SMA Connector With Cable186x186x28

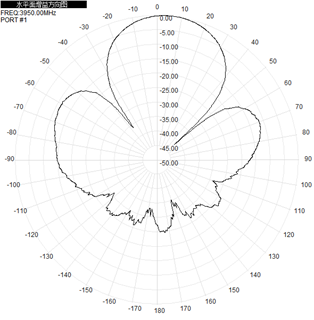

3950MHz Pcb Chip Ultra Wideband Antenna 3700-4200MHz 14 DBi SMA Connector With Cable186x186x28 Pcb Chip Ultra Wideband Antenna 3700-4200MHz 14 DBi SMA Connector With Cable186x186x28 Pcb Chip Ultra Wideband Antenna 3700-4200MHz 14 DBi SMA Connector With Cable186x186x28

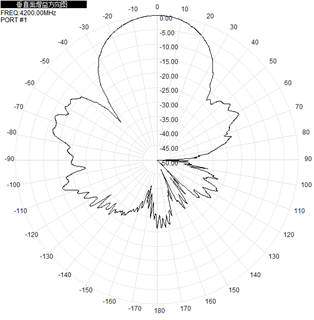

4200MHz Pcb Chip Ultra Wideband Antenna 3700-4200MHz 14 DBi SMA Connector With Cable186x186x28 Pcb Chip Ultra Wideband Antenna 3700-4200MHz 14 DBi SMA Connector With Cable186x186x28 Pcb Chip Ultra Wideband Antenna 3700-4200MHz 14 DBi SMA Connector With Cable186x186x28
