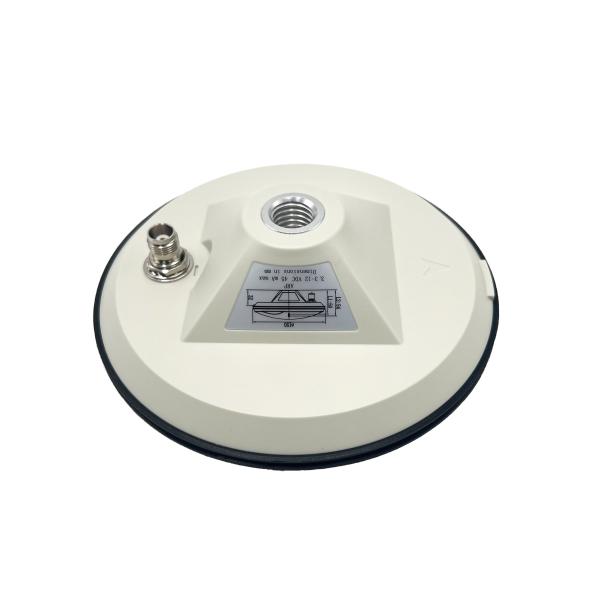

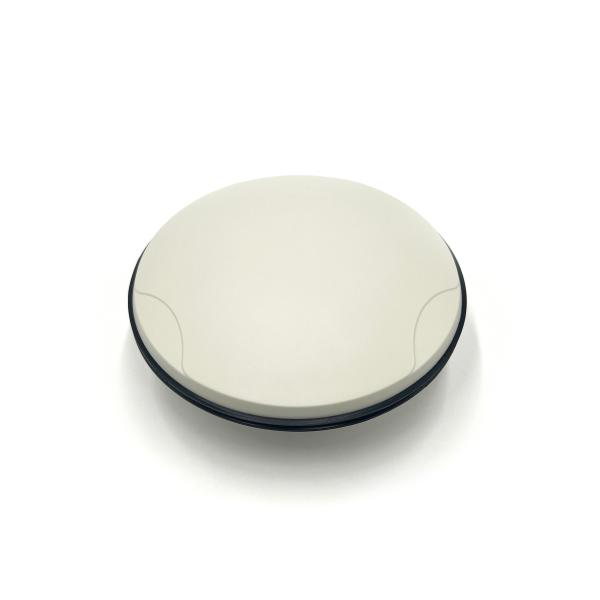

Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo
Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo
Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo
Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo
Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo
Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10690-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
1160-1290MHz / 1525-1615MHz
VSWR :
<2.0
LNA Gain :
40dBi
Impedance :
50
Description

Satellite Positioning Antenna Four-Star Multi-Band Survey antenna 40dBi GPS GLONASS Beidou Galileo

1. Specification

A. Electrical Characteristics
Frequency 1160-1290MHz, 1525-1615MHz
Supported Positioning signal bands

GPS: L1/L2

BDS: B1/B2/B3

GLONASS: G1/G2

Galileo: E1/E5b
Peak Gain ≥5.5dBi@Fc
Impedance 50Ohm
Polarization RHCP
Axial Ratio ≤3 dB
Azimuth Coverage 360°
Phase-center accuracy ≤2.0mm
B. LNA and Filter Electrical Properties
LNA Gain 40±2dBi(Typ.@25℃)
Group Delay variation ≤5ns
Noise Figure ≤2.0dB@25℃,Typ.(Pre-filtered)
Output VSWR ≤1.5 : 1Typ. 2.0 : 1 Max
Operation Voltage 3.3-12 V DC
Operation Current ≤45mA
C. Material & Mechanical Characteristics
Connector Type TNC connector
Dimension Φ150x60mm
Radome material ABS
Waterproof IP67
Weight 0.42Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

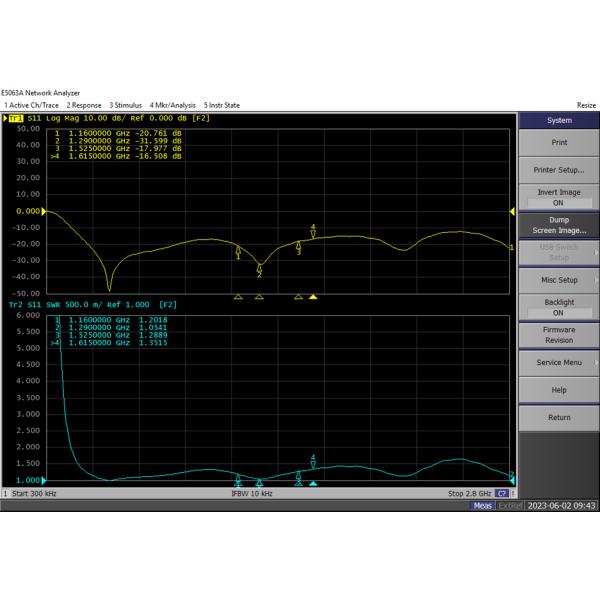

Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo

2.2 LNA Gain:

Frequency (MHz) Gain (dBi) Frequency (MHz) Gain (dBi)
1160.0 34.7 1525.0 27.4
1165.0 36.4 1530.0 34.5
1170.0 37.9 1535.0 37.3
1175.0 39.2 1540.0 39.9
1180.0 40.1 1545.0 40.8
1185.0 40.6 1550.0 40.9
1190.0 41.0 1555.0 40.7
1195.0 41.0 1560.0 40.3
1200.0 41.5 1565.0 40.0
1205.0 41.9 1570.0 39.9
1210.0 42.0 1575.0 40.1
1215.0 42.0 1580.0 40.2
1220.0 41.8 1585.0 40.0
1225.0 41.4 1590.0 39.7
1230.0 40.8 1595.0 39.2
1235.0 40.7 1600.0 38.6
1240.0 40.7 1605.0 38.1
1245.0 40.3 1610.0 36.6
1250.0 39.9 1615.0 31.8
1255.0 38.9
1260.0 38.4
1265.0 37.7
1270.0 36.3
1275.0 34.5
1280.0 32.6
1285.0 30.7
1290.0 29.3
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical

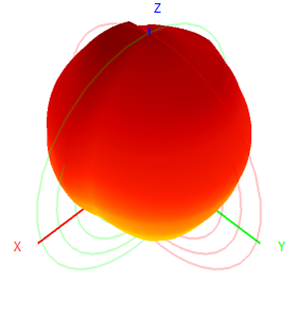

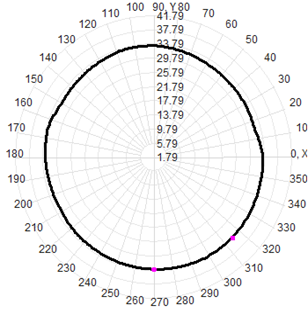

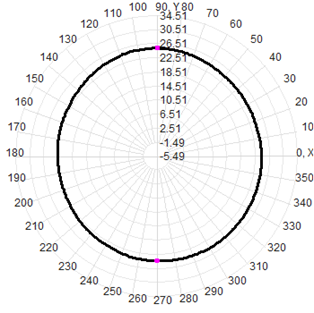

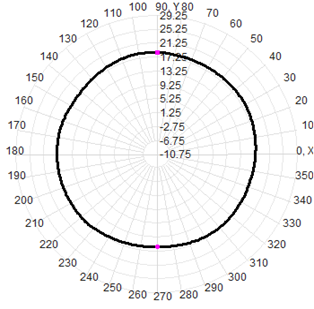

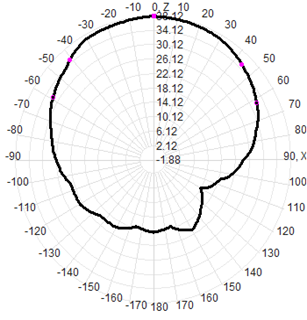

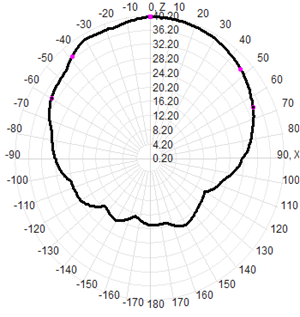

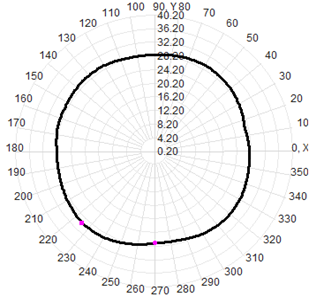

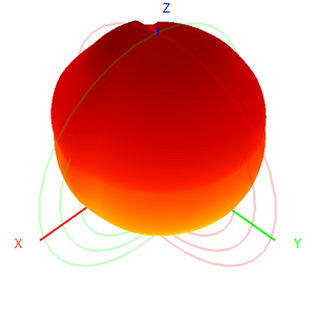

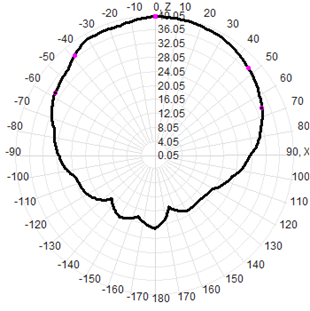

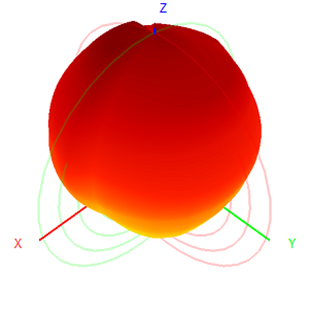

1160MHz Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo

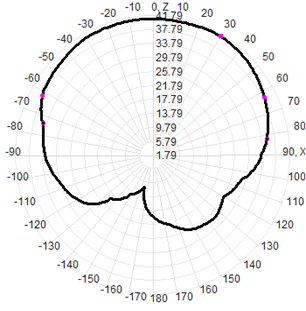

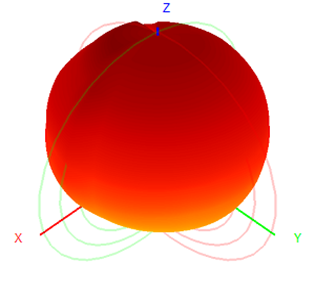

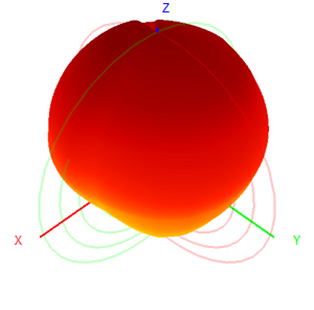

1220MHz Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo

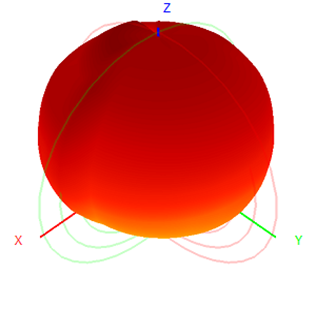

1290MHz Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo
3D 2D-Horizontal 2D-Vertical

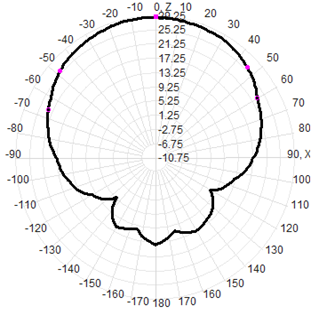

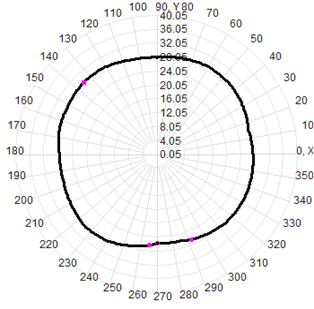

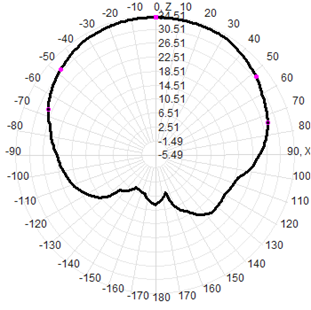

1560MHz Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo
1575MHz Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo

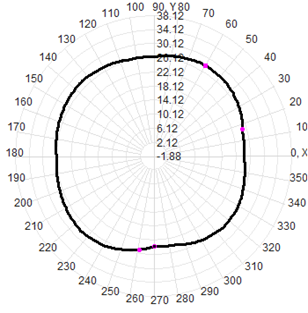

1605MHz Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo
