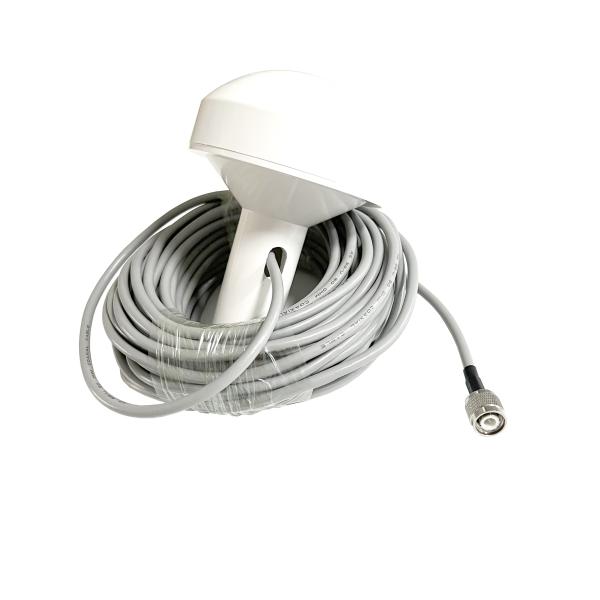

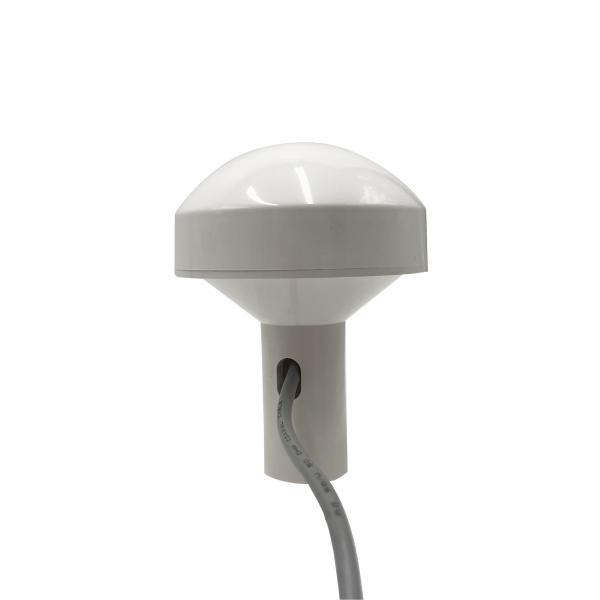

Satellite Positioning Antenna GPS+Beidou Timing Antenna Marine Antenna

1. Specification

A. Electrical Characteristics
Frequency 1561±5MHz; 1575±5MHz
VSWR <1.5
Peak Gain 5±2dBi@Fc
Impedance 50Ohm
Polarization RHCP
Axial Ratio ≤5 dB
10Db Bandwidth ±10MHz
Azimuth Coverage 360°
B. LNA and Filter Electrical Properties
LNA Gain 38±2dBi(Typ.@25℃)
Group Delay variation ≤5ns
Noise Figure ≤1.8dB@25℃,Typ.(Pre-filtered)
In-Band Flatness (dB) ＜1 (1575.42MHz±1MHz)
Out-of-Band Suppression (dBc) ＞70dBc
LNA Output 1Db Compression point ＞-10dBm
Output VSWR ≤2.0 Typ.
Operation Voltage 3.3-5 V DC
Operation Current ≤25mA
C. Material & Mechanical Characteristics
Connector Type TNC connector
Cable Type RG58/U
Dimension Φ96x127±3mm
Radome material ABS
Waterproof IP66
Weight 0.63Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C

2. Antenna - S Parameter Test Data

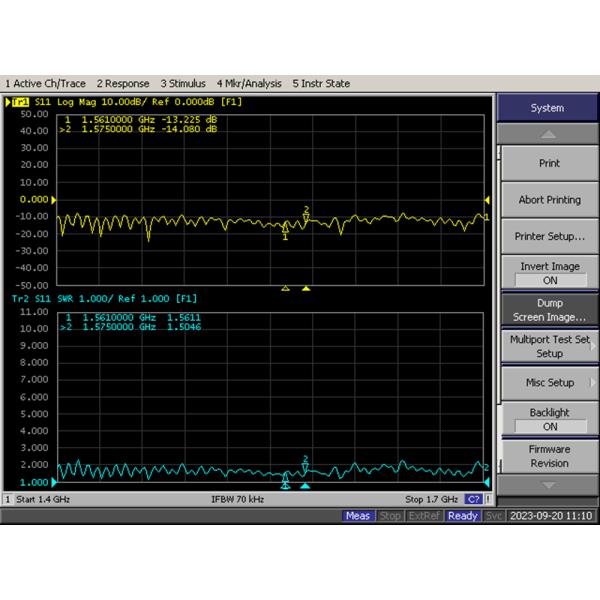

2.1 VSWR

Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna

2.2 LNA Gain:

Frequency (MHz) Gain (dBi)
1556 38.3
1557 38.4
1558 38.5
1559 38.4
1560 38.4
1561 38.5
1562 38.5
1563 38.5
1564 38.6
1565 38.6
1566 38.8
1570 39.11
1571 39.18
1572 39.23
1573 39.28
1574 39.28
1575 39.16
1576 38.90
1577 38.74
1578 38.67
1579 38.63
1580 38.55

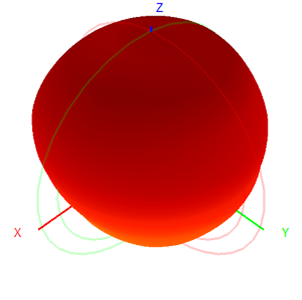

2.3 Radiation Pattern

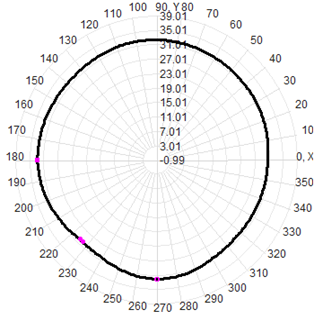

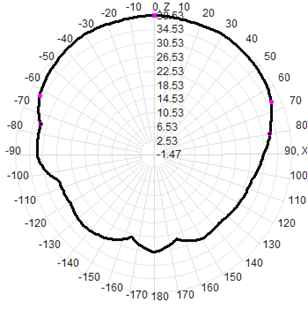

3D 2D-Horizontal 2D-Vertical

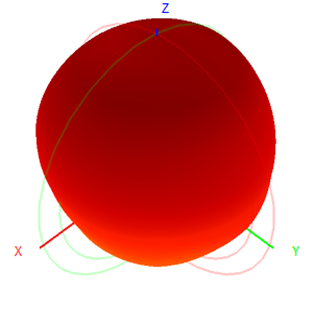

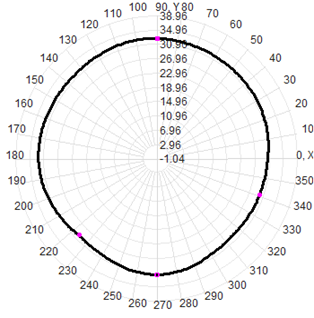

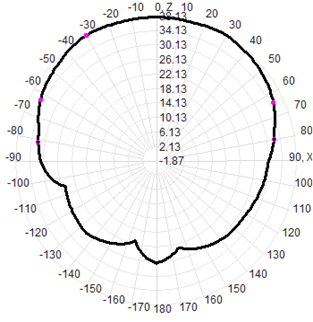

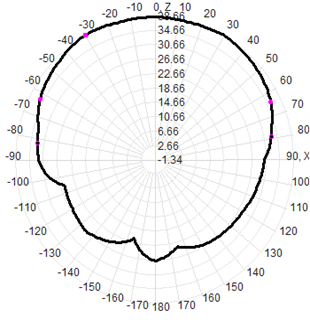

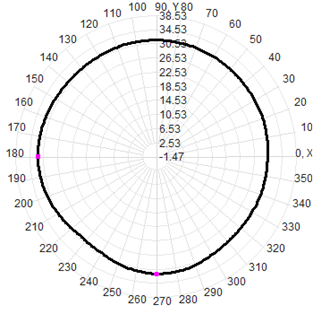

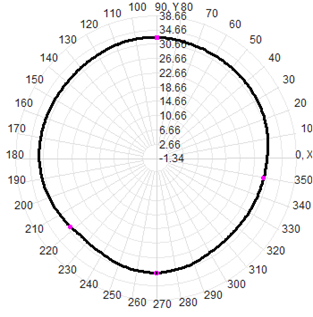

1556MHz Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna

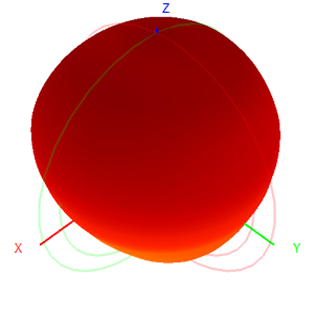

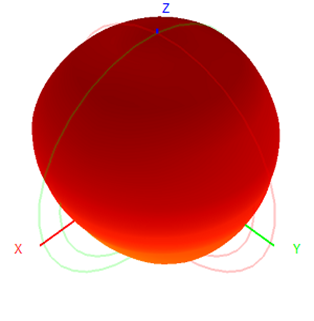

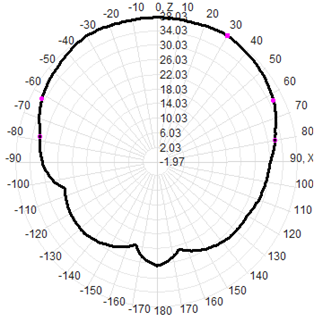

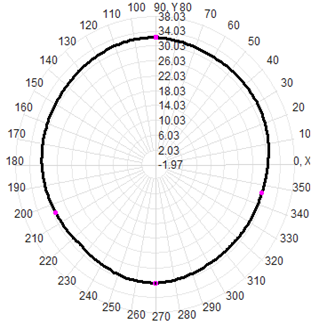

1561MHz Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna
1566MHz Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna

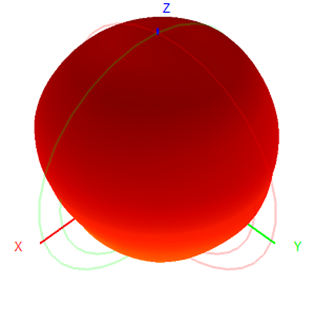

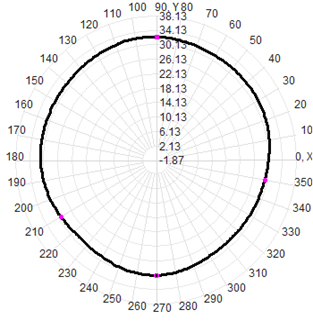

3D 2D-Horizontal 2D-Vertical

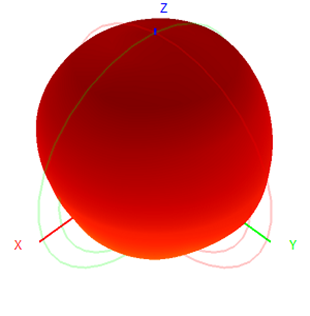

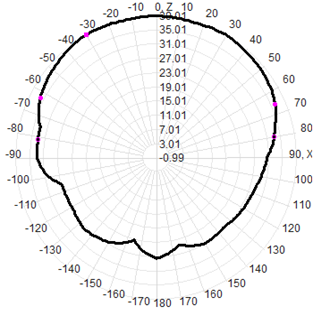

1570MHz Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna
1575MHz Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna
1580MHz Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna Leenz Satellite Positioning Antenna GPS Beidou Outdoor Timing Antenna Marine Antenna
