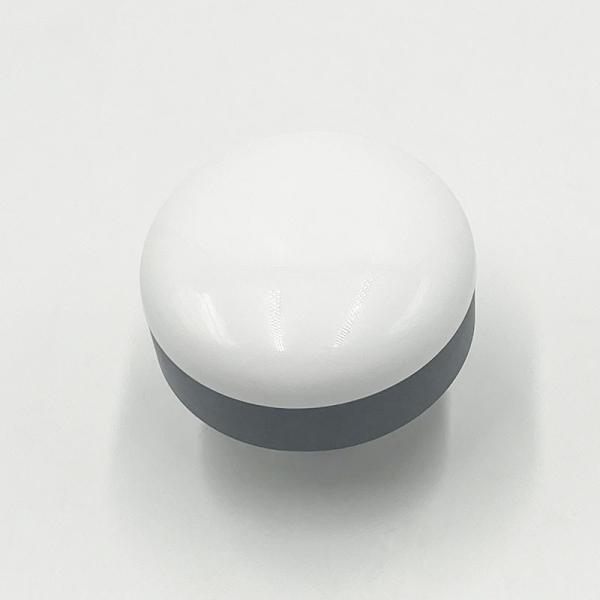

N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11091-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
1164-1286MHz; 1525-1615MHz
VSWR :
<1.5
LNA Gain :
38dB(Typ.@25℃)
Impedance :
50
Description

N male Satellite Positioning Antenna Multi-Band GNSS antenna 38dBi GPS GLONASS Beidou Galileo

1. Specification

A. Electrical Characteristics
Frequency 1164-1286MHz, 1525-1615MHz
Supported Positioning signal bands

GPS: L1/L2/L5

BDS: B1/B2/B3

GLONASS: G1/G2/G3

Galileo: E1/E5a/E5b

L-Band
Peak Gain ≥4dBi@FC,with 100mm ground plane
Impedance 50Ohm
Polarization RHCP
Axial Ratio ≤1.5 dB
Azimuth Coverage 360°
B. LNA and Filter Electrical Properties
LNA Gain 38±2dBi(Typ.@25℃)
Noise Figure ≤2.0dB@25℃,Typ.(Pre-filtered)
Output VSWR ≤1.5 : 1Typ. 2.0 : 1 Max
Operation Voltage 3-16 V DC Recommended 5.0V
Operation Current ≤45mA
ESD circuit protection IEC6100-4-2 15KV air discharge
Out-of-Band Rejection L5/E5/L2/G2/B2

＜1050MHz: ＞55dB

＜1125MHz: ＞30dB

＜1350MHz: ＞45dB
L1/E1/B1/G1

＜1450MHz: ＞40dB

＜1690MHz: ＞40dB

＜1730MHz: ＞45dB
C. Material & Mechanical Characteristics
Connector Type N-J (customizable)
Dimension φ67.5mm * 65mm
Radome material PC+ABS
Base Aluminum alloy 6061-T6
Attachment Method Four screw holes
Waterproof IP67
Weight 0.19Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Humidity ≤95%
Vibration 3 axis sweep = 15 min, 10 to 200Hz sweep: 3G
Shock Vertical axis:50G, other axes:30G

2. Antenna - S Parameter Test Data

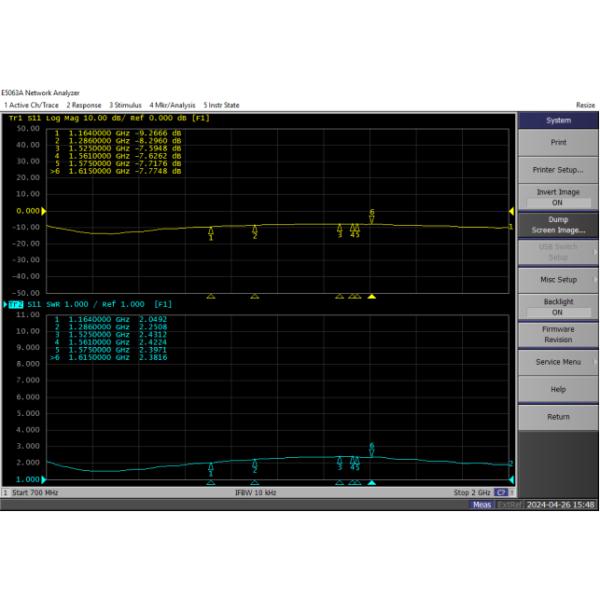

2.1 VSWR

N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo

2.2 LNA Gain:

Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi)
1160 27.9 1525 36.5
1165 30.9 1530 37.3
1170 32.7 1535 38.3
1175 34.0 1540 39.1
1180 35.1 1545 39.3
1185 36.2 1550 39.6
1190 37.0 1555 39.6
1195 37.7 1560 39.7
1200 38.5 1565 39.8
1205 39.2 1570 39.9
1210 39.6 1575 39.8
1215 40.0 1580 39.3
1220 39.9 1585 38.7
1225 39.3 1590 38.0
1230 38.5 1595 37.3
1235 37.5 1600 36.5
1240 36.5 1605 35.8
1245 35.5 1610 35.1
1250 34.7 1615 34.4
1255 34.0
1260 33.2
1265 32.5
1270 31.8
1275 31.1
1280 30.4
1285 29.7
1290 28.5
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
1160MHz N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
1220MHz N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
1290MHz N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo

3D 2D-Horizontal 2D-Vertical
1525MHz N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
1565MHz N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
1615MHz N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
N Male Satellite Positioning Antenna Multi-Band GNSS Antenna 38dBi GPS GLONASS Beidou Galileo
