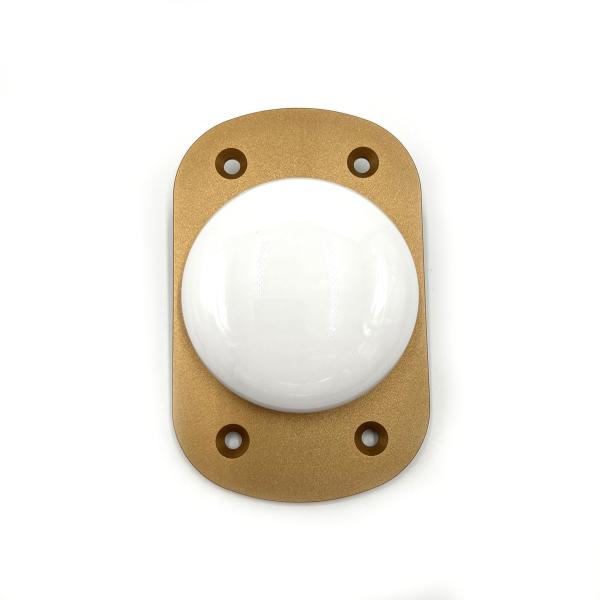

Satellite Positioning Antenna Multi-Band Gnss Antenna 35dbi Gps Glonass Beidou Galileo

1. Specification

A. Electrical Characteristics
Frequency 1164-1286MHz, 1525-1615MHz
Supported Positioning signal bands

GPS: L1/L2/L5

BDS: B1/B2/B3

GLONASS: G1/G2/G3

Galileo: E1/E5a/E5b

L-Band
Peak Gain ≥4dBi@FC,with 100mm ground plane
Impedance 50Ohm
Polarization RHCP
Axial Ratio ≤1.5 dB
Azimuth Coverage 360°
B. LNA and Filter Electrical Properties
LNA Gain 35±2dBi(Typ.@25℃)
P-1out ≥5dBm
Noise Figure ≤2.0dB@25℃,Typ.(Pre-filtered)
Output VSWR ≤1.5 : 1Typ. 2.0 : 1 Max
Operation Voltage 3-6 V DC
Operation Current ≤45mA
ESD circuit protection 15KV air discharge
Out-of-Band Rejection L5/E5/L2/G2/B2

＜1050MHz: ＞55dB

＜1125MHz: ＞30dB

＜1350MHz: ＞45dB
L1/E1/B1/G1

＜1450MHz: ＞40dB

＜1690MHz: ＞40dB

＜1730MHz: ＞45dB
C. Material & Mechanical Characteristics
Connector Type TNC connector
Dimension 119x76x27mm
Radome material PC+ABS
Base Aluminum alloy 6061-T6
Attachment Method Four screw holes
Waterproof IP67
Weight 0.2Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Humidity ≤95%
Vibration 3 axis sweep = 15 min, 10 to 200Hz sweep: 3G
Shock Vertical axis:50G, other axes:30G

2. Antenna - S Parameter Test Data

2.1 VSWR

Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo

2.2 Total Efficiency & Gain:

Frequency (MHz) 1160 1165 1170 1175 1180 1185 1190 1195 1200 1205 1210 1215 1220 1225 1230 1235 1240 1245 1250 1255 1260 1265 1270 1275 1280 1285 1290
Gain (dBi) 29.96 32.24 33.83 34.93 35.83 36.61 37.45 37.91 38.26 38.62 39.17 39.71 40.1 40.16 40.01 39.46 38.86 37.95 37.1 36.09 35.15 34.02 33.12 32.16 31.06 29.81 28.17
Frequency (MHz) 1525 1530 1535 1540 1545 1550 1555 1560 1565 1570 1575 1580 1585 1590 1595 1600 1605 1610 1615 　 　 　 　 　 　 　 　
Gain (dBi) 33.85 34.59 35.53 36.57 37.12 37.41 37.99 38.45 38.48 38.1 37.95 37.8 37.48 36.98 36.66 36.34 35.86 35.27 34.79 　 　 　 　 　 　 　 　
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
1160MHz Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo
1220MHz Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo
1290MHz Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo

3D 2D-Horizontal 2D-Vertical
1525MHz Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo
1565MHz Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo
1615MHz Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo
Multi-Band Gnss Antenna 35dbi Multi Frequency Gps Glonass Beidou Galileo
