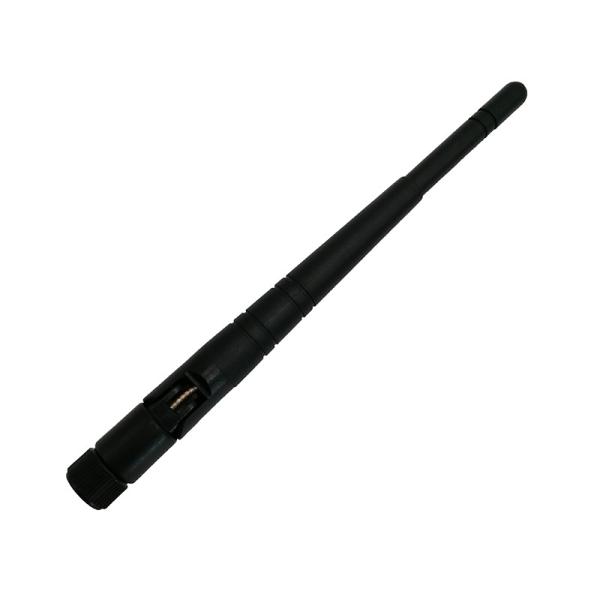

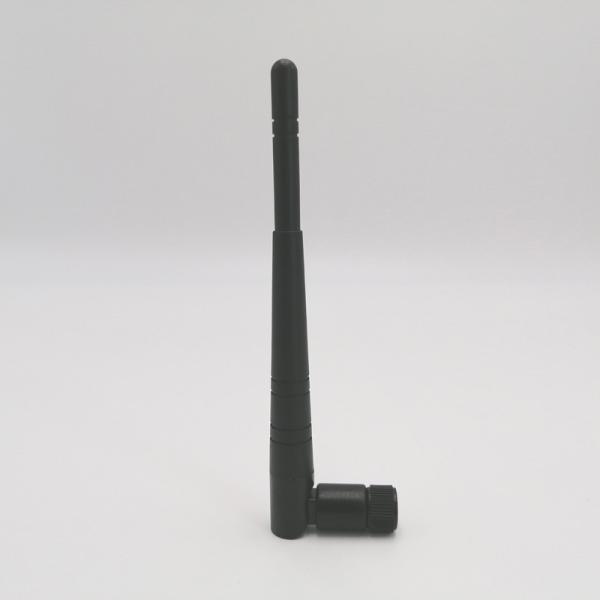

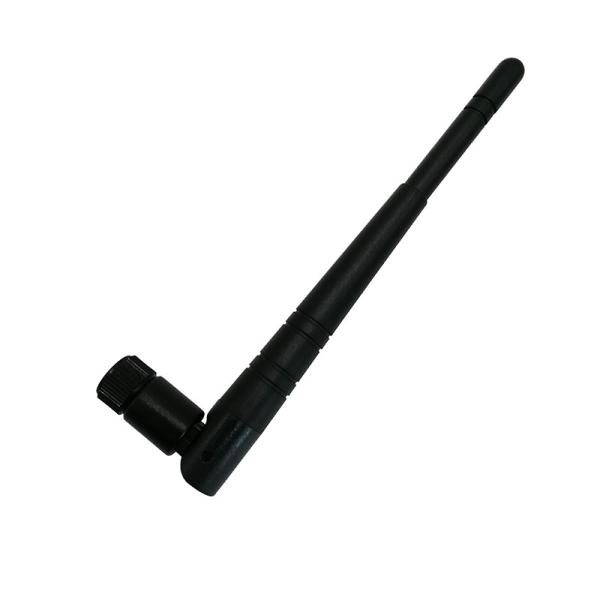

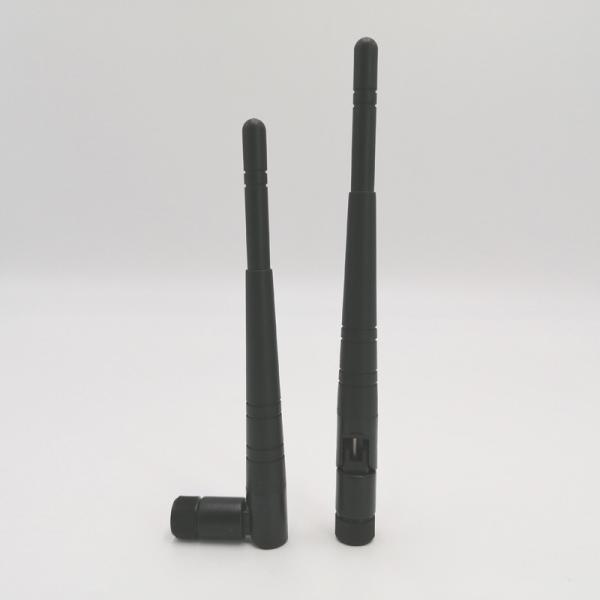

2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10460-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500/5150-5850M
VSWR :
<2
Peak Gain :
4dBi
Impedance :
50
Description

2.4G5.8G WIFI 157mm omnidirectional router external folding glue stick antenna

1. Specification

A. Electrical Characteristics
Frequency 2400-2500/5150-5850MHz
Impedance 50 Ohm
S.W.R. <2
Gain 4dBi
Efficiency ≈70%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 60°
B. Material & Mechanical Characteristics

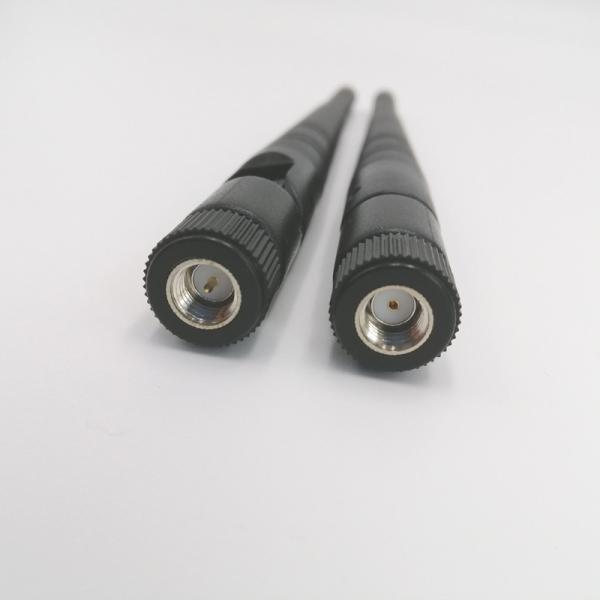

Connector Type SMA-J or RP-SMA-J
Dimension Φ13*157mm
Weight 0.015Kg
Radome material PBT+PC
C. Environmental
Operation Temperature - 40 ˚C ~ + 85˚C
Storage Temperature - 40 ˚C ~ + 85˚C


2. Antenna - S Parameter Test Data
2.1 VSWR
2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna

2.2 Total Efficiency & Gain:

Frequency (MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) 2.71 2.48 2.13 2.00 2.10 2.42 2.48 2.39 2.28 2.35 2.49
Efficiency (%) 86.03 83.37 77.70 75.36 75.74 80.76 81.70 78.67 75.47 76.24 78.28
Frequency (MHz) 5150 5200 5250 5300 5350 5400 5450 5500 5550 5600 5650 5700 5750 5800 5850
Gain (dBi) 3.03 2.86 3.15 3.45 3.43 3.73 4.03 4.11 4.05 3.86 3.86 3.84 3.67 3.93 3.86
Efficiency (%) 61.18 56.90 62.00 68.83 65.08 66.87 67.73 66.93 66.77 66.85 68.37 69.07 67.35 69.06 69.06
2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
2450MHz 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
2500MHz 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
5150MHz 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
5500MHz 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
5850MHz 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
