Satellite Positioning Antenna Multi-Band GNSS antenna 38dBi GPS GLONASS Beidou Galileo

1. Specification

A. Electrical Characteristics
Frequency 1164-1286MHz, 1525-1615MHz
Supported Positioning signal bands

GPS: L1/L2/L5

BDS: B1/B2/B3

GLONASS: G1/G2/G3

Galileo: E1/E5a/E5b

L-Band
Peak Gain ≥4dBi@FC,with 100mm ground plane
Impedance 50Ohm
Polarization RHCP
Axial Ratio ≤1.5 dB
Azimuth Coverage 360°
B. LNA and Filter Electrical Properties
LNA Gain 38±2dBi(Typ.@25℃)
Noise Figure ≤2.0dB@25℃,Typ.(Pre-filtered)
Output VSWR ≤1.5 : 1Typ. 2.0 : 1 Max
Operation Voltage 3-16 V DC
Operation Current ≤45mA
ESD circuit protection 15KV air discharge
Out-of-Band Rejection L5/E5/L2/G2/B2

＜1050MHz: ＞55dB

＜1125MHz: ＞30dB

＜1350MHz: ＞45dB
L1/E1/B1/G1

＜1450MHz: ＞40dB

＜1690MHz: ＞40dB

＜1730MHz: ＞45dB
C. Material & Mechanical Characteristics
Connector Type TNC connector
Dimension Φ90x27mm
Radome material PC+ABS
Base Aluminum alloy 6061-T6
Attachment Method Four screw holes
Waterproof IP67
Weight 0.15Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Humidity ≤95%
Vibration 3 axis sweep = 15 min, 10 to 200Hz sweep: 3G
Shock Vertical axis:50G, other axes:30G

2. Antenna - S Parameter Test Data

2.1 VSWR

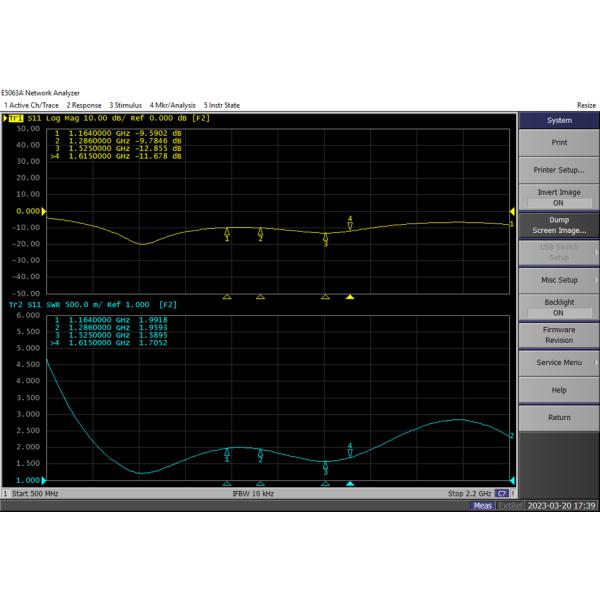

Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo

2.2 LNA Gain:

Frequency (MHz) Gain (dBi) Frequency (MHz) Gain (dBi)
1160.0 29.60 1525.0 34.00
1165.0 31.85 1530.0 34.83
1170.0 33.50 1535.0 35.80
1175.0 34.67 1540.0 36.93
1180.0 35.67 1545.0 37.57
1185.0 36.57 1550.0 37.82
1190.0 37.53 1555.0 38.35
1195.0 38.16 1560.0 38.73
1200.0 38.52 1565.0 38.65
1205.0 38.90 1570.0 38.07
1210.0 39.35 1575.0 37.78
1215.0 39.81 1580.0 37.65
1220.0 40.11 1585.0 37.40
1225.0 40.23 1590.0 36.95
1230.0 40.09 1595.0 36.66
1235.0 39.62 1600.0 36.43
1240.0 39.00 1605.0 35.95
1245.0 38.18 1610.0 35.33
1250.0 37.34 1615.0 34.80
1255.0 36.31
1260.0 35.35
1265.0 34.22
1270.0 33.20
1275.0 32.14
1280.0 31.14
1285.0 30.01
1290.0 28.58
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
1160MHz Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo
1220MHz Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo
1290MHz Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo

3D 2D-Horizontal 2D-Vertical
1525MHz Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo
1565MHz Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo
1615MHz Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo Multiband Gnss Antenna 38dBi GPS GLONASS Beidou Galileo
