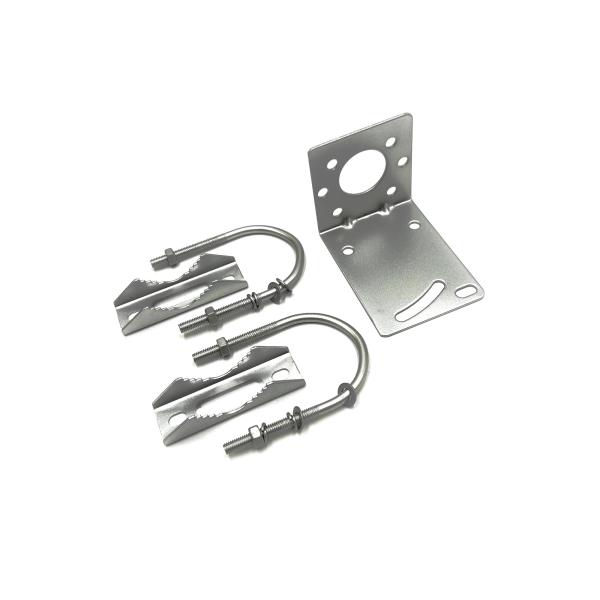

Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10886-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
1560-1620MHz; 2400-2500MHz; 5700-5900MHz
VSWR :
<1.6
Peak Gain :
8dBi/10dBi/15dBi
Impedance :
50
Description

Outdoor Waterproof Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25

1. Specification

A. Electrical Characteristics
Port Port 1 Port 2 Port 3
Frequency 1560-1620MHz 2400-2500MHz 5700-5900MHz
VSWR < 1.6 < 1.6 < 1.6
Peak Gain 8dBi 10dBi 15dBi
Impedance 50 Ohm 50 Ohm 50 Ohm
Polarization RDHP Vertical Vertical
Horizontal Beamwidth 67-72° 59-61° 32-41°
Vertical Beamwidth 70-76° 42-44° 32-35°
F/B ＞20dB ＞23dB ＞23dB
Max Power 50W 50W 50W
B. Material & Mechanical
Connector Type SMA-K*3
Dimension 225*225*25mm
Weight 0.86Kg
Radome material ABS
C. Environmental
Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data
2.1 VSWR
Port1

Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25

Port2

Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25

Pot3

Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
2.2 Total Efficiency & Gain:

Port 1 Port 2 Port 3
Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi)
1560 7.6 2400 10.6 5700 14.0
1570 7.0 2410 10.6 5725 13.8
1580 8.4 2420 10.8 5750 13.9
1590 8.7 2430 10.8 5775 13.9
1600 7.3 2440 10.7 5800 14.0
1610 8.2 2450 10.8 5825 14.1
1620 8.1 2460 10.8 5850 14.4
2470 10.8 5875 15.0
2480 10.8 5900 15.0
2490 10.8
2500 10.8
2.3 Radiation Pattern
Port 1 2D-Horizontal 2D-Vertical Horizontal & Vertical
Axis Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
1560MHz Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
1590MHz Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
1620MHz Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
Port 2 2D-Horizontal 2D-Vertical Horizontal & Vrtical
Axis Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
2400MHz Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
2450MHz Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
2500MHz Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25

Port 3 2D-Horizontal 2D-Vertical Horizontal & Vertical
Axis Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
5700MHz Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
5800MHz Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
5900MHz Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
