Satellite Positioning Antenna GNSS Passive Antenna 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130

1. Specification

A. Electrical Characteristics
Frequency 1561.098MHz; 1575.42MHz
VSWR <1.5
Peak Gain 3dBi
Impedance 50Ohm
Efficiency ≈79%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 39-41°
Power 5W
B. Material & Mechanical Characteristics

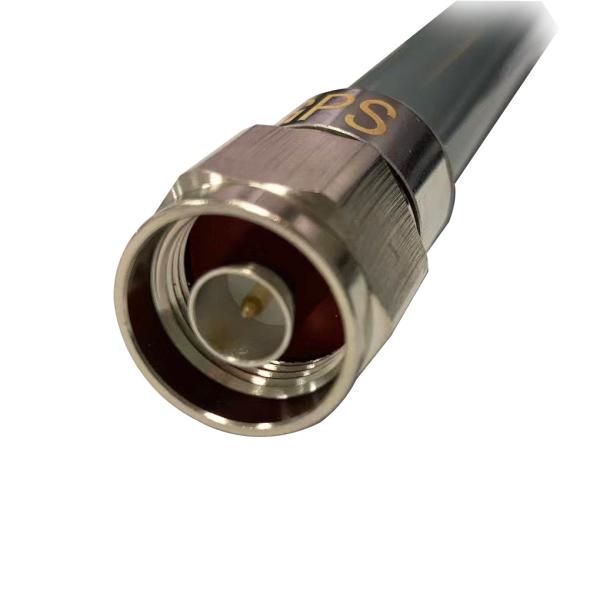

Connector Type N connector
Dimension Φ16x130mm
Radome material Fiberglass
Weight 0.070Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C

2. Antenna - S Parameter Test Data

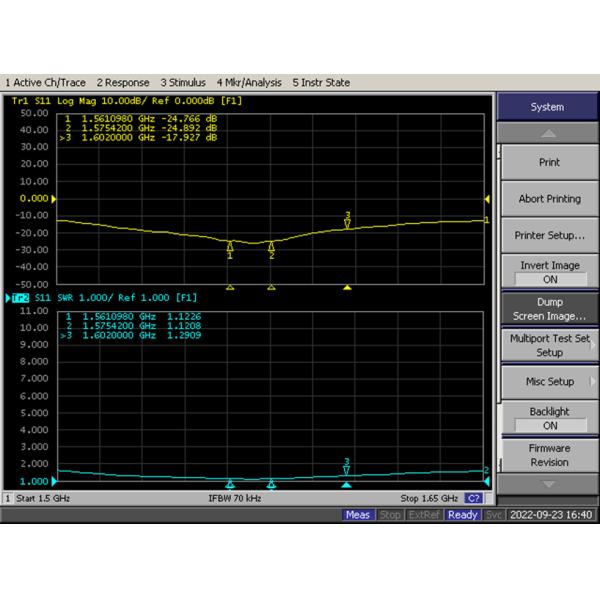

2.1 VSWR

Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130

2.2 LNA Gain:

Frequency(MHz) 1558.0 1559.0 1560.0 1561.0 1562.0 1563.0 1564.0 1565.0
Gain (dBi) 2.84 2.85 2.85 2.84 2.83 2.82 2.79 2.75
Efficiency (%) 85.33 84.74 84.12 83.46 82.80 82.12 81.41 80.67
Frequency(MHz) 1570.0 1571.0 1572.0 1573.0 1574.0 1575.0 1576.0 1577.0 1578.0 1579.0 1580.0
Gain (dBi) 2.50 2.50 2.51 2.52 2.53 2.54 2.47 2.44 2.41 2.39 2.39
Efficiency (%) 76.45 76.88 77.38 77.92 78.43 78.94 78.07 77.24 76.52 75.95 75.57
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical

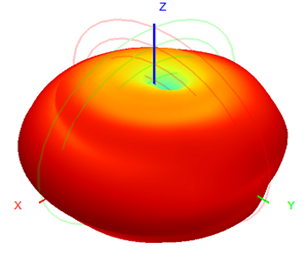

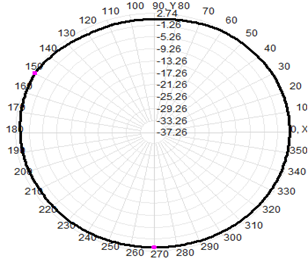

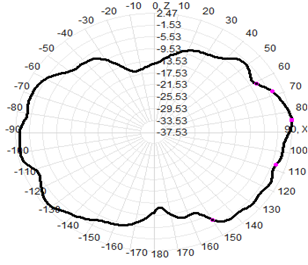

1561MHz Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130 Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130 Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130

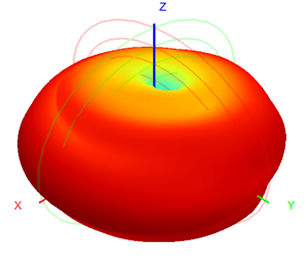

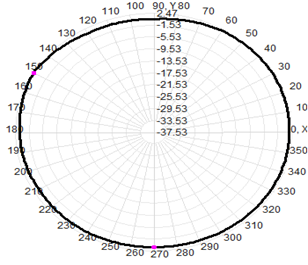

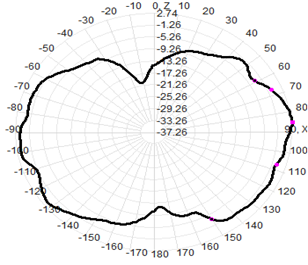

1575MHz Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130 Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130 Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130
