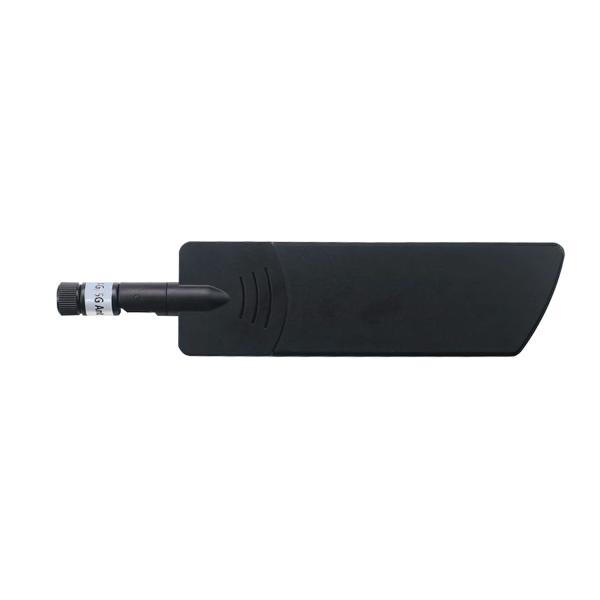

900 Mhz Rubber Duck Antenna Wifi Multi Band 4G 5G Antenna 700-4900MHz 4dBi 13x194
900 Mhz Rubber Duck Antenna Wifi Multi Band 4G 5G Antenna 700-4900MHz 4dBi 13x194
900 Mhz Rubber Duck Antenna Wifi Multi Band 4G 5G Antenna 700-4900MHz 4dBi 13x194
900 Mhz Rubber Duck Antenna Wifi Multi Band 4G 5G Antenna 700-4900MHz 4dBi 13x194
Specifications
Brand Name :
Leenz
Model Number :
LZANT-13194-B
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
700-960Hz; 1710-2690MHz; 3300-3800MHz; 4200-4900M
VSWR :
<5.0
Peak Gain :
4dBi
Impedance :
50
Description

Indoor Antenna External Antenna Rubber Duck Antenna Multi Band 4G 5G Antenna 700-4900MHz 4dBi 13x194

1. Specification

A. Electrical Characteristics
Frequency 700-960Hz; 1710-2690MHz; 3300-3800MHz; 4200-4900MHz
S.W.R. 5.0 Max@700-960Hz; 3.0 Max@1710-2690MHz; 5.0 Max@3300-3800MHz; 4200-4900M
Antenna Gain

4G: 1.7dBi@700-960Hz

3.9dBi@1710-2690MHz

5G: 4.4dBi@3300-3800MHz

4.3dBi@4200-4900MHz
Polarization Linear
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Material of Radiator PCB
Material of Plastic PC+ABS
Cable Type RG-178 Cable
Connector Type SMA Male Connector
Connector Pull Test >=3.0Kg
Connector Torque Test 300~1000 g.cm
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

900 Mhz Rubber Duck Antenna Wifi Multi Band 4G 5G Antenna 700-4900MHz 4dBi 13x194
