6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm
6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm
6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm
6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10001-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz
VSWR :
<2.0
Peak Gain :
5.5dBi
Impedance :
50
Description

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna FRP Antenna Right Angle 2.4Ghz WIFI 5.5dBi 350mm

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 5.5dBi
Efficiency ≈80%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 25°±5°
Max Power 50W
B. Material & Mechanical Characteristics

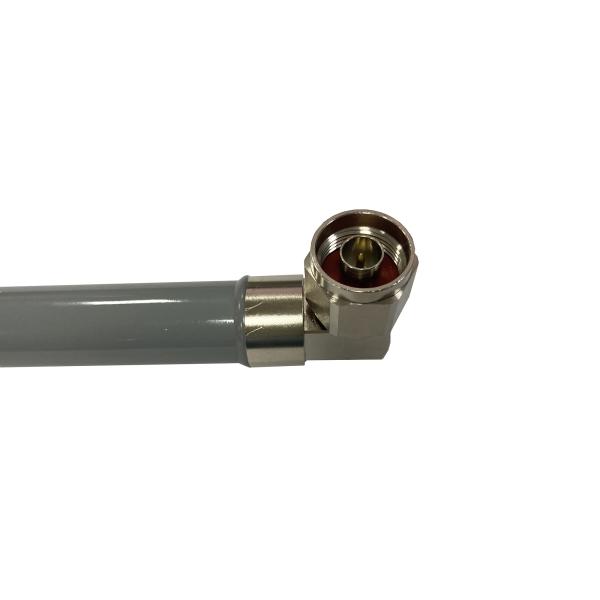

Connector Type N connector
Dimension Φ18.5*350mm
Weight 0.181Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data
2.1 VSWR

6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm


2.2 Total Efficiency & Gain:

Frequency(MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) 4.85 5.10 5.30 5.36 5.28 5.32 5.35 5.33 5.42 5.36 5.27
Efficiency (%) 80.42 81.50 81.73 81.00 80.27 81.39 81.00 79.08 78.93 77.99 76.82
6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm
2.3 Radiation Pattern

3D 2D-Horizontal 2D-Vertical
2400MHz 6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm 6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm 6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm
2450MHz 6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm 6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm 6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm
2500MHz 6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm 6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm 6m 70cm Omnidirectional Antenna WIFI FRP Antenna Right Angle 2.4Ghz 5.5dBi 350mm
