Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10104-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
617-960MHz; 1710-6000MHz
VSWR :
<4.2/<3.0
Peak Gain :
1.5dBi/4.5dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 617-960MHz 1710-6000MHz
Impedance 50 Ohm 50 Ohm
S.W.R. <4.2 <3.0
Gain 1.5dBi 4.5dBi
Efficiency ≈34% ≈66%
Horizontal Beamwidth 360° 360°
Vertical Beamwidth 38°@868MHz 37°@1980MHz
Polarization Linear Linear
Max Power 50W 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ25*200mm
Weight 0.12Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C


2. Antenna - S Parameter Test Data

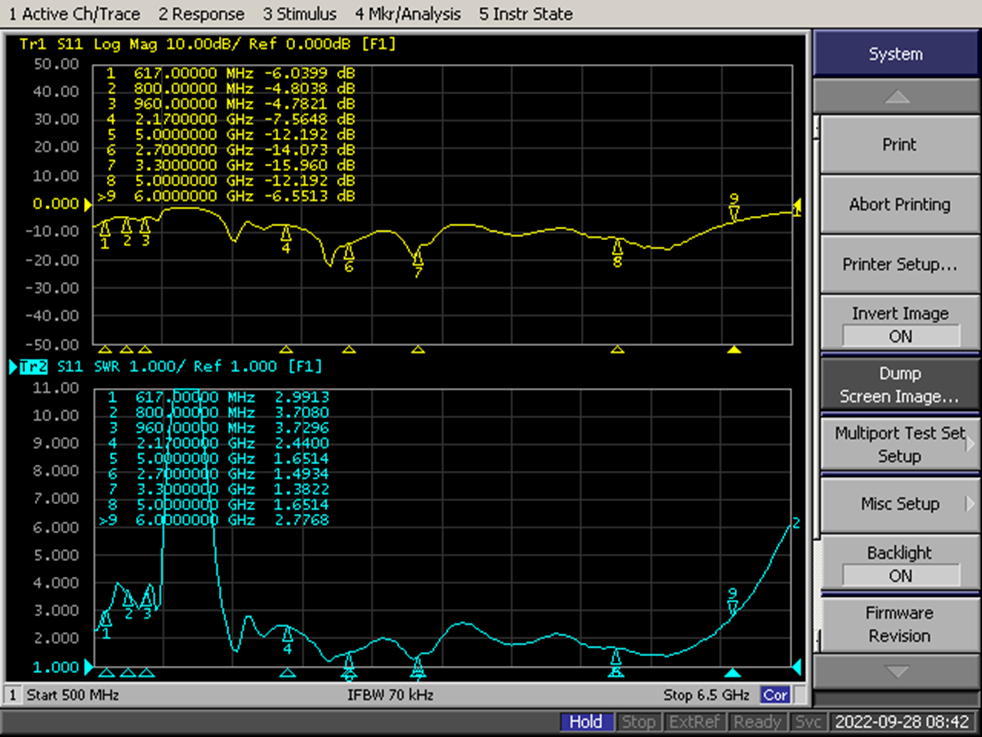

2.1 VSWR
Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200

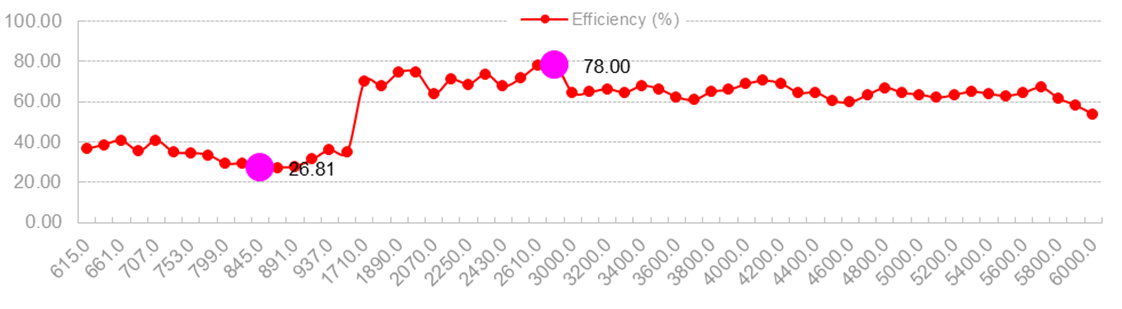

2.2 Total Efficiency & Gain:

Frequency (MHz) 615 638 661 684 707 730 753 776 799 822 845 868 891 914 937 960
Gain (dBi) 0.50 -0.06 -0.61 -1.05 -0.68 -1.14 -1.21 -1.40 -1.51 -1.55 -1.86 -1.39 -1.07 0.18 1.45 1.63
Efficiency (%) 36.43 38.57 40.58 35.45 40.56 34.90 34.44 33.43 29.27 29.08 26.81 27.19 27.75 31.25 36.07 34.63
Frequency (MHz) 1710 1800 1890 1980 2070 2160 2250 2340 2430 2520 2610 2700
Gain (dBi) 2.13 2.58 2.75 2.73 2.17 2.86 3.06 3.49 3.69 3.62 4.23 3.48
Efficiency (%) 69.99 67.64 74.36 74.33 63.88 70.86 68.54 73.47 67.47 71.50 77.74 78.00
Frequency (MHz) 3000 3100 3200 3300 3400 3500 3600 3700 3800 3900 4000 4100 4200 4300 4400 4500
Gain (dBi) 3.55 3.94 3.76 3.77 3.14 3.78 3.42 3.05 2.89 2.33 2.89 3.15 3.35 3.25 3.77 4.44
Efficiency (%) 64.20 64.64 66.16 64.49 67.76 66.03 62.13 60.80 64.81 65.76 68.69 70.34 68.90 64.23 64.39 60.27
Frequency (MHz) 4600 4700 4800 4900 5000 5100 5200 5300 5400 5500 5600 5700 5800 5900 6000
Gain (dBi) 4.04 3.34 3.00 2.72 2.94 3.64 3.65 3.64 3.05 3.44 4.22 4.70 4.60 4.11 4.08
Efficiency (%) 59.66 63.31 66.79 64.23 63.40 61.91 63.27 64.90 63.68 62.76 64.39 66.90 61.43 57.97 53.46
Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
615MHz Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
868MHz Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
960MHz Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
3D 2D-Horizontal 2D-Vertical
1710MHz Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
2250MHz Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
2700MHz Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
3D 2D-Horizontal 2D-Vertical
3000MHz Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
4500MHz Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
6000MHz Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
