Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm
Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm
Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm
Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm
Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm
Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10313-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz
VSWR :
<2.0
Peak Gain :
4dBi
Impedance :
50
Description

Omni Antenna Fiber Glass antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 4dBi
Efficiency ≈79%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 45°±5°
Max Power 50W
B. Material & Mechanical Characteristics

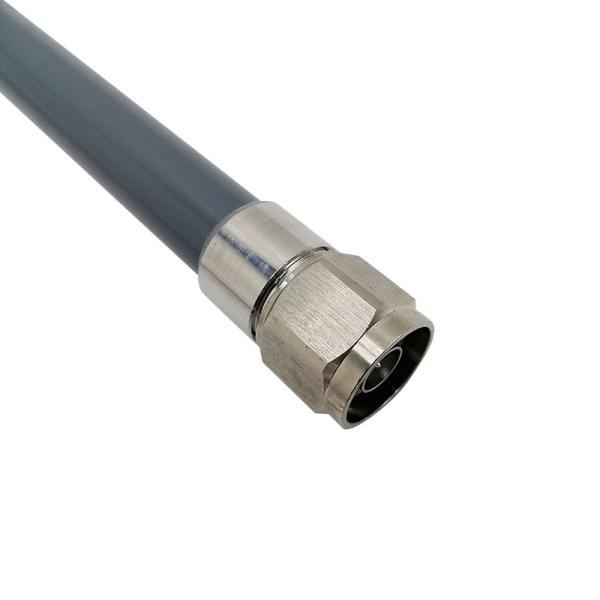

Connector Type N connector
Dimension Φ16*200mm
Weight 0.093Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

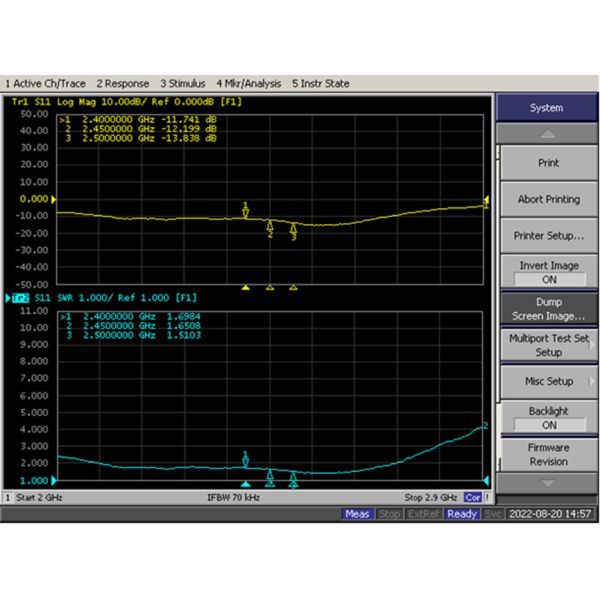

2.1 VSWR

Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm

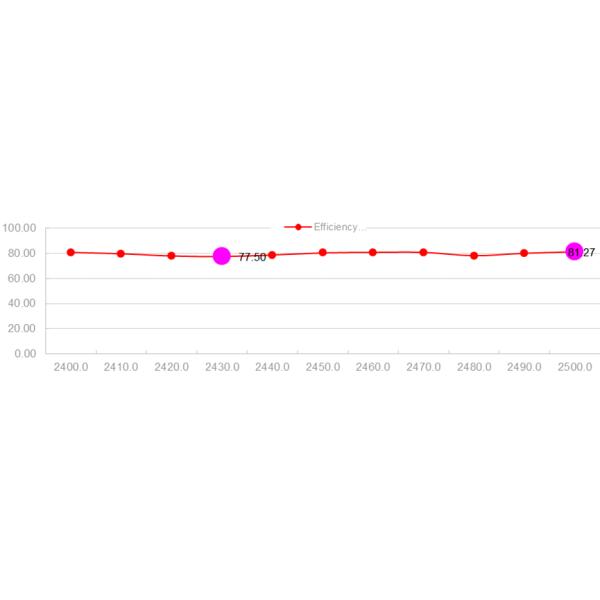

2.2 Total Efficiency & Gain:

Frequency 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
E-Total Peak Gain (dBi) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Efficiency (%) 3.00 2.99 2.99 3.22 3.45 3.60 3.64 3.65 3.64 3.81 3.84
Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm

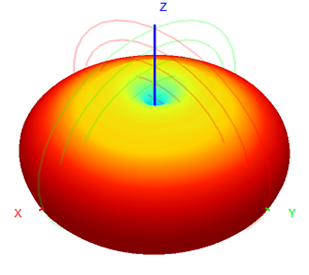

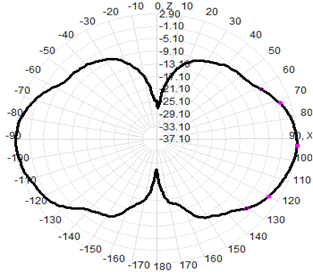

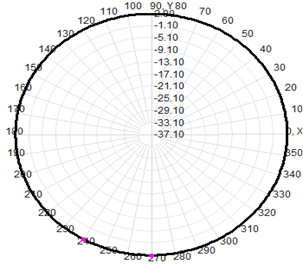

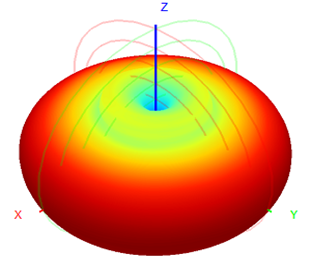

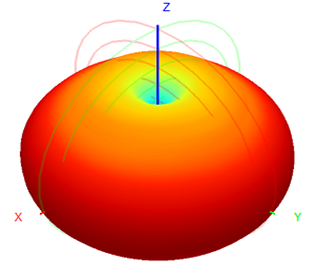

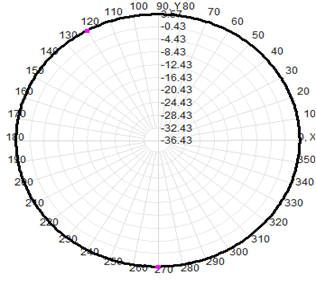

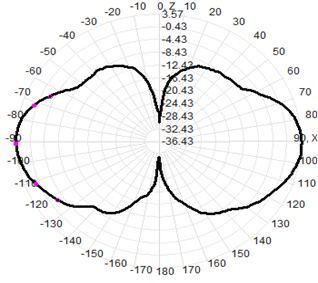

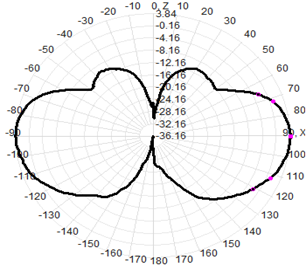

2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm
2450MHz Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm
2500MHz Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm Omni Fiberglass Antenna Wireless Omni Antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm
