Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna
Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna
Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna
Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10421-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
900-930MHz
VSWR :
<1.5
Peak Gain :
2dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 900-930MHz
Impedance 50 Ohm
S.W.R. <1.5
Gain 2dBi
Efficiency ≈85%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 70°±5°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ16*200mm
Weight 0.09Kg
Radome Materials Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C


2. Antenna - S Parameter Test Data

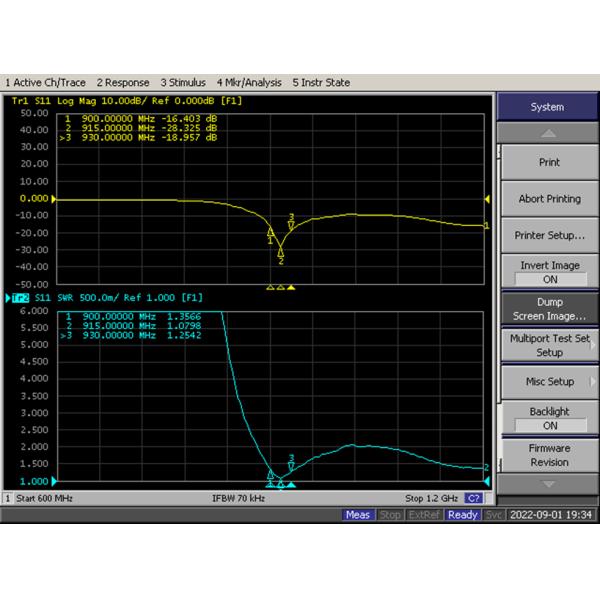

2.1 VSWR
Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna

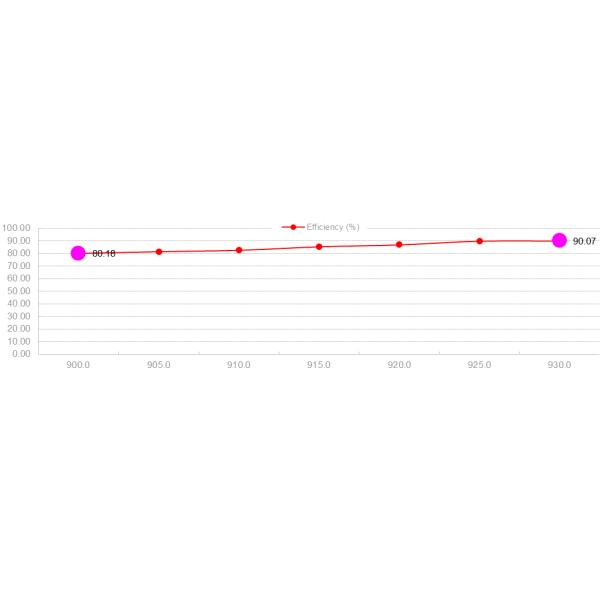

2.2 Total Efficiency & Gain:

Frequency(MHz) 900.0 905.0 910.0 915.0 920.0 925.0 930.0
Gain (dBi) 1.84 2.01 2.10 2.23 2.24 2.34 2.34
Efficiency (%) 80.18 81.53 82.65 85.44 86.96 89.95 90.07
Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
900MHz Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna
915MHz Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna
930MHz Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna Fiberglass 915MHz 2dBi Outdoor Omnidirectional Antenna
