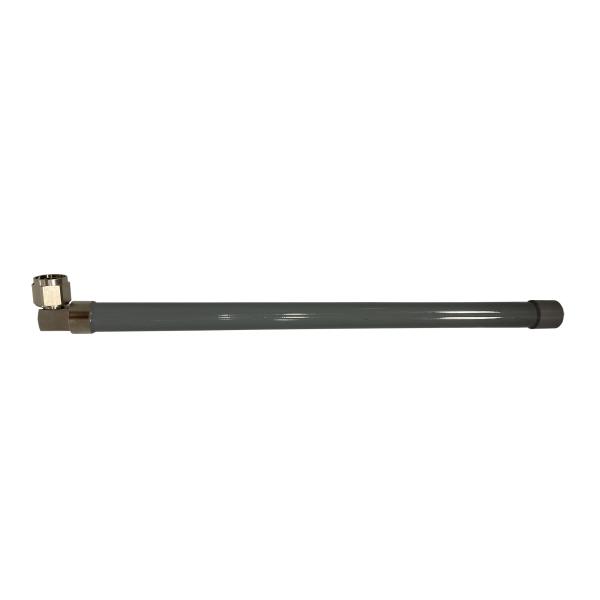

High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm
High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm
High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm
High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10001-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz
VSWR :
<2.0
Peak Gain :
5.5dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 5.5dBi
Efficiency ≈80%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 25°±5°
Max Power 50W
B. Material & Mechanical Characteristics

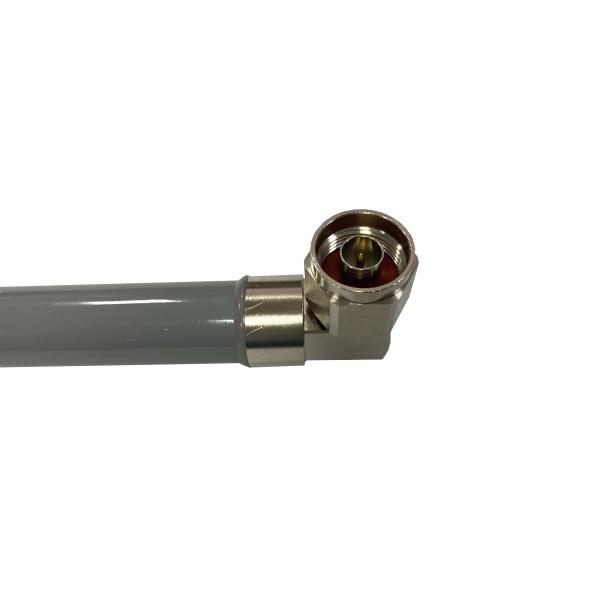

Connector Type N connector
Dimension Φ18.5*350mm
Weight 0.181Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

2.1 VSWR

High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm

2.2 Total Efficiency & Gain:

Frequency(MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) 4.85 5.10 5.30 5.36 5.28 5.32 5.35 5.33 5.42 5.36 5.27
Efficiency (%) 80.42 81.50 81.73 81.00 80.27 81.39 81.00 79.08 78.93 77.99 76.82
High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm
2450MHz High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm
2500MHz High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm High Gain Fiber Glass FRP Outdoor Omnidirectional Antenna WIFI 18.5x350mm
