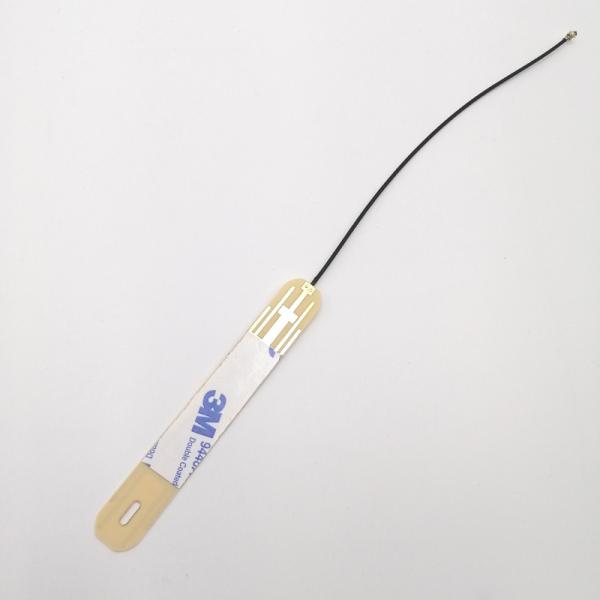

2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10083-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz; 5150-5850MHz
VSWR :
<2.0
Peak Gain :
5dBi
Impedance :
50 OHM
Description

2.4/5.8G wifi6 dual-band built-in ceramic PCB antenna IPEX

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz 5150-5850MHz
S.W.R. <= 2.0 <= 2.0
Antenna Gain 3dBi 5dBi
Efficiency ≈70% ≈70%
Polarization Linear Linear
Horizontal Beamwidth 360° 360°
Vertical Beamwidth 40±5° 25±10°
Impedance 50 Ohm
Max Power 50W
B. Material & Mechanical Characteristics
Cable Type RF1.37 Cable L=150mm
Connector Type IPEX-1
Dimension 90*14mm
Weight 0.003Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi) Efficiency (%)
2400 3.2 62.1
2410 3.3 62.7
2420 3.2 61.7
2430 3.0 62.5
2440 2.6 62.0
2450 2.4 62.2
2460 2.4 64.2
2470 2.4 64.8
2480 2.1 61.8
2490 1.8 60.2
2500 1.8 60.8
5150 3.6 53.7
5200 3.4 52.1
5250 3.4 53.2
5300 3.9 56.9
5350 4.0 56.0
5400 3.7 52.3
5450 3.6 53.9
5500 3.7 55.0
5550 3.3 56.2
5600 3.0 56.9
5650 2.9 58.8
5700 2.7 58.8
5750 3.0 63.6
5800 3.0 61.2
5850 2.8 60.1
5900 2.8 62.0
5950 2.7 61.1
6000 3.5 67.9
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
2450MHz 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
2500MHz 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX

5.8G 3D 2D-Horizontal 2D-Vertical
5150MHz 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
5500MHz 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
5850MHz 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX 2.4/5.8G Embedded Antenna Pcb Wifi Dual-Band Built-In Ceramic PCB Antenna IPEX
