2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna
2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna
2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna
2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna
2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna
2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10793-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz; 5150-5850MHz
VSWR :
<2.0
Peak Gain :
3dBi
Impedance :
50 OHM
Description

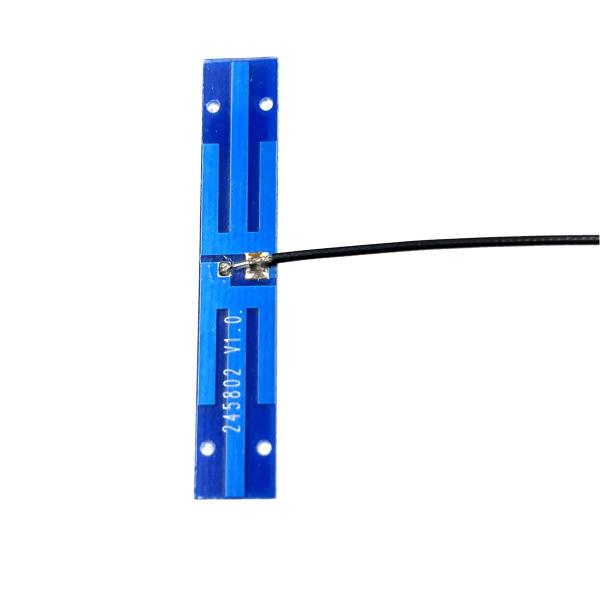

2.4G5.8G dual-band wifi Bluetooth built-in laptop antenna IPEX-1 omnidirectional high-gain 3dbi PCB antenna

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz 5150-5850MHz
S.W.R. <= 2.0 <= 2.0
Antenna Gain 2dBi 3dBi
Efficiency ≈75% ≈66%
Polarization Linear Linear
Horizontal Beamwidth 360° 360°
Vertical Beamwidth 89-94° 45-65°
Impedance 50 Ohm
Max Power 50W
B. Material & Mechanical Characteristics
Cable Type RF1.13 Cable
Connector Type MHF1 Plug
Dimension 51.5*9mm
Weight 0.001Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna

2.2 Total Efficiency & Gain:

Frequency (MHz) Gain (dBi) Efficiency (%)
2400 2.3 80.6
2410 2.2 77.8
2420 1.9 74.5
2430 1.8 73.0
2440 1.7 72.8
2450 1.9 74.7
2460 2.0 76.8
2470 2.0 76.4
2480 1.9 72.7
2490 1.9 71.1
2500 2.1 74.0
5150 2.6 60.6
5200 2.6 60.0
5250 2.6 62.7
5300 2.7 68.6
5350 2.5 68.7
5400 2.3 65.1
5450 2.2 66.3
5500 2.0 64.5
5550 2.0 63.5
5600 1.9 63.3
5650 1.9 65.4
5700 1.8 63.7
5750 2.3 69.5
5800 2.7 75.0
5850 2.9 77.2
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna
2450MHz 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna
2500MHz 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna

5.8G 3D 2D-Horizontal 2D-Vertical
5150MHz 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna
5500MHz 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna
5850MHz 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna 2.4G 5.8G Dual-Band Wifi Bluetooth Built-In Laptop Antenna IPEX-1 Omnidirectional High-Gain 3dbi PCB Antenna
