Specifications
Brand Name :
Leenz
Model Number :
LZANT-10779-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
700-960MHz; 1710-2700MHz
VSWR :
<3.0
Peak Gain :
3dBi
Impedance :
50 OHM

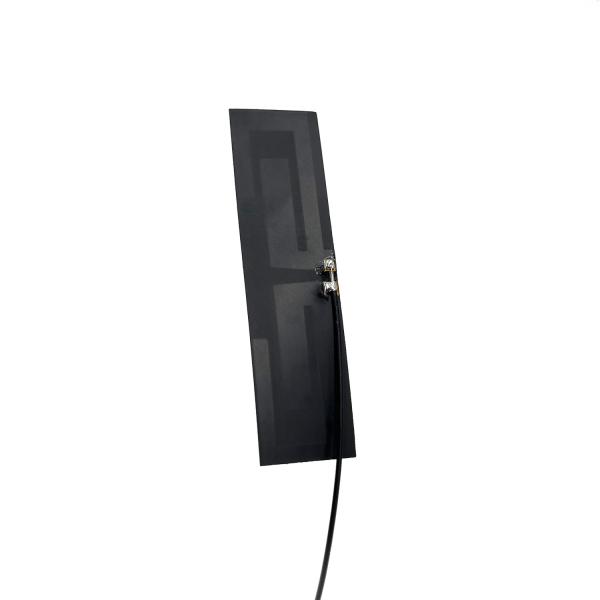

Description

3G4G5G built-in FPC antenna NB-IOT GSM 2G 3G4G5G full frequency universal soft PCB built-in IPEX flexible antenna
1. Specification

A. Electrical Characteristics
Frequency700-960MHz; 1710-2700MHz
S.W.R.<= 3.0
Antenna Gain-2~3dBi
PolarizationLinear
Horizontal Beamwidth360°
Vertical Beamwidth20-90°
Impedance50 Ohm
Max Power50W
B. Material & Mechanical Characteristics
Cable TypeRF1.13 Cable
Connector TypeMHF1 Plug
Dimension81*21mm
Weight0.001Kg
C. Environmental
Operation Temperature- 40 ˚C ~ + 65 ˚C
Storage Temperature- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna

2.2 Total Efficiency & Gain:

Frequency(MHz)Gain(dBi)Efficiency (%)
690-2.615.3
720-2.217.4
750-2.020.6
780-1.425.8
810-1.825.3
840-1.826.5
870-1.231.7
900-0.139.1
9300.744.0
9601.753.3
1700-0.536.5
18001.551.9
19003.161.5
20003.665.1
21003.266.6
22002.062.0
23000.953.7
24000.752.1
25000.648.5
26000.744.1
27000.445.9
2.3 Radiation Pattern
3D2D-Horizontal2D-Vertical
690MHz2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna
840MHz2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna
960MHz2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna


3D2D-Horizontal2D-Vertical
1700MHz2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna
2200MHz2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna
2700MHz2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna2G 3G 4G 5G Built-In FPC Antenna NB-IOT GSM Full Frequency Universal Soft PCB Built-In IPEX Flexible Antenna
