LTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 Antenna
LTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 Antenna
LTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 Antenna
LTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 Antenna
LTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 Antenna
LTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10790-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
700-960MHz; 1710-2700MHz
VSWR :
<2.5
Peak Gain :
2dBi
Impedance :
50 OHM
Description

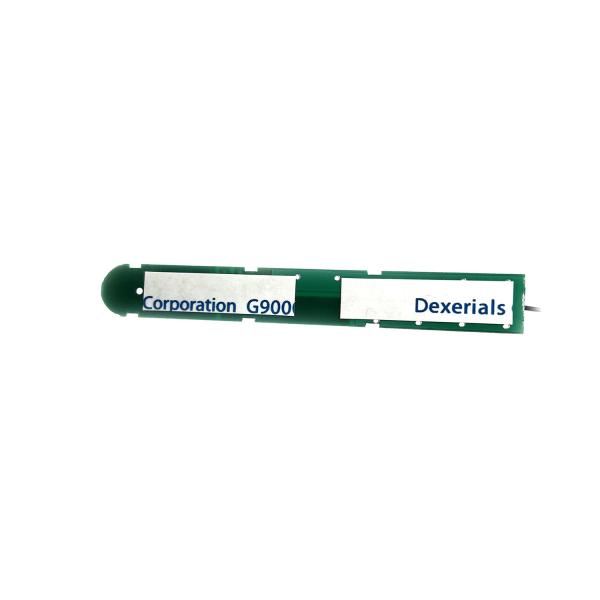

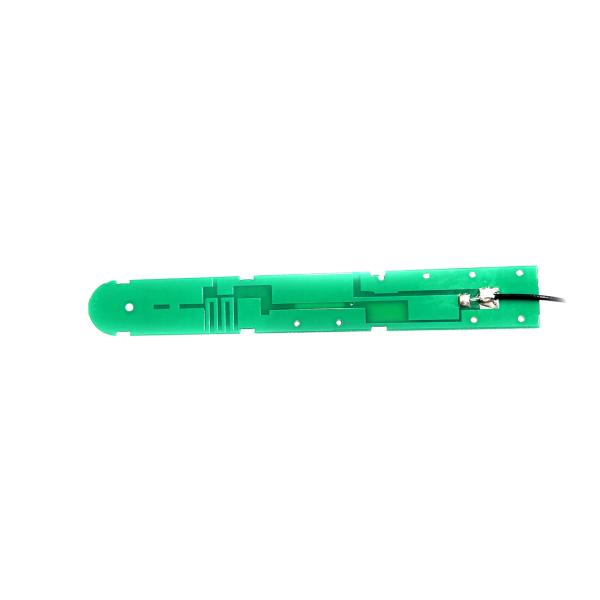

LTE built-in antenna 4G built-in PCB antenna gsm gprs 2G 3G LTE 4G NB built-in antenna 3M adhesive ipex-1 antenna
1. Specification

A. Electrical Characteristics
Frequency700-960MHz1710-2700MHz
S.W.R.<= 2.0<= 2.5
Antenna Gain1dBi2dBi
Efficiency≈47%≈47%
PolarizationLinearLinear
Horizontal Beamwidth360°360°
Vertical Beamwidth35-95°40-95°
Impedance50 Ohm
Max Power50W
B. Material & Mechanical Characteristics
Cable TypeRF1.13 Cable
Connector TypeMHF1 Plug
Dimension106.5*14mm
Weight0.003Kg
C. Environmental
Operation Temperature- 40 ˚C ~ + 65 ˚C
Storage Temperature- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
LTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 Antenna

2.2 Total Efficiency & Gain:

Frequency (MHz)Gain (dBi)Efficiency (%)
690-0.630.5
720-0.137.6
7500.543.1
7800.747.9
8100.549.5
8400.446.9
8700.345.8
9001.153.6
9300.753.2
9601.962.9
17002.349.3
18001.545.3
19001.450.1
20001.754.3
21001.854.4
22001.746.2
23000.735.3
24000.741.5
25000.846.2
26000.645.6
2700-0.440.6
2.3 Radiation Pattern
3D2D-Horizontal2D-Vertical
700MHzLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 AntennaLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 AntennaLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 Antenna
840MHzLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 AntennaLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 AntennaLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 Antenna
960MHzLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 AntennaLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 AntennaLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 Antenna

5.8G3D2D-Horizontal2D-Vertical
1710MHzLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 AntennaLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 AntennaLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 Antenna
2200MHzLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 AntennaLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 AntennaLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 Antenna
2700MHzLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 AntennaLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 AntennaLTE Built-In Antenna 4G Built-In PCB Antenna Gsm Gprs 2G 3G LTE 4G NB 3M Adhesive Ipex-1 Antenna
