4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm
4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm
4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm
4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10176-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
700-960MHz; 1710-2700
VSWR :
<4.6
Peak Gain :
4.2dBi
Impedance :
50 OHM
Description

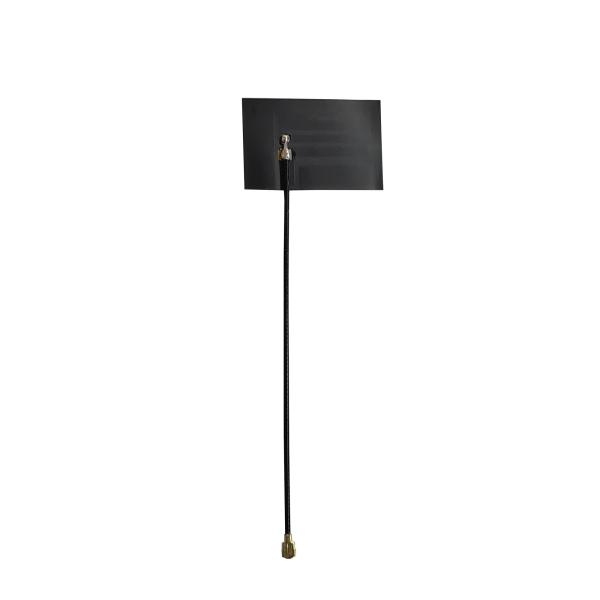

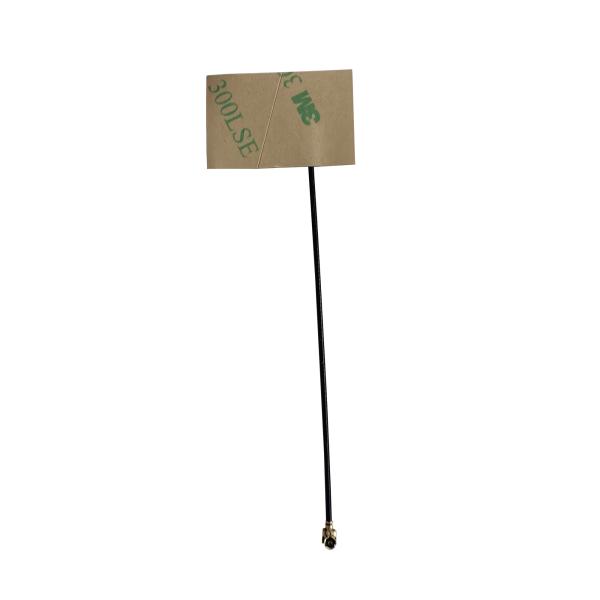

4G Lte Embedded Antenna Built In Antenna FPC Antenna MHF1 Plug 1.13 Cable 30×20

1. Specification

A. Electrical Characteristics
Frequency 700-960MHz 1710-2700MHz
S.W.R. <4.6 <2.0
Antenna Gain 2.3dBi 4.2dBi
Efficiency ≈50% ≈50%
Polarization Linear
Impedance 50 Ohm
Max Power 50W
B. Material & Mechanical Characteristics
Cable Type RF1.13 Cable
Connector Type MHF1 Plug
Dimension 30*20mm
Weight 0.001Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm

2.2 Total Efficiency & Gain:

Frequency (MHz) 700 720 740 760 780 800 820 840 860 880 900 920 940 960
Gain (dBi) -2.84 -2.87 -2.46 -2.16 -2.42 -1.56 -1.41 -1.77 -1.76 -1.08 -0.36 0.28 2.17 2.32
Efficiency (%) 23.35 23.42 27.17 31.02 30.82 33.02 33.33 29.57 27.9 31.83 36.31 38.3 53.76 55.32

Frequency (MHz) 1710 1800 1900 2000 2100 2200 2300 2400 2500 2600 2690
Gain (dBi) 2.21 3.01 3.06 3.27 4.23 3.68 2.97 3.08 3.18 3.67 3.74
Efficiency (%) 50.59 59.86 51.75 48.32 59.14 59.57 49.95 47.05 44.23 46.24 56.66

4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm

2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
700MHz 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm
800MHz 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm
960MHz 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm

3D 2D-Horizontal 2D-Vertical
1700MHz 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm
2400MHz 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm
2690MHz 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm 4G Lte Embedded Antenna Design Built In Antenna 4G FPC Antenna MHF1 Plug 1.13 Cable 30×20mm
