Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm
Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm
Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm
Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10663-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
3700-4200MHz
VSWR :
<2.0
Peak Gain :
5dBi
Impedance :
50
Description

UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <= 2.0
Antenna Gain 5dBi
Efficiency ≈65%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 23-28°
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Connector Type N Male
Dimension φ20*218mm
Color Black
Weight 0.055Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm

2.2 Total Efficiency & Gain

Frequency (MHz) 3700.0 3750.0 3800.0 3850.0 3900.0 3950.0 4000.0 4050.0 4100.0 4150.0 4200.0
Gain (dBi) 4.87 4.52 4.44 4.52 4.56 4.68 4.38 4.27 4.94 5.15 5.54
Efficiency (%) 63.98 61.97 62.59 63.76 62.90 66.80 65.66 62.28 66.00 64.12 66.35
Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm

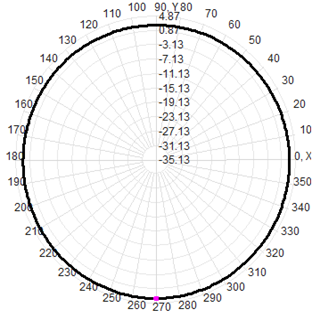

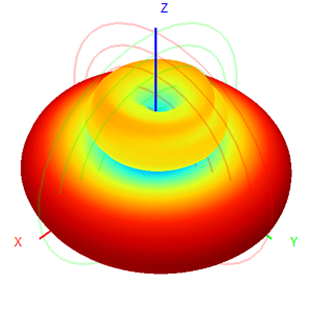

2.2 Radiation Pattern

3D 2D-Horizontal 2D-Vertical
3700MHz Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm
3950MHz Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm
4200MHz Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm Ultra Wideband Antenna UWB Antenna External Antenna 3700-4200MHz 5dBi 20x218mm
