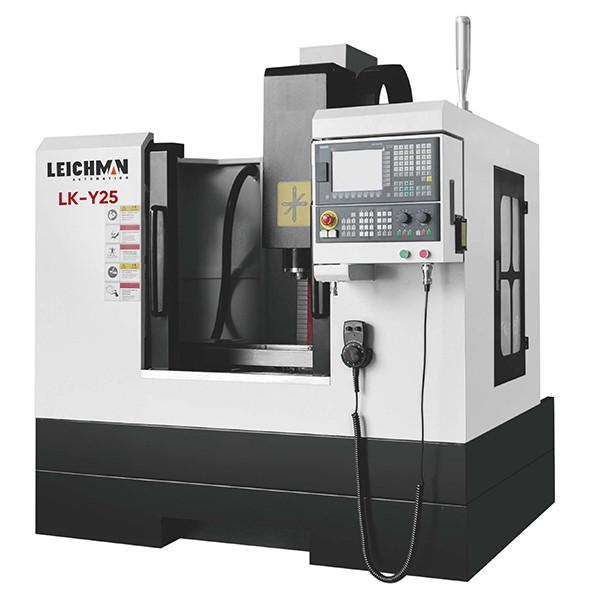

Swallow Tail Shape Hard Guideway Baratas Cnc Fresadoras Milling Machine LK-Y25
Swallow Tail Shape Hard Guideway Baratas Cnc Fresadoras Milling Machine LK-Y25
Specifications
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
100
Table size :
700×260mm
T slot(NO.width/gap) :
3/14/63mm
X/Y/Z axes travel :
400/250/280mm
X/Y/Z axes ball screw(dia/pitch) :
32/6mm
Cutting feeding speed :
6~10m/min
Rapid moving speed :
15m/min
Description

Swallow-Tail Shape Hard Guideway Baratas Cnc Fresadoras Milling Machine LK-Y25

  • Adopt mature conventional CNC milling machine structure, good stability
  • SWALLOW-TAIL shape HARD guideway
  • Without tool magazine​

​

Item Specification Unit LK-Y25

Worktable

 Table size mm 700×260
T slot(NO.width/gap) mm 3/14/63

X/Y/Z axes

 X/Y/Z axes travel mm 400/250/280
X/Y/Z axes ball screw(dia/pitch) mm 32/6
Cutting feeding speed m/min 6~10
Rapid moving speed m/min 15
Positioning precision mm ±0.01
Repeatable positioning precision mm ±0.008

Spindle

 Max.distance from spindle nose to worktable surface mm 380
Distance from spindle center to column surface mm 250
Spindle type / BT40
Spindle motor kw 2.2(inverter)
Spindle speed rpm 6000
Tool magazine Tool magazine type / N/A

Others

 Overall size(Half closed cover) mm 1510×1200×2010
Overall size(Full dosed cover) mm 1760×1840×2010
N.W.(Half/Full closed cover) kg 1300/1500

Main parts list:

ltem Brand
Ball screw bearing CHINA top-HRB P4 class/Z axes NSK
Ball screw CHINA top
Dishing spring GERMANY
Spindle unit TAIWAN
Inveter TAIWAN TECO/JAPAN YASKAWA
Booster cylinder TAIWAN
Pneumatic parts TAIWAN-AIRTAC
Electricity parts FRANCE-SCHNEIDER
Lubrication pump Joint-venture

Standard configuration:

SIEMENS 808D ADVANCED CNC controller

Half closed cover

Optional configuration:

GSK980MD CNC Controller

Step feeding motor

Full closed cover

4th axes
