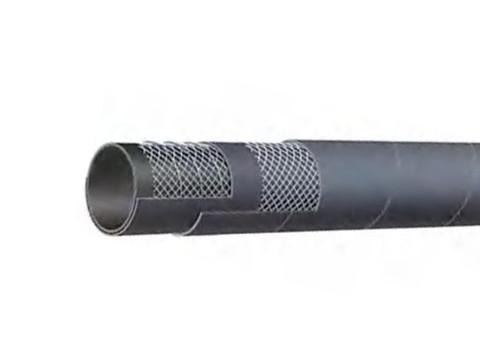

3 4 In Oil Fuel Hose , Biofuel Suction And Delivery Hose
3 4 In Oil Fuel Hose , Biofuel Suction And Delivery Hose
3 4 In Oil Fuel Hose , Biofuel Suction And Delivery Hose
3 4 In Oil Fuel Hose , Biofuel Suction And Delivery Hose
Specifications
Brand Name :
LETONE
Model Number :
LT1214
Place of Origin :
CHINA
MOQ :
100 Meter
Price :
10USD-100USD
Payment Terms :
T/T
Supply Ability :
Annual output of 1000,000 meters
Delivery Time :
Within a month
Packaging Details :
Plastic stretch film or wooden box
Applications :
For suction and discharge applications in truck and tank car transfer of gasoline, oil and Biofuels-up to E98 and B100* with up to 60% aromatic content at ambient temperature
Tube :
Black conductive synthetic rubber
Reinforcement :
High tensile textile cords and steel helix wires
Cover :
Black specially-blended neoprene-added resistance against abrasion, ozone and hydrocarbons
Working pressure :
Constant Pressure-10Bar(150PSI)
Temperature Range :
-30℃(-22°F)to +80℃(+176°F).
Description
LT1214 150PSI Black Biofuel Petroleum S&D Hose

Petroleum Hoses
In the petroleum industry, a faulty or broken hose can have extremely serious consequences. That’s why the tube and covers on Eaton industrial hoses are specifically chosen and engineered to provide maximum life even in the most demanding applications. Every industrial, hydraulic and thermoplastic hose from Eaton is easy to handle and features a combination of low to high pressures, bore sizes, weights, lengths and transfer capabilities to provide safety, performance and flexibility for every job.

Common applications include:
Transfer of petroleum products
High-pressure suction and discharge of petroleum products
Transfer and blending of petroleum products; transfer of crude oil, salt water, slurries and non-potable water

Applications: For suction and discharge applications in truck and tank car transfer of gasoline, oil and Biofuels-up to E98 and B100* with up to 60% aromatic content at ambient temperature
Tube: Black conductive synthetic rubber
Reinforcement: High tensile textile cords and steel helix wires
Cover: Black specially-blended neoprene-added resistance against abrasion, ozone and hydrocarbons
Working Pressure: Constant Pressure-10Bar(150PSI)
Temperature Range: --30℃(-22°F)to +80℃(+176°F).
Parameter
Specifications
Series I.D. (in.) I.D. (mm) O.D. (in.) O.D. (mm) Max.W.P.(psi) Vacuum HG (in.) Min.B.R. (mm) W. (kg/m)
LT1214-075 3/4 19 1.14 29 150 30 3 0.61
LT1214-100 1 25 1.38 35 150 30 4 0.76
LT1214-125 11/4 32 1.65 42 150 30 5 0.89
LT1214-150 11/2 38 1.89 48 150 30 6 1.06
LT1214-200 2 51 2.40 61 150 30 8 1.35
LT1214-250 21/2 63 2.95 75 150 27 10 2.11
LT1214-300 3 76 3.46 88 150 27 12 2.54
LT1214-400 4 102 4.57 116 150 27 16 3.54
Competitive Advantage:
