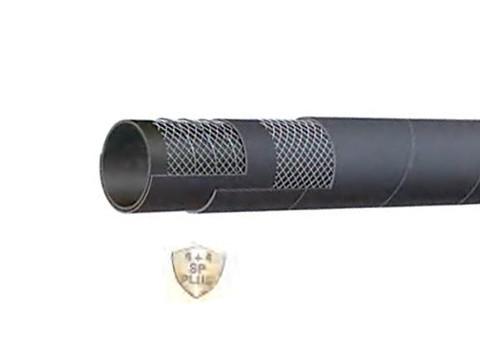

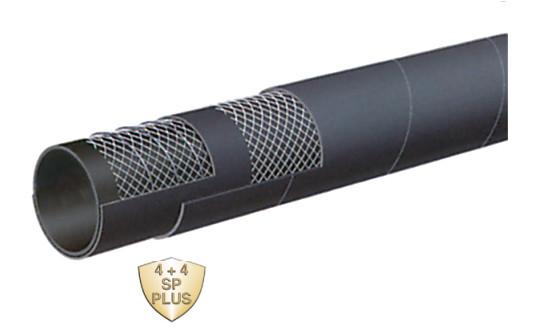

SAE J1527 B2 Corrugated Marine Wet Exhaust Hose Black NBR
SAE J1527 B2 Corrugated Marine Wet Exhaust Hose Black NBR
SAE J1527 B2 Corrugated Marine Wet Exhaust Hose Black NBR
SAE J1527 B2 Corrugated Marine Wet Exhaust Hose Black NBR
SAE J1527 B2 Corrugated Marine Wet Exhaust Hose Black NBR
SAE J1527 B2 Corrugated Marine Wet Exhaust Hose Black NBR
SAE J1527 B2 Corrugated Marine Wet Exhaust Hose Black NBR
SAE J1527 B2 Corrugated Marine Wet Exhaust Hose Black NBR
Specifications
Brand Name :
LETONE
Model Number :
LT1203
Certification :
USCG/SAE J1527 B2
Place of Origin :
CHINA
MOQ :
100 Meter
Price :
10USD-100USD
Payment Terms :
T/T
Supply Ability :
Annual output of 1000,000 meters
Delivery Time :
Within a month
Packaging Details :
Plastic stretch film or wooden box
Applications :
Fuel, oil and hydraulic fluids suction and discharge. Suitable for exhaust gas from water cooled stationary or marine diesel engines,Offers maximum flexibility
Tube :
Black NBR - exhaust gas, fuel and fire resistant
Reinforcement :
High tensile textile cords and 4 highly flexible steel helix wires
Cover :
Black NBR/PVC blend-abrasion, ozone,hydrocarbon and fire resistant
Working pressure :
Constant Pressure-5 Bar(75 PSI)
Temperature Range :
-20℃(-40°F)to +100℃(+212°F)
Description
LT1203 Marine Exhaust Hose USCG/SAE J1527 B2
Quick Detail:
Applications: Fuel, oil and hydraulic fluids suction and discharge. Suitable for exhaust gas from water cooled stationary or marine diesel engines,Offers maximum flexibility
Description:
Tube: Black NBR - exhaust gas, fuel and fire resistant
Reinforcement: High tensile textile cords and 4 highly flexible steel helix wires
Cover: Black NBR/PVC blend-abrasion, ozone,hydrocarbon and fire resistant
Working pressure: Constant Pressure-5 Bar(75 PSI)
Temperature Range: -20℃(-40°F)to +100℃(+212°F)
Specifications:
Specifications
Series I.D.(in.) I.D.(mm) O.D. (in.) O.D. (mm) Max.W.P.(psi) Vacuum HG (in.) Min.B.R.(mm) W. (kg/m)
LT1203-062 5/8 16 1.02 26 75 30 2 0.54
LT1203-075 3/4 19 1.18 30 75 30 21/4 0.65
LT1203-087 7/8 22 1.26 32 75 30 23/4 0.74
LT1203-100 1 25 1.38 35 75 30 3 0.83
LT1203-112 11/8 28 1.50 38 75 30 31/4 0.89
LT1203-125 11/4 32 1.65 42 75 30 33/4 0.97
LT1203-137 13/8 35 1.77 45 75 30 41/4 1.04
LT1203-150 11/2 38 1.89 48 75 30 41/2 1.13
LT1203-162 15/8 42 2.17 52 75 30 5 1.21
LT1203-175 13/4 45 2.16 55 75 30 51/4 1.29
LT1203-189 17/8 48 2.28 58 75 30 53/4 1.35
LT1203-200 2 51 2.40 61 75 30 6 1.47
LT1203-225 21/4 57 2.64 67 75 30 63/4 1.62
LT1203-238 23/8 60 2.76 70 75 27 7 1.86
LT1203-250 21/2 63 2.87 73 75 27 71/2 1.95
LT1203-275 23/4 70 3.11 80 75 27 81/4 2.10
LT1203-300 3 76 3.39 86 75 27 9 2.28
LT1203-350 31/2 90 3.94 100 75 27 101/2 2.84
LT1203-400 4 102 4.41 112 75 27 12 3.15
LT1203-450 41/2 115 5.00 127 75 27 131/2 4.05
LT1203-500 5 127 5.55 141 75 24 15

4.52


Competitive Advantage:
