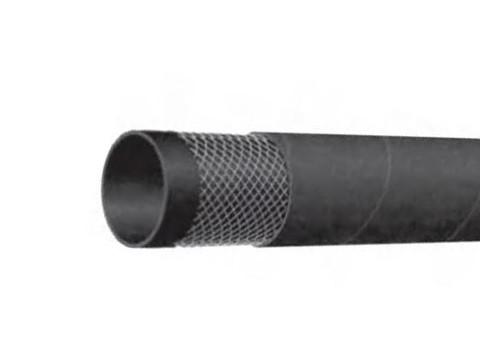

Ozone Resistant 2 Inch Radiator Hose , 5 Bar Black Braided Radiator Hose
Ozone Resistant 2 Inch Radiator Hose , 5 Bar Black Braided Radiator Hose
Ozone Resistant 2 Inch Radiator Hose , 5 Bar Black Braided Radiator Hose
Ozone Resistant 2 Inch Radiator Hose , 5 Bar Black Braided Radiator Hose
Specifications
Brand Name :
LETONE
Model Number :
LT1003
Place of Origin :
CHINA
MOQ :
100 Meter
Price :
10USD-200USD
Payment Terms :
T/T
Supply Ability :
Annual output of 1000,000 meters
Delivery Time :
1 month
Packaging Details :
Plastic stretch film or wooden box
Applications :
Radiator hose
Tube :
Black EPDM
Reinforcement :
High tensile textile cords
Cover :
Black EPDM-heat, abrasion and ozone resistant
Working Pressure :
5 Bar (75 PSI)
Temperature Range :
-40° F (-40° C) to 248° F(+120° C)
Description
LT1003 75 PSI Radiator Hose
Product Information:
Radiator steam hose (75PSI)main material is black EPDM ,which have extremely strong abrasion and ozone resistant .So it widely used in engineering machinery car, automobile application, motor vehicle application and so on.Maximum resistance pressure 5Bar,maximum resistance temperature 120℃.
Applications: Radiator hose
Tube: Black EPDM
Reinforcement: High tensile textile cords
Cover: Black EPDM-heat, abrasion and ozone resistant
Working Pressure: 5 Bar (75 PSI)
Temperature Range: -40° F (-40° C) to 248° F(+120° C)
Parameter
Series I.D. (in.) I.D. (mm) O.D. (in.) O.D. (mm) Max.W.P.(psi) L. (m) W. (kg/m)
LT1003-050X12.6 1/2 13 0.83 21 75 3.81 0.28
LT1003-050X200 1/2 13 0.83 21 75 60.96 0.28
LT1003-062X12.6 5/8 16 0.94 24 75 3.81 0.33
LT1003-062X200 5/8 16 0.94 24 75 60.96 0.33
LT1003-071X12.6 11/16 18 1.02 26 75 3.81 0.36
LT1003-071X200 11/16 18 1.02 26 75 60.96 0.36
LT1003-078X12.6 13/16 20 1.10 28 75 3.81 0.39
LT1003-078X200 13/16 20 1.10 28 75 60.96 0.39
LT1003-087X12.6 7/8 22 1.18 30 75 3.81 0.42
LT1003-087X200 7/8 22 1.18 30 75 60.96 0.42
LT1003-100X12.6 1 25 1.30 33 75 3.81 0.48
LT1003-100X200 1 25 1.30 33 75 60.96 0.48
LT1003-112X12.6 11/8 28 1.42 36 75 3.81 0.51
LT1003-112X200 11/8 28 1.42 36 75 60.96 0.51
LT1003-118X12.6 13/16 30 1.50 38 75 3.81 0.55
LT1003-118X200 13/16 30 1.50 38 75 60.96 0.55
LT1003-125X12.6 11/4 32 1.57 40 75 3.81 0.58
LT1003-125X200 11/4 32 1.57 40 75 60.96 0.58
LT1003-137X12.6 13/8 35 1.69 43 75 3.81 0.62
LT1003-137X200 13/8 35 1.69 43 75 60.96 0.62
LT1003-150X12.6 11/2 38 1.89 48 75 3.81 0.85
LT1003-150X200 11/2 38 1.89 48 75 60.96 0.85
LT1003-157X12.6 19/16 40 1.97 50 75 3.81 0.89
LT1003-157X200 19/16 40 1.97 50 75 60.96 0.89
LT1003-162X12.6 15/8 42 2.05 52 75 3.81 0.94
LT1003-162X200 15/8 42 2.05 52 75 60.96 0.94
LT1003-175X12.6 13/4 45 2.17 55 75 3.81 0.98
LT1003-175X200 13/4 45 2.17 55 75 60.96 0.98
LT1003-189X12.6 17/8 48 2.28 58 75 3.81 1.04
LT1003-189X200 17/8 48 2.28 58 75 60.96 1.04
LT1003-200X12.6 2 51 2.40 61 75 3.81 1.12
LT1003-200X200 2 51 2.40 61 75 60.96 1.12
LT1003-218X12.6 23/16 55 2.56 65 75 3.81 1.19
LT1003-225X12.6 21/4 57 2.64 67 75 3.81 1.22
LT1003-238X12.6 23/8 60 2.76 70 75 3.81 1.28
LT1003-250X12.6 21/2 63 2.87 73 75 3.81 1.34
LT1003-275X12.6 23/4 70 3.15 80 75 3.81 1.44
LT1003-300X12.6 3 76 3.39 86 75 3.81 1.55
LT1003-315X12.6 31/8 80 3.54 90 75 3.81 1.64
LT1003-354X12.6 39/16 90 4.02 102 75 3.81 2.02
LT1003-400X12.6 4 102 4.49 114 75 3.81 2.26
LT1003-450X12.6 41/2 116 5.00 127 75 3.81 2.51
LT1003-500X12.6 5 127 5.55 141 75 3.81 3.21
