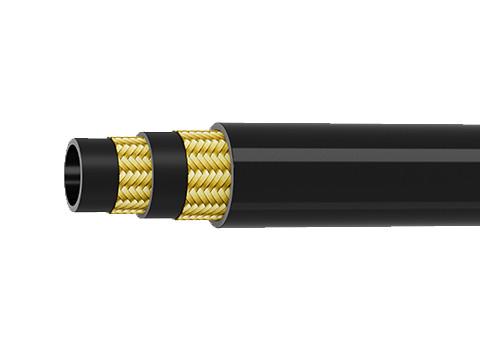

High Pressure EN 853 Steel Wire Spiral Hydraulic Hose Braided Hydraulic Hose
High Pressure EN 853 Steel Wire Spiral Hydraulic Hose Braided Hydraulic Hose
High Pressure EN 853 Steel Wire Spiral Hydraulic Hose Braided Hydraulic Hose
High Pressure EN 853 Steel Wire Spiral Hydraulic Hose Braided Hydraulic Hose
Specifications
Brand Name :
LETONE
Model Number :
LT699
Certification :
SAE 100 RA/EN 853
Place of Origin :
CHINA
MOQ :
100 Meter
Price :
1USD-20USD
Payment Terms :
T/T
Supply Ability :
Annual output of 5000,000 meters
Delivery Time :
Within a month
Packaging Details :
Plastic stretch film or carton
Application :
high pressure (over DIN / SAE standard 25%), pulse-resistant, low bending characteristics, is suitable for large construction machinery such as excavators
Tube :
synthetic rubber, suitable for biodegradable hydraulic oil
Reinforcement :
one or two braided ultra high-strength steel, to enhance the burst pressure of more than 15%. One layer braiding pulse is not less than 300,000 times, two layer braiding pulse is not less than 500,000 times
Cover :
peel-free, wear-resistant, weather-resistant (more than three years) synthetic rubber
Standard :
ISO 18752 BC/CS
Temperature Range :
-40℃~+100℃（-40℉ ~ +212℉）
Description
LT699 Artery Wire Braid Hydraulic Rubber Hose Steel Wire Braided Hydraulic Hose, Hydraulic Hose

A spiral wound hose consists of two or more sets of helically wrapped high-tensile wire that exhibits exemplary strength, making the hose very strong but also very rigid. The resistance to pressure spikes is exceptionally high, especially compared to a braided hose. However, the bend radius suffers, and spiral wound hose is highly resistant to bending. This effect is especially pronounced with 4- or 6-wire hoses, which are required from many large diameter, high-pressure applications.

LT699 Artery Wire Braid Hydraulic Rubber Hose
Applications:high pressure (over DIN / SAE standard 25%), pulse-resistant, low bending characteristics, is suitable for large construction machinery such as excavators
Tube:synthetic rubber, suitable for biodegradable hydraulic oil
Reinforcement:one or two braided ultra high-strength steel, to enhance the burst pressure of more than 15%. One layer braiding pulse is not less than 300,000 times, two layer braiding pulse is not less than 500,000 times
Cover:peel-free, wear-resistant, weather-resistant (more than three years) synthetic rubber
Temperature Range:-40℃~+100℃(-40℉ ~ +212℉)
Standard:ISO 18752 BC/CS
Parameter
SIZE (Dash) SIZE (in.) I.D.(mm) Max.W.P. Min.B.P. Min.B.R.
Min Max (MPa) (MPa) (mm)
-4 1/4—1 5.8 6.5 25 100 80
-5 5/16—1 7.7 8.5 25 100 92
-6 3/8—1 9.8 10.5 21 84 104
-8 1/2—1 12.8 13.5 18 72 144
-10 5/8—1 15.8 16.6 14 56 160
-12 3/4—1 18.8 19.8 14 56 192
-16 1—1 24.8 25.8 9 36 240
-20 1 1/4—1 31.4 33 6.3 25 400
-24 1 1/2—1 37.7 39.3 5 20 480
-32 2—1 50.4 52 4 16 560
-4 1/4—2 5.8 6.5 42 168 80
-5 5/16—2 7.7 8.5 35 168 92
-6 3/8—2 9.8 10.5 35 140 104
-8 1/2—2 12.8 13.5 28 112 144
-10 5/8—2 15.8 16.6 28 112 160
-12 3/4—2 18.8 19.8 25 100 192
-16 1—2 24.8 25.8 21 84 240
-20 1 1/4—2 31.4 33 14 56 400
-24 1 1/2—2 37.7 39.3 9 36 480
-32 2—2 50.4 52 8 32 610
From 2003, Letone has always been committed to manufacturing rubber hose for 14 years, which provides high-grade and high-end rubber hose for the field of spaceflight and maritime industry, petroleum industry and highway, and PLA etc. Just as careful and elaborate rubber hose, LETONE has now become a high-tech enterprise integrating research, production, sales and services after years of steady development, shining brilliantly in the international market as an iconic enterprise among China's rubber hose.

More about LETONE

80,000 m2 of Production Bases

By 2016, Letone has built 4 world-class manufacture bases which cover a total area of over 80,000 m2, and accomplished an annual production value of RMB 5 billion.

More about Production Strength

Globalization & Localization

To offer you more timely service and solve your puzzles during operation of production lines, we push out the strategy of "Globalization & Localization". Currently, we have set 4 overseas offices distributed over different continents. If there is any need, we can "knock your door" at once. It is a strategy just right for you.

Searching Overseas Offices

What Do We Do?

From the clear service list, you can accurately know about which services Letone will providefor you…

More about Businesses

Service You Can Rely On

Service is the soul of a brand. So, LETONE integrates service into each segment of the life cycle of every order from pre-sale, in-sale until after-sale, and offers "consultancy" and "manager" service.
