Specifications
Brand Name :
LETONE
Model Number :
LT590
Certification :
Hose execution API,ISO6807 standard
Place of Origin :
CHINA
MOQ :
100 Meter
Price :
1USD-20USD
Payment Terms :
T/T
Supply Ability :
Annual output of 10,000,000 meters
Delivery Time :
Within a month
Packaging Details :
Plastic stretch film or carton
Applications :
Suitable for conveying hydraulic fluid such as alcohol, hydraulic oil, fuel oil, lubricating oil, emulsion oil
Tube :
hoses are made of special composite rubber internals with good super high temperature resistance
Reinforbraidcement :
Multispiral high tensile super flexible steel wire
Cover :
Anti-aging synthetic rubber
Temperature range :
-40℃~+100℃(-40°F~+212°F)
Standard :
Hose execution API,ISO6807 standard
Description

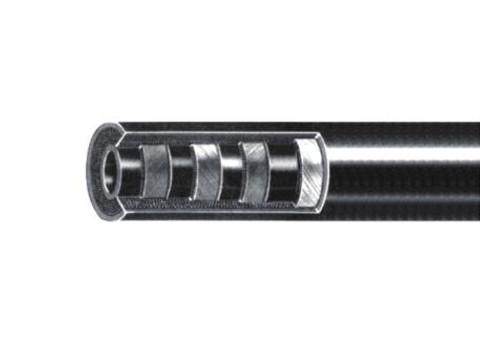

LT590 Large Size Wire Spiral Hydraulic Rubber Hose Size Wire Emulsion Oil
Features:Suitable for conveying hydraulic fluid such as alcohol, hydraulic oil, fuel oil, lubricating oil, emulsion oil
Tube:hoses are made of special composite rubber internals with good super high temperature resistance
Reinforcement:Multispiral high tensile super flexible steel wire
Cover:Anti-aging synthetic rubber
Temperature Range:-40℃~100℃(-40°F~+212°F)
Standard:Hose execution API,ISO6807 standard
Parameter
I.D. (mm) I.D. (in.) I.D. (mm) O.D.(mm) Max.W.P Min. B.P Min. B.R
Min Max Max (MPa) (MPa) (mm)
51 2-- 4 50.0 52.0 70.5 35 87.5 900
64 2 1/2-- 4 62.8 65.2 85.5 35 87.5 1100
76 3-- 4 74.6 77.4 109.0 35 87.5 1200
89 3 1/2-- 4 87.6 90.4 122.0 35 87.5 1300
127 4-- 4 125.5 128.5 135.0 35 87.5 1400
51 2--6 50.0 52.0 73.5 50 140 1000
64 2 1/2--6 62.8 65.2 92.0 50 140 1200
76 3--6 74.6 77.4 105.5 50 140 1300
89 3 1/2--6 87.6 90.4 121.5 50 140 1400
102 4--6 100.5 103.5 139.0 50 140 1600
