SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
SAE 100R15 Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose High Impulse
Specifications
Brand Name :
LETONE
Model Number :
LT589
Certification :
SAE 100R15
Place of Origin :
CHINA
MOQ :
100 Meter
Price :
1USD-20USD
Payment Terms :
T/T
Supply Ability :
Annual output of 10,000,000 meters
Delivery Time :
Within a month
Packaging Details :
Plastic stretch film or carton
Applications :
suitable for using oil base hydraulic oil of the hose
Tube :
the hose consists of a layer of heat-resistant synthetic rubber inner rubber layer
Reinforbraidcement :
ultra-high strength steel wire winding layer in alternate directions
Cover :
a layer of weather resistant synthetic rubber outer rubber layer，Heavy high pulse multilayer steel wire reinforced rubber hose
Temperature range :
-40℃~+100℃(-40°F~+212°F)
Standard :
SAE 100R15
Description

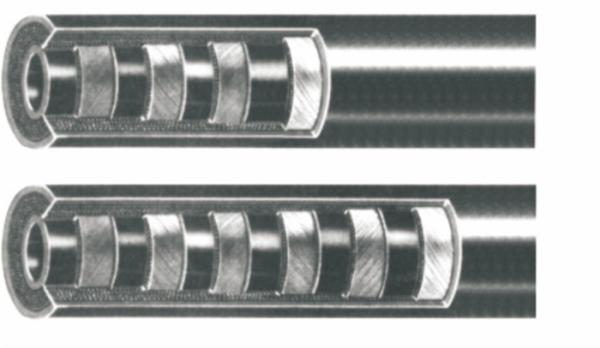

LT589 SAE 100R15 Heavy Duty High Impulse Mutiple Spiral Steel Wire Reinforced Hydraulic Rubber Hose
Application:suitable for using oil base hydraulic oil of the hose
Tube:the hose consists of a layer of heat-resistant synthetic rubber inner rubber layer
Reinforcement:ultra-high strength steel wire winding layer in alternate directions
Cover:a layer of weather resistant synthetic rubber outer rubber layer,Heavy high pulse multilayer steel wire reinforced rubber hose
Temperature range: -40℃~+121℃(-40°F~+250°F)
Parameter
I.D. (mm) I.D. (in.) I.D. (mm) O.D.(mm) Max.W.P Min. B.P Min. B.R
Min Max Max (MPa) (MPa) (mm)
10 3/8 9.3 10.1 23.3 42 84 168
13 1/2 12.3 13.5 26.8 42 84 168
19 3/4 18.6 19.8 36.1 42 84 168
25 1 25.0 26.4 42.9 42 84 168
32 1 1/4 31.4 33.0 51.5 42 84 168
38 1 1/2 37.7 39.3 59.6 42 84 168
