Floating hose for main line Floating offshore petroleum hose loading and unloading vessels transport crude oil
Floating hose for main line Floating offshore petroleum hose loading and unloading vessels transport crude oil
Specifications
Brand Name :
LETONE
Model Number :
Floating hose for main line
Place of Origin :
CHINA
MOQ :
10 Meter
Price :
100USD-500USD
Payment Terms :
T/T
Supply Ability :
Annual output of 10,000 meters
Delivery Time :
Within a month
Packaging Details :
carton
Inner rubber: :
Smooth, crude oil resistant synthetic rubber
Reinforcement: :
Multiple layers of high-strength cord. One embedded spiral main steel wire.
Outer rubber for inner tube: :
Black synthetic rubber Smooth oil resistant rubber.
Floating material: :
PE closed cell foam.
Outer layer: :
Smooth black synthetic rubber, resistant to abrasion, oil, seawater and sunlight. Spiral orange band on the surface.
Flange joint: :
ASME B 16.5 150 lb or 300 lb welding neck flat or convex as required.
Products are available in single carcass and double carcass Tests: :
All tests performed according to GMPHOM 2009 standard or special requirements of customers.
Application: :
Offshore floating oil hose is designed for transporting crude oil and liquid petroleum products between loading and unloading vessels in offshore mooring systems.
Features: :
1. Separate PE foam layer to prevent water absorption. 2. Outer rubber layer has excellent wear resistance, UV, aging and corrosive environment. 3. Easy installation and low maintenance. 4. Steel flanges are available. 5. Rated working pressure
Description

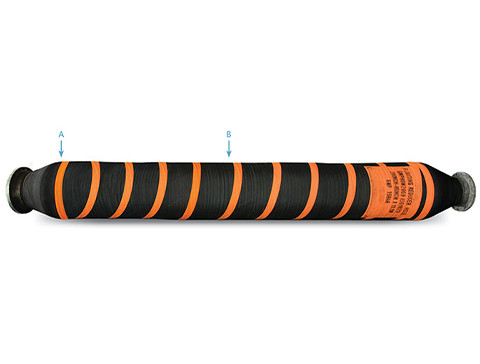

Floating hose for main line
Inner rubber: Smooth, crude oil resistant synthetic rubber
Reinforcement: Multiple layers of high-strength cord. One embedded spiral main steel wire.
Outer rubber for inner tube: Black synthetic rubber Smooth oil resistant rubber.
Floating material: PE closed cell foam.
Outer layer: Smooth black synthetic rubber, resistant to abrasion, oil, seawater and sunlight. Spiral orange band on the surface.
Flange joint: ASME B 16.5 150 lb or 300 lb welding neck flat or convex as required.
Products are available in single carcass and double carcass Tests: All tests performed according to GMPHOM 2009 standard or special requirements of customers.
Application: Offshore floating oil hose is designed for transporting crude oil and liquid petroleum products between loading and unloading vessels in offshore mooring systems.
Features: 1. Separate PE foam layer to prevent water absorption. 2. Outer rubber layer has excellent wear resistance, UV, aging and corrosive environment. 3. Easy installation and low maintenance. 4. Steel flanges are available. 5. Rated working pressure

Technical data of standard 15BAR-19BAR rated pressure one end reinforced semi-floating oil hose
Nominal Inner Diameter(mm)
 Weight in air (kg)
 Outer diameter(mm)
 Minimum bending radius
9.1m 10.7m 12.2m A B
150(6") 425 475 525 400 320 0.9(3')
200(8”) 558 623 688 420 370 1.2(4')
250(10") 809 910 1011 490 430 1.5(5')
300(12") 985 1103 1221 590 520 1.8(6')
400(16") 1446 1676 1906 740 670 2.4(8')
500(20") 2000 2262 2524 850 770 3.0(10°)
600(24") 2669 3042 3415 1010 910 3.6(12')

Note: The actual parameters are subject to the latest atlas
