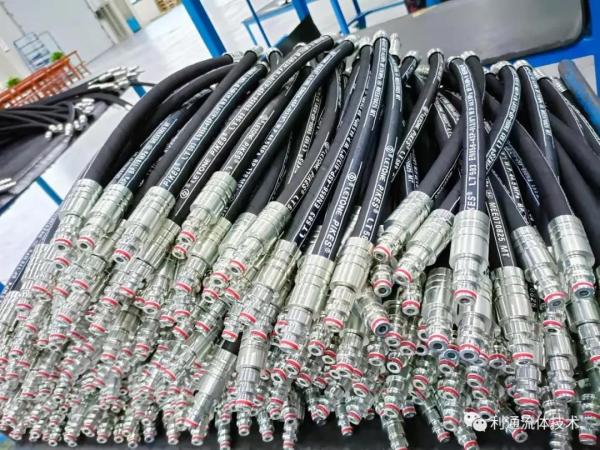

LT681-CW Car Wash Hose The Ideal Choice for Heavy-Duty and High-Pressure Applications
LT681-CW Car Wash Hose The Ideal Choice for Heavy-Duty and High-Pressure Applications
LT681-CW Car Wash Hose The Ideal Choice for Heavy-Duty and High-Pressure Applications
LT681-CW Car Wash Hose The Ideal Choice for Heavy-Duty and High-Pressure Applications
Specifications
Brand Name :
LETONE
Model Number :
LTBP681-CW
Certification :
SAE 100 RA/EN 853
Place of Origin :
CHINA
MOQ :
100 Meter
Price :
1USD-20USD
Payment Terms :
T/T
Supply Ability :
Annual output of 5000,000 meters
Delivery Time :
Within a month
Packaging Details :
Plastic stretch film or carton
Application :
Apply to fast hydrogen refueling of cell electric cars
Inner Layer :
Nylon
Reinforcement :
1-2-layre of spiral high tensile steel wire
Outer Layer :
Black or colored polyurethane
Temperaturn Range :
-40℃~+85℃(-40℉~+185℉)
Description
LTBP681-CW Car Wash Hose High Pressure Car Wash Hose, Steel Wire Braided Hydraulic Hose, Hydraulic Hose

A spiral wound hose consists of two or more sets of helically wrapped high-tensile wire that exhibits exemplary strength, making the hose very strong but also very rigid. The resistance to pressure spikes is exceptionally high, especially compared to a braided hose. However, the bend radius suffers, and spiral wound hose is highly resistant to bending. This effect is especially pronounced with 4- or 6-wire hoses, which are required from many large diameter, high-pressure applications.

LTBP681-CW Car wash hose
Application:Apply to fast hydrogen refueling of cell electric cars
Inner Layer:Nylon
Reinforcement:1-2-layre of spiral high tensile steel wire
Outer Layer:Black or colored polyurethane
Temperaturn Range:-40℃~+85℃(-40℉~+185℉)
Parameter
SIZE (in.) I.D(mm) W.D(mm) O.D(mm) Outer Layer Thickness(mm) Max.W.P P.P Min.B.P Min.B.R W.T
in Min Max Min Max Max Min Max Mpa Mpa Mpa mm kg/m
1/4-1 6.2 7.0 10.6 11.6 14.1 0.8 1.5 22.5 45.0 90.0 100 0.23
5/16-1 7.7 8.5 12.1 13.3 15.7 0.8 1.5 21.5 43.0 85.0 115 0.28
3/8-1 9.3 10.1 14.5 15.7 18.1 0.8 1.5 18.0 36.0 72.0 130 0.33
1/4-2 6.1 7.0 12.1 13.3 15.7 0.8 1.5 40.0 80.0 160.0 100 0.35
5/16-2 7.7 8.5 13.7 14.9 17.3 0.8 1.5 35.0 70.0 140.0 115 0.41
3/8-2 9.3 10.1 16.1 17.3 19.7 0.8 1.5 33.0 66.0 132.0 130 0.50
From 2003, Letone has always been committed to manufacturing rubber hose for 14 years, which provides high-grade and high-end rubber hose for the field of spaceflight and maritime industry, petroleum industry and highway, and PLA etc. Just as careful and elaborate rubber hose, LETONE has now become a high-tech enterprise integrating research, production, sales and services after years of steady development, shining brilliantly in the international market as an iconic enterprise among China's rubber hose.
