LF Space Frame Structures Steel Roof Coal bunker Storage

For more project information, please consult the website：https://www.cnxzlf.com/

This project is about the space frame roofing of coal storage for the Power Plant in Philippines.
The construction structure is in barrel shell shape, full-width is 64.572m，full-length is 175m, height is 25.957m, net span is 61m ,foundation height is 4.5mm and construction area is 11300.1m2.

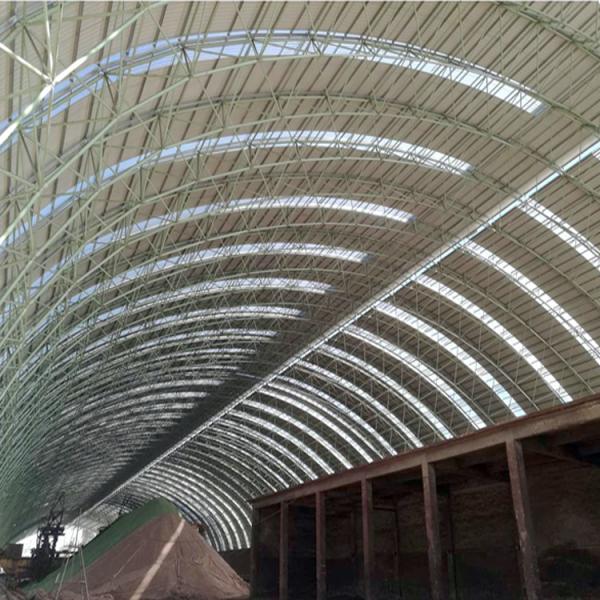

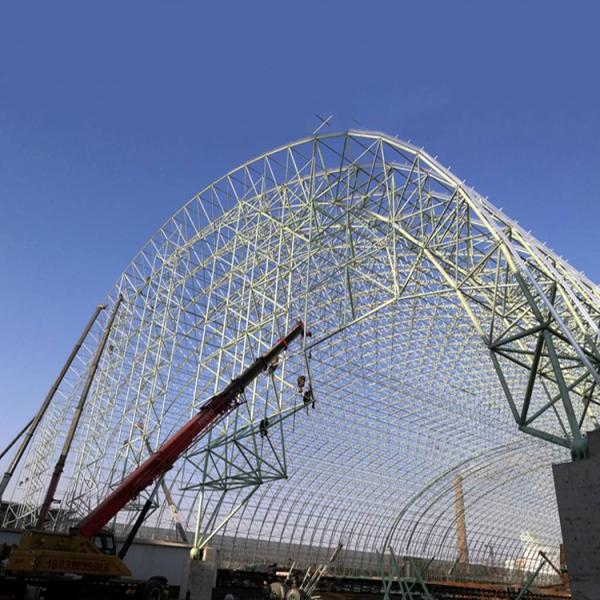

The space frame is in square pyramid bolt ball node structure and barrel shell shape, with the bearing way of bottom supporting, and total 52 column points.
The bottom foundation of the space frame is in reinforced concrete structure, the dimension of upper chord grid is about 3.5mx3.546m, and bottom is about 3.5mx3.293m, thickness of the space frame is 2.5m.

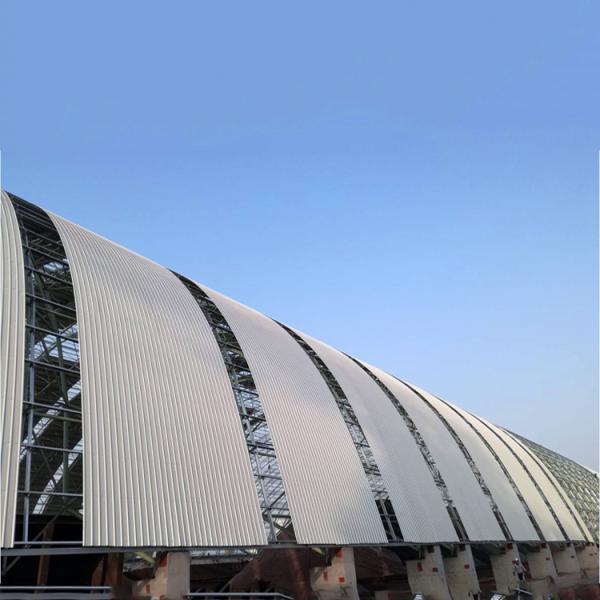

we apply cold pressed C steel on the roof purlin, and the roof panel is color painted with pressed steel plate.
Product Paramenters
Project name
Factory Price Thermal Power Plant Design Construction Building Steel Coal Storage Shed Structure
Span
61m
Height
25.957m
Foundation height
4.5m
Wind load
250kph
Seismic load
4(Z=0.4)
Steel material
Q235B/Q345B,45#,40Cr
Certificate
ISO, CE, SGS
Cladding system
Color steel sheet with PVDF finish treatment & FRP natural lighting roof sheet
Delivery period
35~40 Days
Project installation service
Engineers on-site installation guide.
Warranty
1 year
