lsaw steel line pipes for oil and gas industry
lsaw steel line pipes for oil and gas industry
lsaw steel line pipes for oil and gas industry
lsaw steel line pipes for oil and gas industry
Specifications
Place of Origin :
Cangzhou, China (Mainland)
Packaging Details :
lsaw steel line pipes packing:in bundle and then in container.
Description

1.Product Specification:

Definition: Line pipe is a type of steel pipe that is used for transporting materials through pipelines across the country
Manufacture Type : Seamless steel pipe ,welding steel pipe
Fastener type of welding steel pipe: UOE,JCOE
Standard: API 5L,ISO3183,Gread A,Gread B
Pressure class: PSL 1,PSL 2
Material: PLS 1:A/L210,B/L245,X42/L290,X46/L320,X52/L360,X56/L390,X60/L415,X65/L450,X70/L485
PLS 2:L245N/Q,L290R/N/Q,L320N/Q ,L360N/Q ,L390N/Q ,L415N/Q ,L450N/Q ,L485N/Q ,
Connection: Welding,Coupling connection,Socket connection
Type of End: Plain-end ,threaded end ,the socket end,bevelled ends
Surface Treatment: Black Painting,Galvanised (hot dipped ),Cold Galvanized ,Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement .
Length Range: Fixed:3, 5.8, 6, 12m ,SINGLE RANDOM, DOUBLE RANDOM & CUT LENGTH
Application: Transport petroleum, natural gas, oil, and water
Size Range : OD:88.9-1626mm ,WT:6-20mm
Certification: API 5CL, GOST, ISO9001, ISO14001,OHSMS18000
Testing: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Testing Report: SGS, BV etc. 3rd Party Testing Report is available .
Customized Size: Non-standard size can be customized as per customer's request.

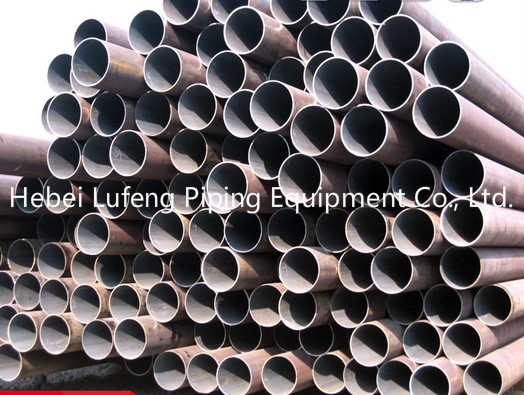

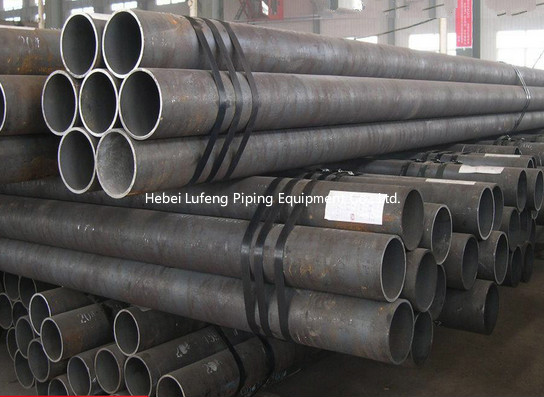

2.Product show:

lsaw steel line pipes for oil and gas industry

lsaw steel line pipes for oil and gas industry

3.Size table:

SAWL PIPES (PRESS BENDING )
Pipe O.D W.T length(m)
Min Yield Strength(Mpa)
In. Mm 245(B) 290(X42) 360(X52) 415(X60) 450(X65) 485(X70) 555(X80) 625(X90) 690(X100)
16 406 6.0-37.0 6.0-34.0 6.0-31.0 6.0-29.0 6.0-28.0 6.0-27.0 6.0-26.0 6.0-25.0 6.0-24.0

6.0-12.5m
18 457 6.0-40.0 6.0-37.0 6.0-34.0 6.0-31.0 6.0-30.0 6.0-29.0 6.0-28.0 6.0-27.0 6.0-25.0
20 508 6.0-43.0 6.0-40.0 6.0-36.0 6.0-34.0 6.0-32.0 6.0-31.0 6.0-29.0 6.0-29.0 6.0-27.0
22 559 6.0-45.0 6.0-42.0 6.0-38.0 6.0-36.0 6.0-34.0 6.0-33.0 6.0-31.0 6.0-30.0 6.0-28.0
24 610 6.0-48.0 6.0-44.0 6.0-44.0 6.0-38.0 6.0-36.0 6.0-35.0 6.0-33.0 6.0-32.0 6.0-30.0
26 660 6.0-50.0 6.0-46.0 6.0-42.0 6.0-39.0 6.0-38.0 6.0-37.0 6.0-34.0 6.0-33.0 6.0-31.0
28 711 6.0-52.0 6.0-48.0 6.0-44.0 6.0-41.0 6.0-40.0 6.0-38.0 6.0-36.0

6.0-34.0

 6.0-33.0
30 762 7.0-55.0 7.0-50.0 7.0-46.0 7.0-43.0 7.0-41.0 7.0-40.0 7.0-37.0 7.0-36.0 7.0-34.0
32 813 7.0-57.0 7.0-52.0 7.0-43.0 7.0-44.0 7.0-43.0 7.0-41.0 7.0-39.0 7.0-38.0 7.0-36.0
34 864 7.0-59.0 7.0-54.0 7.0-49.0 7.0-46.0 7.0-44.0 7.0-43.0 7.0-40.0 7.0-39.0 7.0-37.0
36 914 8.0-61.0 8.0-56.0 8.0-51.0 8.0-48.0 8.0-46.0 8.0-44.0 8.0-42.0 8.0-40.0 8.0-38.0
38 965 8.0-63.0 8.0-58.0 8.0-52.0 8.0-49.0 8.0-47.0 8.0-46.0 8.0-43.0 8.0-41.0 8.0-39.0
40 1016 8.0-64.0 8.0-60.0 8.0-54.0 8.0-51.0 8.0-49.0 8.0-47.0 8.0-44.0 8.0-42.0 8.0-40.0
42 1067 8.0-66.0 8.0-61.0 8.0-56.0 8.0-52.0 8.0-50.0 8.0-48.0 8.0-45.0 8.0-43.0 8.0-41.0
44 1118 9.0-68.0 9.0-63.0 9.0-57.0 9.0-53.0 9.0-51.0 9.0-50.0 9.0-47.0 9.0-45.0 9.0-42.0
46 1168 9.0-70.0 9.0-64.0 9.0-58.0 9.0-55.0 9.0-53.0 9.0-51.0 9.0-48.0 9.0-46.0 9.0-44.0
43 1219 9.0-71.0 9.0-66.0 9.0-60.0 9.0-56.0 9.0-54.0 9.0-52.0 9.0-49.0 9.0-47.0 9.0-45.0
52 1321 9.0-73.0 9.0-67.0 9.0-61.0 9.0-57.0 9.0-55.0 9.0-53.0 9.0-50.0 9.0-48.0 9.0-46.0
56 1422 10.0-74.0 10.0-69.0 10.0-62.0 10.0-58.0 10.0-56.0 10.0-54.0 10.0-51.0 10.0-49.0 10.0-47.0
60 1524 10.0-75.0 10.0-70.0 10.0-63.0 10.0-59.0 10.0-57.0 10.0-55.0 10.0-52.0 10.0-50.0 10.0-48.0
64 1626 10.0-75.0 10.0-70.0 10.0-63.0 10.0-59.0 10.0-57.0 10.0-55.0 10.0-52.0 10.0-50.0 10.0-48.0

Remark: Customized sizes acceptable
If you need special size of line pipe,please feel free to contact with our manager.
Perhaps you cannt make a decision now,please add our website in your bookmarks for your reference and welcome next time.


Advantages we have:
A. Experienced steel pipe products supplier: more than 30 years of manufacturing and selling experience in domestic ,13 years B2B experience in steel pipe field.
B. Alibaba golden supplier, BV inspected supplier, trade assurance supplier.
C. Factory recognized by CE/BV/ISO9001, ISO14001,OHSMS18000 and so on.
D. Our factory has been audited by customers all over the world, also our products was always inspected by the third inspection parties, such as SGS, BV etc.
E. API 5L PSL1,PSL2 ect special type of thread manufactured. Various grade for you option.
F. Provide perfect after-sales service, be responsible for each problem encountered.
