Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems
Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems
Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems
Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems
Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems
Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems
Specifications
Brand Name :
Enerforce
Model Number :
EF-SPF3500-5000ES
Certification :
CE, TUV, RoHS,UN38.3
Place of Origin :
Shenzhen,Guangdong,China
MOQ :
1
Price :
Negotiate
Payment Terms :
TT
Supply Ability :
1,000 unit/day
Delivery Time :
15-30 workdays
Packaging Details :
DG BOX
Keyword :
Grid Solar Panel Inverter
Dimension :
330*485*135mm
Input Voltage :
230 VAC
Output Voltage :
230VAC ± 5% @ 50/60Hz
Output Current :
80A/100A
Output Frequency :
50Hz/60Hz
Product Name :
Growatt Solar Inverter
Application :
Solar Power System Home
Power Range :
3kW-100kW
Battery Voltage :
48 VDC
Maximum Solar Charge Current :
80A/100A
Controller type :
MPPT Solar Controller 3KW
Warranty :
5 Years
Weight :
12kg
Description

Product Description:

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems
Growatt SPF3500~5000ES is 230VAC output voltage off-grid inverter for backup power and self-consumption application, maximum PV input voltage up to 450VDC. also it can work without battery to saving system investment cost.

Features of Growatt SPF3500~5000ES Off Grid Inverter


1. Integrated MPPT charge controller.
2. Equalization charging function.
3. Work with battery or without battery.
4. Maximum PV input voltage up to 450VDC.
5. Configurable grid or solar input priority.
6. Optional WIFI/ GPRS remote monitoring.
7. Support parallel operation for capacity expansion up to 30kW.
8. PV and Grid power the load jointly if PV energy unsufficient.
9. Flexibly schedule the Inverter charging and discharging time.

System Connection:

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems

Specification:

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems

Datasheet
SPF3500ES
SPF5000ES
Battery Voltage
48VDC
Battery Type
Lithium/Lead-acid
INVERTER OUTPUT
Rated Power
3500VA/ 3500W
5000VA/ 5000W
Parallel Capability
Yes, 6 units maximum
AC Voltage Regulation (Battery Mode)
230VAC ± 5% @ 50/60Hz
Surge Power
7000VA
10000VA
Efficiency (Peak)
93%
Waveform
Pure sine wave
Transfer Time
10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power
4500W
6000W
MPPT Range @ Operating Voltage
120VDC ~ 430VDC
Number of Independent MPP Trackers/ Strings Per MPP Tracker
1/1
Maximum PV Array Open Circuit Voltage
450VDC
Maximum Solar Charge Current
80A
100A
AC CHARGER
Charge Current
60A
80A
AC Input Voltage
230VDC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances)
Frequency Range
50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree
IP20
Dimension (W/H/D)
330/485/135mm
330/485/135mm
Net Weight
11.5kgs
12kgs
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Altitude
＜2000m
Operating Temperature
0℃~55℃
Storage Temperature
-15℃~60℃

Wiring Diagram

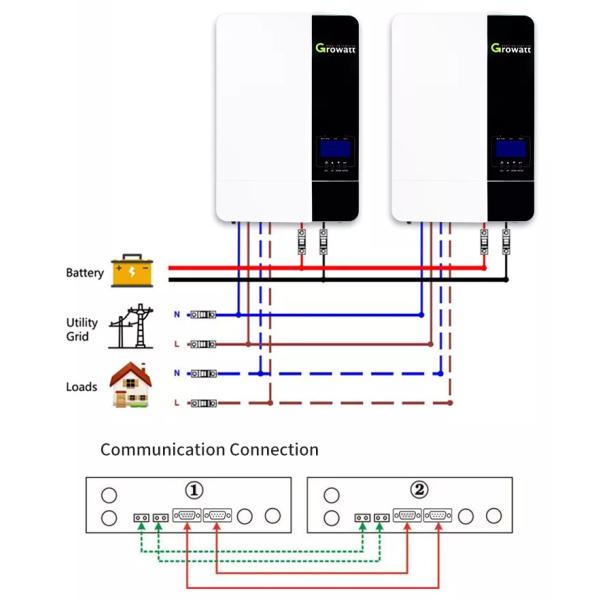

Parallel Operation in Single Phase:

Two Growatt SPF Off Grid Solar Power Inverter in parallel: Power Connection
Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel SystemsGrowatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel SystemsExplore various inverter connection examples in the user manual, including parallel connection of six solar power inverters, three inverters in a single phase, and a single inverter for the remaining two phases. For more information, please feel free to contact our sales and engineering team.

Packing and Shipping:

Growatt SPF3500ES SPF5000ES 48V Off Grid Solar Inverter for 5kVA 5kW Solar Panel Systems

FAQ:

  Q: How to install and use the solar inverter?  A: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.

Q: What if I don't have import experience ?
A: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.

Q: How is your technical support?
A: We provide online service through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.

Q: Can you get the the solar inverter customized for us ?
A: Of course, brand name, machine color, designed unique patterns available for customization.

Q: How to become your agent?
A: Contact us through Alibaba, we will give you the best price and look forward to your greetings.

Q: What can you provide?
A: Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
